Optical Sorting for bolts: Detection Limits and Validation

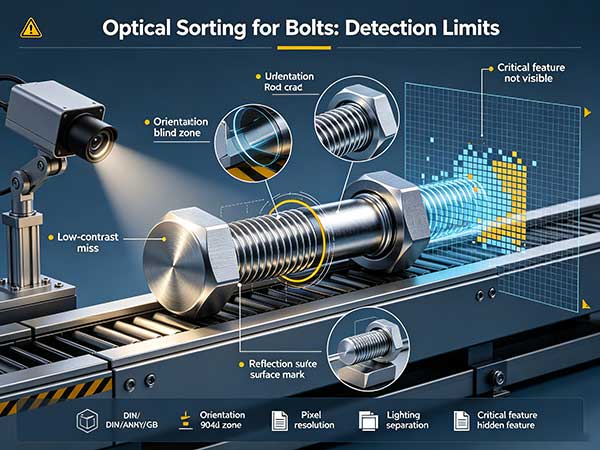

In failure reviews for automated fastener inspection, I often see a high-speed sorting line that rejects obvious defects but misses a low-contrast crack or a feature hidden by part orientation. The final damage may look like a simple broken fastener, but the engineering sequence begins earlier—with material identity, joint geometry, manufacturing integrity, installation behavior, or a changing service environment. This article develops bolt optical sorting from that mechanism rather than from marketing claims.

The verified product data are deliberately narrow: stainless steel 904L Hex bolt, M3–M160, non-standard capability, and execution to DIN, ANSI, GB, or an approved non-standard drawing. No strength class, proof load, tensile value, hardness, torque coefficient, fatigue limit, corrosion-life value, coating, tolerance set, or exact standard number is supplied. Verify every missing parameter against the manufacturer's current test report before specification.

How bolt optical sorting Controls the Load Path

A threaded connection transforms installation rotation into flank sliding, bearing-face sliding, elastic extension, and member compression. Most input energy is dissipated by friction, so identical torque readings can create different clamp forces when lubrication, surface finish, temperature, tightening speed, or mating material changes. Engineering control therefore begins with the complete assembled condition, not a torque value copied from an unrelated table.

After tightening, microscopic high points settle and interfaces conform. This embedment shortens the compressed stack and reduces bolt extension. The loss may be small in dimensional terms yet important in a stiff, short-grip joint. Retained preload, rather than installation torque alone, is the quantity connected to slip resistance and separation margin.

In the present case, the governing service action is manufacturing variation that later becomes assembly mismatch or fatigue risk. I would map that action from the clamped members through the bearing face, head-to-shank transition, shank, engaged threads, and mating component. The map should identify where contact can open, where slip can begin, and where local bending or stress concentration appears. That exercise determines which dimensions and defects are truly critical.

1. Define the unloaded geometry. Record gaps, contact faces, thread position, effective engagement, and alignment.

2. Define installation. State how clamp force is created, measured, and retained without assuming torque equals preload.

3. Apply service actions. Include manufacturing variation that later becomes assembly mismatch or fatigue risk and any redistribution among neighboring fasteners.

4. Evaluate degradation. Consider camera drift, lighting change, mixed geometry, contamination, and reject-mechanism timing as changes to mechanics, material condition, and inspectability.

5. Link evidence to decisions. Assign a drawing control or test to every credible failure mechanism.

Quality Management System certificate LY203E5074Q, issued by Shanghai Liyang Certification Co., Ltd. is the only supplied certification evidence. It indicates certification of a quality management system; current validity, site, scope, and the management-system standard referenced by the certificate must be verified before the document is used in a technical file.

Critical Features and Engineering Functions

The relevant “components” include geometric zones and mating interfaces because a bolt cannot be validated in isolation. For automated fastener inspection, the critical set is determined by the route through which manufacturing variation that later becomes assembly mismatch or fatigue risk enters the assembly. The table separates verified information from project definitions so an engineer can see where evidence is still missing.

Verify all parameters against current test reports and applicable standards before use in specifications.

A nominal material and diameter do not resolve transition geometry, thread tolerance, bearing-face relationship, or mating-thread behavior. Those features should be controlled on one drawing hierarchy with clear precedence. When a standard family is invoked, any non-standard departure must be visible rather than hidden in a general note.

Performance Parameters and Verification Evidence

I use an evidence matrix rather than a generic inspection list. Each row must state the characteristic, why it matters to bolt optical sorting, the production stage that creates it, the verification method, acceptance rule, sampling or screening frequency, reaction plan, and retained record. Values absent from the appendix remain open; they must not be completed from memory or from another fastener grade.

Verify all parameters against current test reports and applicable standards before use in specifications.

DIN, ANSI, and GB are standard families, not complete product definitions. The engineer must identify the exact document, revision, product style, thread system, tolerance class, mechanical-property requirement, and test method actually intended. An approved non-standard drawing must carry those requirements itself. “Equivalent” should not be accepted without a documented comparison of every functionally relevant clause.

For bolt optical sorting, acceptance ranges should be derived from the validated load path and assembly. If the project requires preload, fatigue, corrosion, stripPing, hardness, case depth, optical resolution, eddy-current limits, or capability targets, those numbers require current evidence. The supplied material and dimensional range cannot substitute for them.

From Pixel Resolution to Verified Detection Probability

Optical inspection should begin with a defect catalogue tied to engineering consequence. Overall length, head diameter, missing thread, and gross deformation may be easy to orient and measure. Under-head laps, root cracks, and reflective surface marks can be far harder. The required pixel size and field of view must resolve the smallest defect that the control plan expects the system to detect.

Lighting is part of the measurement. Bright-field, dark-field, backlight, and directional illumination reveal different features. A threshold tuned to a clean sample may fail when lubricant residue, passivation color, or surface texture changes. Validation should include production variation and challenge parts near the acceptance boundary.

The ejection system needs separate verification because correct classification is useless if a rejected part returns to the accepted stream. Sensor-to-eject timing, air pressure or gate response, line speed, bin management, and challenge frequency should be recorded. Hidden or metallurgical conditions require complementary methods.

Low-contrast miss as a design condition. In automated fastener inspection, the initiating mechanism is Lighting does not separate defect from normal texture. I would reproduce manufacturing variation that later becomes assembly mismatch or fatigue risk while holding the mating geometry and installation state constant, then examine the feature before and after loading. The engineering consequence is A harmful surface discontinuity passes. A useful validation record must show why the proposed control—Validate illumination with boundary samples—interrupts that physical chain rather than merely detecting the final damage.

Evidence needed for Orientation blind zone. The investigation should search specifically for evidence of The critical area is not visible in every presentation. Relevant observations may include asymmetric contact, dimensional movement, surface transfer, a localized fracture origin, or a process record that changed before the affected lot. Because Inspection coverage is incomplete, acceptance should be based on a project-defined functional test and a feature-level inspection. The preventive requirement is to Use multiple views or controlled orientation.

Boundary case: False dimension. This mode becomes important when normal production or service variation moves the assembly toward Lens calibration or datum detection drifts. The review should test the least favorable credible combination of geometry, material state, friction, and camera drift, lighting change, mixed geometry, contamination, and reject-mechanism timing. If the mechanism is active, Good parts reject or bad parts pass. The specification should therefore require evidence to Control calibration and reference artifacts and should define containment when that evidence fails.

Inspection logic for Ejection failure. Final visual appearance alone cannot confirm whether Classification and physical removal are not synchronized. I would select an inspection method that observes the initiating feature, a process signal that identifies when it can be created, and a lot record that limits exposure. The reason is direct: Known rejects enter accepted product. The control plan should state how to Challenge the complete reject path, who reacts, and which product remains on hold.

Field interpretation of Mixed recipe. When the assembly is returned from service, the analyst should compare the damaged part with unused parts from the same lot and with neighboring fasteners. The working hypothesis is Wrong product program is selected at changeover; the expected consequence is Thresholds no longer match geometry. Installation records, contact marks, fracture location, material evidence, and process genealogy should either support or reject that hypothesis. Corrective action must Use recipe verification and line clearance.

Thread rolling displaces material between dies and can create a smooth work-hardened surface with favorable grain flow. The outcome depends on blank diameter, die match, penetration, alignment, lubrication, material state, rolling speed, and tool wear. Incorrect blank size can overfill the crest or leave incomplete flanks; misalignment can produce lead error and uneven flank contact.

If rolling is proposed after heat treatment for a high-strength part, hardness and remaining ductility require explicit verification. Beneficial root compression is possible, but hard material, damaged dies, excessive penetration, surface decarburization from an earlier operation, or poor lubrication can generate cracks. That process claim cannot be transferred automatically to the verified 904L product.

In-process load monitoring can identify a short cutoff, missing transfer, tool chip, lubrication change, or gradual die wear when the signal is correlated with physical product evidence. A force or force–displacement envelope should be developed from controlled trials and reviewed by station. One broad alarm band may conceal a local event that matters at only one stage.

When an alarm occurs, the reaction plan must stop or segregate product back to the last verified point, identify the tool and material lots involved, and require a documented release decision. Monitoring reduces exposure only when containment is faster than production can mix suspect parts with accepted output.

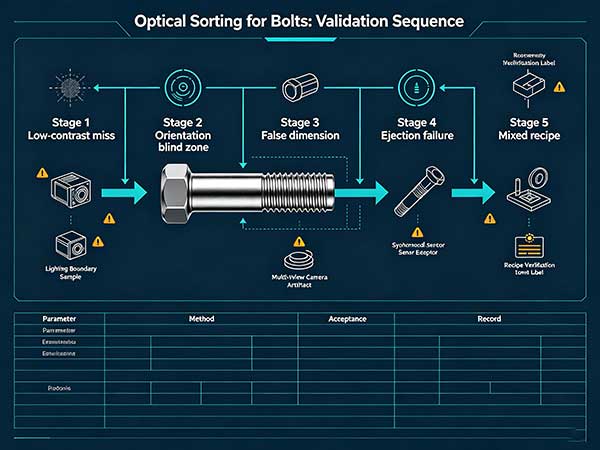

Project-Specific Validation Sequence for bolt optical sorting

1. Stage 1 — Low-contrast miss: prepare an assembly or production sample in which Lighting does not separate defect from normal texture. Apply or simulate manufacturing variation that later becomes assembly mismatch or fatigue risk, then document whether A harmful surface discontinuity passes. Release the stage only when the evidence shows that the design or process will Validate illumination with boundary samples.

2. Stage 2 — Orientation blind zone: prepare an assembly or production sample in which The critical area is not visible in every presentation. Apply or simulate manufacturing variation that later becomes assembly mismatch or fatigue risk, then document whether Inspection coverage is incomplete. Release the stage only when the evidence shows that the design or process will Use multiple views or controlled orientation.

3. Stage 3 — False dimension: prepare an assembly or production sample in which Lens calibration or datum detection drifts. Apply or simulate manufacturing variation that later becomes assembly mismatch or fatigue risk, then document whether Good parts reject or bad parts pass. Release the stage only when the evidence shows that the design or process will Control calibration and reference artifacts.

4. Stage 4 — Ejection failure: prepare an assembly or production sample in which Classification and physical removal are not synchronized. Apply or simulate manufacturing variation that later becomes assembly mismatch or fatigue risk, then document whether Known rejects enter accepted product. Release the stage only when the evidence shows that the design or process will Challenge the complete reject path.

5. Stage 5 — Mixed recipe: prepare an assembly or production sample in which Wrong product program is selected at changeover. Apply or simulate manufacturing variation that later becomes assembly mismatch or fatigue risk, then document whether Thresholds no longer match geometry. Release the stage only when the evidence shows that the design or process will Use recipe verification and line clearance.

This sequence should use the selected size, actual mating components, production surface state, and the environmental condition described as camera drift, lighting change, mixed geometry, contamination, and reject-mechanism timing. It is not a substitute for required project standards; it is the mechanism map used to choose the correct verified methods. Acceptance values remain project-specific wherever the supplied appendix is silent.

The manufacturing and inspection layers must be connected. A forming simulation predicts risk but does not release product; sectioning proves selected samples but does not screen an entire lot; process monitoring detects signal changes but requires defect correlation; optical and eddy-current sorting each have limited detection mechanisms. The control plan should combine them only where each layer has a defined question and a validated boundary.

These distinctions also prevent invalid transfer of technology claims. Thread rolling after heat treatment, induction hardening, multi-station cold forming, SPC, optical sorting, and eddy-current screening can all be useful, but none automatically applies to every 904L hex bolt. The selected process must be compatible with the material, geometry, required performance, and inspection evidence for the actual project.

Common Failures and Mechanism-Based Root Causes

Verify all parameters against current test reports and applicable standards before use in specifications.

When a high-speed sorting line that rejects obvious defects but misses a low-contrast crack or a feature hidden by part orientation, I would preserve the assembly before cleaning or disassembly. Bearing marks, thread position, fretting, corrosion deposits, fracture orientation, tool records, and neighboring fastener condition can distinguish the initiating mechanism from the final overload. A replacement with a larger or nominally stronger bolt may shift the damage elsewhere if the true cause is misalignment, prying, settlement, galling, or an unverified mating thread.

Root cause should be written as a physical chain. “Poor quality” is not enough; “a folded surface created during preforming remained at the under-head transition and initiated a cyclic crack after joint separation introduced bending” is testable. The evidence plan can then confirm or reject each link in the chain.

Engineering Specification Checklist

Load and Geometry Definition

• Model manufacturing variation that later becomes assembly mismatch or fatigue risk through the real stack used in automated fastener inspection.

• Select one geometry within M3–M160 and define every functional datum, transition, thread, and contact face.

• Require current finished-lot evidence for stainless steel 904L; do not accept a generic stainless description.

• Set project values for strength, proof behavior, hardness, fatigue, stripping, and deformation because the appendix supplies none.

Controls Derived From the Failure Review

• Low-contrast miss: verify whether Lighting does not separate defect from normal texture; require the production or design control to Validate illumination with boundary samples.

• Orientation blind zone: verify whether The critical area is not visible in every presentation; require the production or design control to Use multiple views or controlled orientation.

• False dimension: verify whether Lens calibration or datum detection drifts; require the production or design control to Control calibration and reference artifacts.

• Ejection failure: verify whether Classification and physical removal are not synchronized; require the production or design control to Challenge the complete reject path.

• Mixed recipe: verify whether Wrong product program is selected at changeover; require the production or design control to Use recipe verification and line clearance.

Installation and Service Evidence

• Reproduce the actual mating thread, bearing surface, lubricant state, speed, and joint stack during installation validation.

• Test the effect of camera drift, lighting change, mixed geometry, contamination, and reject-mechanism timing instead of assigning durability from the alloy name.

• Define an as-installed baseline, inspection access, interval logic, reuse decision, and response to a failed member of the joint.

Document Control

• Name the exact DIN, ANSI, or GB document and revision, or release a complete non-standard drawing.

• Check Quality Management System certificate LY203E5074Q, issued by Shanghai Liyang Certification Co., Ltd. for the current site, scope, status, and referenced management-system standard.

• Keep all unverified numeric properties out of the specification until a current report is approved.

Share your project parameters for a technical review.

Evaluating Manufacturer Engineering Capability

Ningbo yi teng construction machinery CO,LTD states that it controls raw materials and product quality and offers stainless steel 904L hex bolt in M3–M160 and non-standard forms; the supplied certification is Quality Management System certificate LY203E5074Q, issued by Shanghai Liyang Certification Co., Ltd. The current product page should be checked for the selected drawing, test reports, and exact execution-standard reference before specification.

A credible engineering review separates design responsibility from manufacturing evidence. The designer defines load, environment, joint geometry, and acceptance intent; the manufacturer demonstrates that its route can repeatedly achieve the controlled characteristics. Any assumption between those two roles should be made explicit before production.

I also check whether inspection methods match the defect mechanism. Optical sorting cannot validate internal grain flow, and a hardness reading cannot prove dimensional conformity. Multiple methods should be combined only where each has a defined purpose and verified detection boundary.

For bolt optical sorting, the audit should follow one real lot. Select a finished container and trace backward through release, inspection, process settings, tool identity, material receipt, and drawing approval. Then select one recorded process alarm or nonconformance and trace forward through containment, correction, verification, and disposition. That two-direction review tests whether the system works under normal and abnormal conditions.

Frequently Asked Questions About bolt optical sorting

How small a bolt defect can an optical sorter reliably detect?

Start with the physical possibility of Lighting does not separate defect from normal texture. In automated fastener inspection, a valid answer requires a trial or calculation that reproduces manufacturing variation that later becomes assembly mismatch or fatigue risk, followed by inspection of the feature linked to Low-contrast miss. The supplied product facts contain no numeric limit for this decision.

Why must the ejection mechanism be validated separately?

Use the exact controlled drawing and name the applicable DIN, ANSI, GB, or approved non-standard requirement. The concern is that The critical area is not visible in every presentation, which means an isolated catalogue value or generic gauge result cannot settle the question. Evidence should demonstrate how to Use multiple views or controlled orientation.

Can optical sorting replace metallographic sectioning?

Look for the initiating evidence before interpreting the final symptom. If Lens calibration or datum detection drifts, the expected engineering consequence is Good parts reject or bad parts pass. Material, process, installation, and lot records should be compared with physical witness marks before corrective action is selected.

How should challenge parts represent borderline defects?

Treat the condition as a defined edge case. The stated M3–M160 range and 904L material do not establish performance when Classification and physical removal are not synchronized. The drawing and validation plan must show how the design will Challenge the complete reject path under camera drift, lighting change, mixed geometry, contamination, and reject-mechanism timing.

Submit the controlled drawing, joint stack, mating-thread details, service loads, environment, and installation method for an engineering specification review.
