bolt Thread Engagement: Flank Load and StripPing Failure

In failure reviews for tapped housings and Nut-based assemblies, I often see a joint with adequate nominal bolt diameter but insufficient effective engagement in the weaker mating material. The final damage may look like a simple broken fastener, but the engineering sequence begins earlier—with material identity, joint geometry, manufacturing integrity, installation behavior, or a changing service environment. This article develops bolt thread engagement from that mechanism rather than from marketing claims.

The verified product data are deliberately narrow: stainless steel 904L Hex bolt, M3–M160, non-standard capability, and execution to DIN, ANSI, GB, or an approved non-standard drawing. No strength class, proof load, tensile value, hardness, torque coefficient, fatigue limit, corrosion-life value, coating, tolerance set, or exact standard number is supplied. Verify every missing parameter against the manufacturer's current test report before specification.

How bolt thread engagement Controls the Load Path

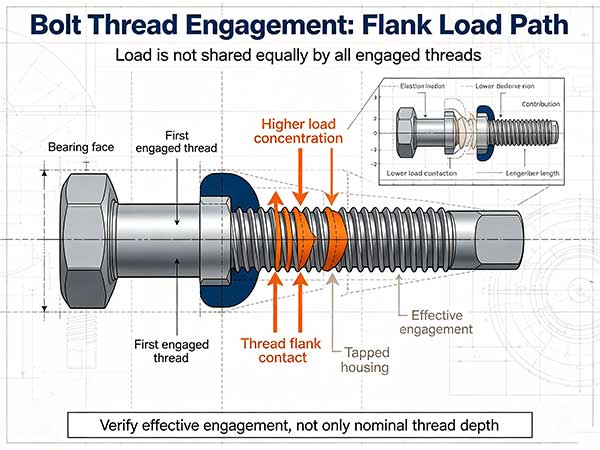

Threaded load transfer is nonuniform. Elastic deformation causes the first engaged threads to carry more load than threads farther from the bearing surface. Lead error, flank-angle variation, pitch-diameter mismatch, incomplete form, or a damaged root can intensify that concentration. Adequate nominal engagement does not guarantee adequate load sharing unless both internal and external threads are controlled as a pair.

The runout and the first fully formed thread deserve special attention because section geometry and contact conditions change over a short distance. When cyclic axial force combines with misalignment, the highest local stress may occur at a transition rather than at the smallest nominal area assumed in a simple hand calculation.

In the present case, the governing service action is axial preload distributed unevenly across engaged flanks. I would map that action from the clamped members through the bearing face, head-to-shank transition, shank, engaged threads, and mating component. The map should identify where contact can open, where slip can begin, and where local bending or stress concentration appears. That exercise determines which dimensions and defects are truly critical.

1. Define the unloaded geometry. Record gaps, contact faces, thread position, effective engagement, and alignment.

2. Define installation. State how clamp force is created, measured, and retained without assuming torque equals preload.

3. Apply service actions. Include axial preload distributed unevenly across engaged flanks and any redistribution among neighboring fasteners.

4. Evaluate degradation. Consider tolerance mismatch, blind-hole depth, debris, coating, and assembly misalignment as changes to mechanics, material condition, and inspectability.

5. Link evidence to decisions. Assign a drawing control or test to every credible failure mechanism.

Quality Management System certificate LY203E5074Q, issued by Shanghai Liyang Certification Co., Ltd. is the only supplied certification evidence. It indicates certification of a quality management system; current validity, site, scope, and the management-system standard referenced by the certificate must be verified before the document is used in a technical file.

Critical Features and Engineering Functions

The relevant “components” include geometric zones and mating interfaces because a bolt cannot be validated in isolation. For tapped housings and nut-based assemblies, the critical set is determined by the route through which axial preload distributed unevenly across engaged flanks enters the assembly. The table separates verified information from project definitions so an engineer can see where evidence is still missing.

Verify all parameters against current test reports and applicable standards before use in specifications.

A nominal material and diameter do not resolve transition geometry, thread tolerance, bearing-face relationship, or mating-thread behavior. Those features should be controlled on one drawing hierarchy with clear precedence. When a standard family is invoked, any non-standard departure must be visible rather than hidden in a general note.

Performance Parameters and Verification Evidence

I use an evidence matrix rather than a generic inspection list. Each row must state the characteristic, why it matters to bolt thread engagement, the production stage that creates it, the verification method, acceptance rule, sampling or screening frequency, reaction plan, and retained record. Values absent from the appendix remain open; they must not be completed from memory or from another fastener grade.

Verify all parameters against current test reports and applicable standards before use in specifications.

DIN, ANSI, and GB are standard families, not complete product definitions. The engineer must identify the exact document, revision, product style, thread system, tolerance class, mechanical-property requirement, and test method actually intended. An approved non-standard drawing must carry those requirements itself. “Equivalent” should not be accepted without a documented comparison of every functionally relevant clause.

For bolt thread engagement, acceptance ranges should be derived from the validated load path and assembly. If the project requires preload, fatigue, corrosion, stripping, hardness, case depth, optical resolution, eddy-current limits, or capability targets, those numbers require current evidence. The supplied material and dimensional range cannot substitute for them.

Effective Engagement Versus Nominal Thread Depth

Effective engagement excludes chamfers, incomplete threads, runout, debris-filled depth, and any portion that does not carry flank load. A blind hole can appear deep enough while providing too few full threads. The internal material may also be weaker than the bolt, shifting the governing failure from tensile fracture to thread shear or pullout.

Load is not shared equally by every thread. Elastic interaction places higher demand near the engagement entrance. Tolerance, lead, flank angle, and local deformation can reduce the number of threads carrying meaningful force. Functional gauging confirms assembly compatibility but does not by itself establish stripping capacity.

The verified appendix identifies possible DIN, ANSI, GB, and non-standard execution, but no exact thread series, tolerance class, or mating component. Those details, along with verified mechanical properties, are required before engagement can be calculated.

Internal-thread stripping as a design condition. In tapped housings and nut-based assemblies, the initiating mechanism is Effective engagement or parent-material strength is inadequate. I would reproduce axial preload distributed unevenly across engaged flanks while holding the mating geometry and installation state constant, then examine the feature before and after loading. The engineering consequence is Clamp force collapses progressively. A useful validation record must show why the proposed control—Calculate using verified mating properties—interrupts that physical chain rather than merely detecting the final damage.

Evidence needed for External-thread stripping. The investigation should search specifically for evidence of Bolt thread section or flank contact is insufficient. Relevant observations may include asymmetric contact, dimensional movement, surface transfer, a localized fracture origin, or a process record that changed before the affected lot. Because External crests shear, acceptance should be based on a project-defined functional test and a feature-level inspection. The preventive requirement is to Control profile and strength evidence.

Boundary case: Bottoming. This mode becomes important when normal production or service variation moves the assembly toward Bolt end reaches blind-hole bottom before seating. The review should test the least favorable credible combination of geometry, material state, friction, and tolerance mismatch, blind-hole depth, debris, coating, and assembly misalignment. If the mechanism is active, Torque rises without clamp force. The specification should therefore require evidence to Check depth and length stack and should define containment when that evidence fails.

Inspection logic for Partial engagement. Final visual appearance alone cannot confirm whether Chamfer, runout, or debris removes full threads. I would select an inspection method that observes the initiating feature, a process signal that identifies when it can be created, and a lot record that limits exposure. The reason is direct: Load concentrates on fewer flanks. The control plan should state how to Define and inspect effective engagement, who reacts, and which product remains on hold.

Field interpretation of Cross-threading. When the assembly is returned from service, the analyst should compare the damaged part with unused parts from the same lot and with neighboring fasteners. The working hypothesis is Axis misalignment damages leading threads; the expected consequence is Load sharing becomes irregular. Installation records, contact marks, fracture location, material evidence, and process genealogy should either support or reject that hypothesis. Corrective action must Provide alignment and assembly controls.

Selective induction hardening uses localized electromagnetic heating followed by quenching and tempering. A complete process definition includes coil geometry, coupling distance, frequency, delivered power, heating time or traverse speed, quench timing, quench distribution, temper condition, and part orientation. These variables control the surface-to-core thermal path and therefore the hardness gradient, case shape, distortion, and transition microstructure.

A single surface-hardness reading does not validate the process. A sectioned hardness traverse, declared case-depth criterion, metallography, crack inspection, dimensional comparison, and core-property evidence are needed. Material suitability must be confirmed before induction hardening is specified; no such process or hardness values are supplied for the verified 904L hex bolt.

Optical sorting is strongest for visible, orientable features such as overall length, head presence, gross diameter, obvious thread interruption, or surface marks with adequate contrast. Detection probability depends on camera resolution, lens distortion, lighting geometry, part orientation, algorithm thresholds, and the reject mechanism. A validation set must contain known defects near the proposed acceptance boundary, not only obvious demonstration samples.

Hidden laps, internal fill, subsurface material variation, and heat-treatment condition require other methods. Optical equipment should be treated as one layer in a control plan, with periodic challenge parts confirming that the complete detection and ejection path still functions.

Project-Specific Validation Sequence for bolt thread engagement

1. Stage 1 — Internal-thread stripping: prepare an assembly or production sample in which Effective engagement or parent-material strength is inadequate. Apply or simulate axial preload distributed unevenly across engaged flanks, then document whether Clamp force collapses progressively. Release the stage only when the evidence shows that the design or process will Calculate using verified mating properties.

2. Stage 2 — External-thread stripping: prepare an assembly or production sample in which Bolt thread section or flank contact is insufficient. Apply or simulate axial preload distributed unevenly across engaged flanks, then document whether External crests shear. Release the stage only when the evidence shows that the design or process will Control profile and strength evidence.

3. Stage 3 — Bottoming: prepare an assembly or production sample in which Bolt end reaches blind-hole bottom before seating. Apply or simulate axial preload distributed unevenly across engaged flanks, then document whether Torque rises without clamp force. Release the stage only when the evidence shows that the design or process will Check depth and length stack.

4. Stage 4 — Partial engagement: prepare an assembly or production sample in which Chamfer, runout, or debris removes full threads. Apply or simulate axial preload distributed unevenly across engaged flanks, then document whether Load concentrates on fewer flanks. Release the stage only when the evidence shows that the design or process will Define and inspect effective engagement.

5. Stage 5 — Cross-threading: prepare an assembly or production sample in which Axis misalignment damages leading threads. Apply or simulate axial preload distributed unevenly across engaged flanks, then document whether Load sharing becomes irregular. Release the stage only when the evidence shows that the design or process will Provide alignment and assembly controls.

This sequence should use the selected size, actual mating components, production surface state, and the environmental condition described as tolerance mismatch, blind-hole depth, debris, coating, and assembly misalignment. It is not a substitute for required project standards; it is the mechanism map used to choose the correct verified methods. Acceptance values remain project-specific wherever the supplied appendix is silent.

The manufacturing and inspection layers must be connected. A forming simulation predicts risk but does not release product; sectioning proves selected samples but does not screen an entire lot; process monitoring detects signal changes but requires defect correlation; optical and eddy-current sorting each have limited detection mechanisms. The control plan should combine them only where each layer has a defined question and a validated boundary.

These distinctions also prevent invalid transfer of technology claims. Thread rolling after heat treatment, induction hardening, multi-station cold forming, SPC, optical sorting, and eddy-current screening can all be useful, but none automatically applies to every 904L hex bolt. The selected process must be compatible with the material, geometry, required performance, and inspection evidence for the actual project.

Common Failures and Mechanism-Based Root Causes

Verify all parameters against current test reports and applicable standards before use in specifications.

When a joint with adequate nominal bolt diameter but insufficient effective engagement in the weaker mating material, I would preserve the assembly before cleaning or disassembly. Bearing marks, thread position, fretting, corrosion deposits, fracture orientation, tool records, and neighboring fastener condition can distinguish the initiating mechanism from the final overload. A replacement with a larger or nominally stronger bolt may shift the damage elsewhere if the true cause is misalignment, prying, settlement, galling, or an unverified mating thread.

Root cause should be written as a physical chain. “Poor quality” is not enough; “a folded surface created during preforming remained at the under-head transition and initiated a cyclic crack after joint separation introduced bending” is testable. The evidence plan can then confirm or reject each link in the chain.

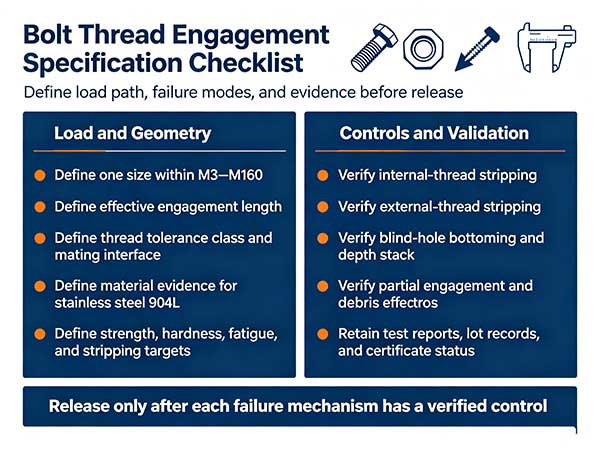

Engineering Specification Checklist

Load and Geometry Definition

• Model axial preload distributed unevenly across engaged flanks through the real stack used in tapped housings and nut-based assemblies.

• Select one geometry within M3–M160 and define every functional datum, transition, thread, and contact face.

• Require current finished-lot evidence for stainless steel 904L; do not accept a generic stainless description.

• Set project values for strength, proof behavior, hardness, fatigue, stripping, and deformation because the appendix supplies none.

Controls Derived From the Failure Review

• Internal-thread stripping: verify whether Effective engagement or parent-material strength is inadequate; require the production or design control to Calculate using verified mating properties.

• External-thread stripping: verify whether Bolt thread section or flank contact is insufficient; require the production or design control to Control profile and strength evidence.

• Bottoming: verify whether Bolt end reaches blind-hole bottom before seating; require the production or design control to Check depth and length stack.

• Partial engagement: verify whether Chamfer, runout, or debris removes full threads; require the production or design control to Define and inspect effective engagement.

• Cross-threading: verify whether Axis misalignment damages leading threads; require the production or design control to Provide alignment and assembly controls.

Installation and Service Evidence

• Reproduce the actual mating thread, bearing surface, lubricant state, speed, and joint stack during installation validation.

• Test the effect of tolerance mismatch, blind-hole depth, debris, coating, and assembly misalignment instead of assigning durability from the alloy name.

• Define an as-installed baseline, inspection access, interval logic, reuse decision, and response to a failed member of the joint.

Document Control

• Name the exact DIN, ANSI, or GB document and revision, or release a complete non-standard drawing.

• Check Quality Management System certificate LY203E5074Q, issued by Shanghai Liyang Certification Co., Ltd. for the current site, scope, status, and referenced management-system standard.

• Keep all unverified numeric properties out of the specification until a current report is approved.

Share your project parameters for a technical review.

Evaluating Manufacturer Engineering Capability

Ningbo yi teng construction machinery CO,LTD states that it controls raw materials and product quality and offers stainless steel 904L hex bolt in M3–M160 and non-standard forms; the supplied certification is Quality Management System certificate LY203E5074Q, issued by Shanghai Liyang Certification Co., Ltd. The current product page should be checked for the selected drawing, test reports, and exact execution-standard reference before specification.

For any manufacturer, I look for a documented chain from material receipt to final release. The useful evidence is not a list of machines; it is the link between drawing characteristics, process controls, inspection methods, reaction plans, and retained records. Engineering changes must be assessed against the joint failure mechanisms they can influence.

Tooling revision, material-lot identity, operator or program identification, outsourced-process control, calibration, and nonconformance segregation should be recoverable from one finished lot. A supplier that cannot reconstruct that route cannot perform narrow containment after a field event.

For bolt thread engagement, the audit should follow one real lot. Select a finished container and trace backward through release, inspection, process settings, tool identity, material receipt, and drawing approval. Then select one recorded process alarm or nonconformance and trace forward through containment, correction, verification, and disposition. That two-direction review tests whether the system works under normal and abnormal conditions.

Frequently Asked Questions About bolt thread engagement

What counts as effective bolt thread engagement?

Start with the physical possibility of Effective engagement or parent-material strength is inadequate. In tapped housings and nut-based assemblies, a valid answer requires a trial or calculation that reproduces axial preload distributed unevenly across engaged flanks, followed by inspection of the feature linked to Internal-thread stripping. The supplied product facts contain no numeric limit for this decision.

Can a go/no-go gauge prove stripping resistance?

Use the exact controlled drawing and name the applicable DIN, ANSI, GB, or approved non-standard requirement. The concern is that Bolt thread section or flank contact is insufficient, which means an isolated catalogue value or generic gauge result cannot settle the question. Evidence should demonstrate how to Control profile and strength evidence.

Why does a blind hole need a depth tolerance stack?

Look for the initiating evidence before interpreting the final symptom. If Bolt end reaches blind-hole bottom before seating, the expected engineering consequence is Torque rises without clamp force. Material, process, installation, and lot records should be compared with physical witness marks before corrective action is selected.

Which material property controls pullout from a tapped housing?

Treat the condition as a defined edge case. The stated M3–M160 range and 904L material do not establish performance when Chamfer, runout, or debris removes full threads. The drawing and validation plan must show how the design will Define and inspect effective engagement under tolerance mismatch, blind-hole depth, debris, coating, and assembly misalignment.

Submit the controlled drawing, joint stack, mating-thread details, service loads, environment, and installation method for an engineering specification review.
