bolts Assembly Recovery: Traceability and Restart Validation

2026-10-04 09:00:00

A tightening station can repeat its saved recipe while assembling the wrong coated fastener or restarting an interrupted sequence on a partially relaxed joint. A successful tool cycle does not establish that the attachment is ready for service. I evaluate bolts through one controlled record linking physical identity, active process, assembled condition, and inspection. This article addresses mixed work, changes, interruption recovery, and the evidence required for release.

1 How bolts Work — Core Operating Principles

The mechanical process starts with contact and continues through elastic tension and member compression. The head and mating threads must be correctly seated before controlled tightening establishes the intended force couple. A saved recipe controls a tool, but the bolt and surrounding members determine how the input becomes preload. Recipe identity is therefore meaningful only when it is linked to the actual physical configuration at the station.

I treat the complete sequence as part of that configuration. In a multi-bolt attachment, tightening one location can affect compression at another through member movement or elastic interaction. An interruption can leave some positions seated, others partly loaded, and the stack settled into a different geometry. Returning to the interrupted instruction does not automatically reproduce the same starting state as an uninterrupted trial.

The station observes signals such as torque, rotation, time, and tool status. These describe the process through the sensing arrangement and its references. They do not independently establish component identity, thread engagement, or retained compression. I connect each displayed state to the physical condition it measures and to the release decision it is intended to support. A status flag whose meaning is uncertain cannot serve as a mechanical acceptance criterion.

Recovery changes the connection if the bolt is removed, replaced, relubricated, or tightened again. Surface contact can change between cycles, and member settling can alter retained force even without rotation. A recovery procedure must establish what condition is being recovered and which action is permitted. I validate that procedure on representative interrupted assemblies rather than treating every restart as an ordinary first installation.

No technical standards or verified specification appendix were supplied. I assert no certificate, mandatory test clause, numerical tool limit, or acceptable recovery interval. Verify every parameter against current manufacturer reports and the approved assembled-joint validation before specification.

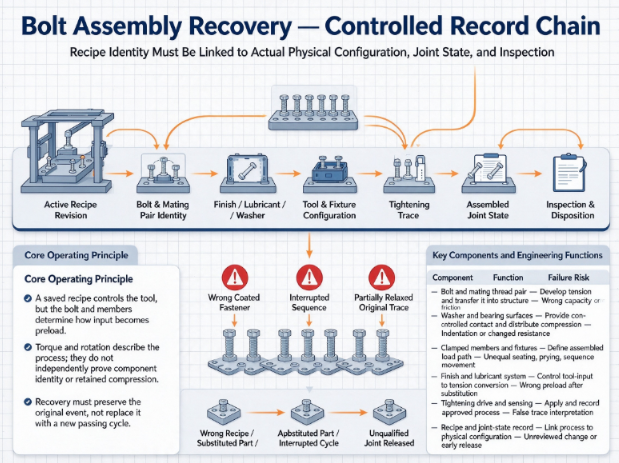

2 Key Components and Engineering Functions

I distinguish retained mechanical components from process elements that establish and observe their state. Both need controlled identities. A station can be calibrated and still run an unsuitable recipe, while a correct recipe can operate on a physically incorrect mating assembly.

Verify all parameters against current test reports and applicable standards before use in specifications.

The record must identify where the trace came from. A portable repair tool, a production station, and an instrumented qualification fixture can have different drive compliance and sensing arrangements. Their outputs are not interchangeable merely because they use the same displayed units.

Physical markings and records also need a defined purpose. A lot identifier links material and processing history; it does not necessarily identify the installed location or a later repair. I retain both identities when they influence interpretation. Recovery must preserve the association rather than overwriting the original trace with a new passing cycle.

3 Performance Parameters and Testing Standards

I define release evidence around the actual assembled state. Test procedures must distinguish process conformity from mechanical conformity. An in-window trace can support acceptance only within the configuration and recovery condition on which its meaning was validated. Missing values remain open items rather than being supplied by a previous machine recipe.

Verify all parameters against current test reports and applicable standards before use in specifications.

Fault simulation needs controlled boundaries. I select representative interruptions and component changes that test the intended recovery logic without interpreting them as completed production work. The report records the original state, the intervention, and the resulting joint condition. A recovery trial is accepted for the tested scenario, not for every possible interruption.

4 Protection Mechanisms and Engineering Logic

Protection starts with identity control because the mechanical interpretation of a trace depends on the physical assembly. I link the active recipe to bolt geometry, mating material, effective engagement, finish, lubricant, washer, bearing surface, fixture, and drive configuration. A revision label on the controller alone cannot establish that relationship. The specification must state which changes require renewed validation and which are covered by existing evidence.

I then link the trace to the actual torque-to-preload conversion. Torque measures rotational resistance, while useful compression depends on elastic bolt stretch and correct seating. Different friction conditions or prevailing resistance can change their relationship. For mixed work, a recipe qualified on a dry part cannot silently approve a lubricated or recoated part. I compare simultaneous torque, angle, and clamp-force data for the intended configuration, preserving scatter rather than judging only a mean result.

Reuse and recovery require special attention to that relationship. Removing and retightening a bolt can change contact texture, coating, lubricant distribution, and locking behavior. The original first-cycle recipe may then establish a different tension. A second passing tool cycle does not prove that the joint returned to its qualified state. I establish whether reuse is permitted and what evidence supports the recovered process, rather than prescribing a universal extra turn or additional torque.

Thread engagement is another condition a trace cannot identify completely. A substitute bolt may reach a blind-hole bottom, place its runout in the mating region, or provide less complete overlap because the stack thickness changed. Damaged internal threads can produce abnormal resistance or inadequate capacity. I compare effective engagement and bottom clearance with the actual mating material and verify capacity where required. Physical inspection must establish the geometry that the recipe assumes.

Bearing support also changes during interruption. A washer may have embedded, a painted interface may have settled, or a bracket may have moved before work resumed. Those changes can reduce compression without Nut rotation. If the process simply continues from the next instruction, the joint may never revisit the condition used to validate its sequence. I monitor the retained state and define which recovery actions restore an approved condition and which require disassembly or rejection.

Multi-bolt interaction makes this distinction critical. The sequence can shift contact, bend a member, or redistribute force among completed positions. I validate the entire sequence using the actual stiffness and support arrangement. Recovery trials should identify the interrupted location and phase because different phases can leave different force distributions. A result from one convenient stopPing point cannot establish acceptance for every mid-sequence interruption.

Impact and fatigue evidence must follow the recovered connection into service. A joint with reduced compression can slip or separate earlier and develop a different cyclic stress history. In blade, track, or crusher attachments, this can introduce bearing impact and local bending. I compare original and recovered joints under the representative load sequence, checking relative motion, retained force, and damage. A passing restart trace cannot replace assembled duty validation.

Finished material and surface-treatment history remain relevant during replacement. A physically similar bolt can carry a different cleaning, coating, or heat-treatment history. Susceptible material, hydrogen exposure, and sustained tension can create delayed fracture even after an apparently correct restart. I retain lot-linked hardness, process, applicable relief, and approved delayed-loading evidence for the replacement configuration. Corrosion appearance and immediate survival do not establish that boundary.

Feedback integrity is part of the evidence system. Calibration and verified references are needed to interpret torque or angle, and communication faults must not silently associate one trace with another location. I specify how incomplete records, sensor faults, and uncertain position identity are handled. A blank or reconstructed record cannot be treated as measured compliance merely because the machine later resumes operation.

The final protection is an explicit recovery disposition. The record states whether the joint was accepted, reworked under an approved procedure, or rejected, and why. Original measurements remain available alongside the recovery evidence. Near a limit, uncertainty and the possibility of concealed damage must be resolved by an approved decision method. This creates a defensible path from interruption to release without claiming that software completion itself establishes mechanical integrity.

5 Common Engineering Failures and Root Cause Analysis

When I examine a restart failure, I preserve both the original and subsequent traces. The final passing cycle may be the least informative record if it overwrote the interrupted event. I compare physical identity, process state, mating damage, and the service response before assigning a root cause.

Wrong-recipe assembly occurs when a saved process is associated with a different finish, lubricant, geometry, or mating material. The consequence is incorrect preload or an unqualified capacity boundary despite repeatable station motion. Prevention requires verified physical-to-recipe association and a change review that covers every affected interface.

Mid-sequence force redistribution occurs when an interruption allows the stack to settle or move before the remaining positions are tightened. The consequence is unequal retained compression across an apparently completed bolt group. Prevention requires representative interruption trials and a recovery method validated for the actual sequence phase.

False recovery after reuse occurs when the same bolt is retightened with an unchanged recipe despite altered friction or locking resistance. The consequence can be excess or insufficient tension. Prevention requires an explicit reuse policy supported by the recovered assembly's measured torque-to-clamp-force response.

Bottoming after substitution occurs when a replacement length or tip geometry removes the required blind-hole clearance. The consequence is high resistance with inadequate bracket compression. Prevention requires physical geometry verification and independent seating or clamp-force evidence for the substituted configuration.

Damaged-seat acceptance occurs when a new passing trace conceals indentation, cracked bearing support, or damaged threads left by the original event. The consequence is later relaxation or reduced capacity. Prevention requires inspection of the recovered physical feature as well as its process trace.

Lost event identity occurs when data from one location, tool, or part are assigned to another after a communication or workflow interruption. The consequence is an acceptance record that cannot establish what was actually measured. Prevention requires verified record association and a defined disposition for incomplete or uncertain evidence.

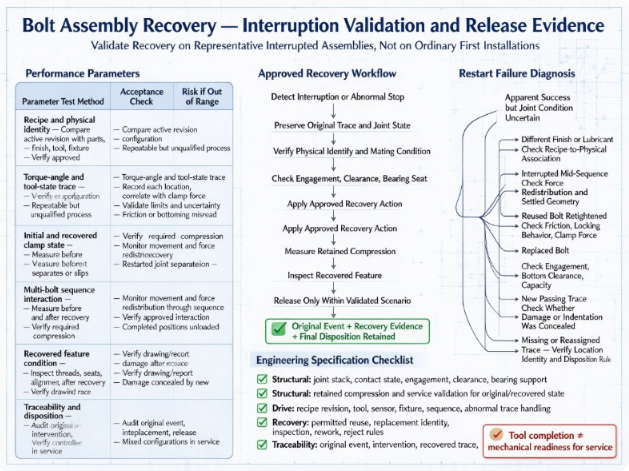

6 Engineering Specification Checklist

I organize restart requirements as mechanical specification categories. The key is to identify the state being recovered and the evidence authorizing release. A general instruction to repeat the cycle is insufficient when the first cycle has changed friction, geometry, or load distribution.

• Structural: identify the complete joint, member stack, approved contact state, effective engagement, bottom clearance, and bearing support.

• Structural: define required retained compression and assembled service validation for original, interrupted, and approved recovered conditions.

• Drive specifications: associate the active recipe revision with tool, sensor references, socket, fixture, physical fasteners, finishes, lubricants, and tightening sequence.

• Drive specifications: define abnormal trace handling, incomplete cycle identification, location association, and evidence required before restarting.

• Environmental: assess temperature, contamination, corrosion, storage, and interrupted exposure that can alter friction or material condition.

• Safety standards: confirm project requirements through technical approval; no standard number or certification is asserted here.

• Recovery: specify permitted reuse, replacement identity, inspection of damaged features, approved rework methods, and reject conditions from verified evidence.

• Traceability: preserve the original event, intervention, recovered trace, measured joint state, configuration revision, and final disposition as one controlled record.

I also define responsibility for resolving uncertain records. Mechanical release cannot depend on an operator guessing whether a missing trace was a communication problem or an incomplete tightening cycle. The approved response must state how the physical joint is assessed without erasing the evidence of the original event.

A change to the recovery procedure itself requires review. If a new action changes contact state, component reuse, or sequence, the old qualification may no longer cover it. Validation should demonstrate the resulting joint condition and service response rather than only confirming that the instruction can be executed.

7 Evaluating Manufacturer Engineering Capability

Ningbo yi teng construction machinery CO,LTD is described in the supplied company information as producing machinery fasteners and serving overseas markets. The bolts product page should identify the configurations and validation records that apply to an assembly rather than imply approval for every replacement or recovery condition.

I evaluate whether engineering personnel can maintain physical lot identity, recipe revision, process traces, and assembled inspection results in a common record. A useful capability review includes representative fault trials and a demonstrated response to changed friction or damaged mating parts. Reporting must distinguish proposed methods from completed test evidence.

The organization also needs to preserve unresolved events and state the boundary of an approved recovery. Component quality alone cannot authorize a customer's changed fixture or tightening recipe. No current certification is established by the supplied technical-standards field; verify any required certification before specification.

FAQ: bolts Engineering Validation

Can bolts be accepted from a successful tool cycle alone?

Only when that cycle has been validated for the actual physical configuration and release condition.

Tool completion does not independently identify the parts or prove retained compression. I correlate the trace with representative joint measurements. Uncertain identity or recovery state requires a separate disposition.

Can an interrupted tightening sequence simply continue?

Only if the continuation method is validated for the resulting joint state and interruption phase.

Member settling and elastic interaction can change force at completed positions. I assess the whole bolt group rather than only the next instruction. The approved recovery must preserve the required retained condition.

Should the original trace be replaced after successful rework?

No, retain the original event together with the rework and release evidence.

Overwriting it prevents mechanism-based review and can conceal repeated defects. I link both records to the same physical assembly and its changed components. A passing recovered trace does not explain the original failure by itself.

Can a replacement bolt use the previous recipe?

Only when its material, geometry, finish, lubricant, and mating condition are covered by validation.

Physical similarity does not establish equal friction or capacity. Check effective engagement and bottom clearance as well as the assembly response. Changes outside the approved boundary require engineering review.

What confirms that a recovered attachment is ready for service?

A controlled record must demonstrate acceptable physical condition, retained joint state, and coverage by approved service validation.

The evidence should include inspected mating features and the actual recovery trace. For uncertain cases, measurement capability and damage detection must support the release decision. Software completion alone does not establish that mechanical state.
