bolts Thermal Cycling: Preload and Joint Movement Control

2026-10-05 09:00:00

A machinery mounting joint can remain tight during a cold inspection yet lose compression as its housing warms faster than its fasteners, then return with a different seating condition after shutdown. I assess bolts through the complete temperature cycle rather than accepting an ambient torque check. This article examines differential expansion, transient gradients, retained preload, thermal movement, and the evidence needed to specify the installed connection.

1 How bolts Work — Core Operating Principles

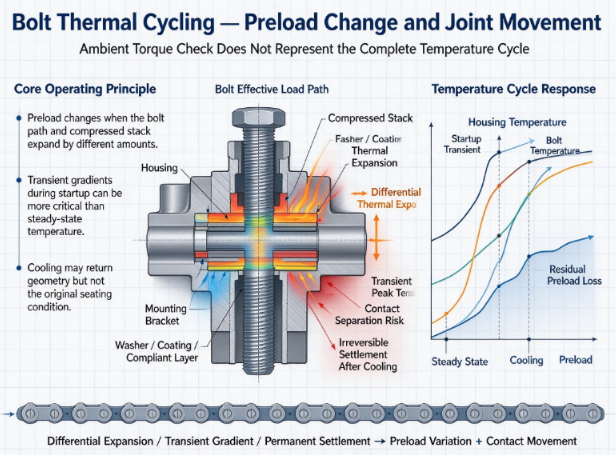

My starting point is the temperature at which the connection is assembled. Tightening stretches the fastener and compresses the members between its bearing surfaces. Those elastic deformations establish the initial preload. The bolt and clamped stack then behave as interacting elastic elements. Their relative stiffness determines how additional displacement changes tension and compression, provided the contact remains closed and the materials remain within the approved mechanical regime.

When temperature changes, each component develops its own free thermal expansion. The relevant comparison is between expansion along the effective bolt load path and expansion through the compressed stack. The stack may include a steel bracket, a cast housing, washers, paint, or a sealing layer. If these parts would expand by different amounts when unrestrained, the assembled connection imposes compatibility and changes the internal force. The direction of the preload change must be established for the actual material arrangement.

Temperature is also distributed rather than uniform. A fastener exposed to airflow can lag behind a housing heated from within. A mounting foot close to a heat source can behave differently from one farther away. During startup, the most demanding condition may occur before the equipment reaches its final operating temperature. I therefore distinguish the transient temperature field from the steady state instead of treating the highest recorded surface temperature as the only relevant condition.

Cooling does not necessarily reverse every change. Elastic expansion can be reversible, but indentation, coating compression, creep, or local yielding can leave permanent displacement. The connection may return to its original temperature with less preload than it had before operation. A cold inspection performed only after the first cycle can conceal the temporary peak tension that occurred during heating and the contact movement that occurred during cooling.

No technical standards or verified specification values were supplied. Numerical temperatures, preload limits, material properties, cycle counts, and inspection boundaries must therefore be verified against current manufacturer test reports and the approved joint analysis before specification.

2 Key Components and Engineering Functions

I identify the components that contribute meaningful thermal expansion, mechanical compliance, or irreversible settlement. A thin layer can matter even when it contributes little structural strength because it lies within the compressed load path. Material descriptions must therefore include the condition relevant to the assembled joint, rather than stopPing at the name of the bolt alloy.

Verify all parameters against current test reports and applicable standards before use in specifications.

Temperature sensing equipment is part of the validation arrangement, although it is not a structural member. Sensor location, attachment, response, and environmental exposure determine what the reading represents. A sensor on the outside of a housing may not represent the temperature of the threaded boss or the inner compressed region. I record the physical location of every measurement and evaluate whether its response is adequate for the transient being studied.

Fixtures also need review. A laboratory support that restrains expansion differently from the installed machine can create a different load path. Representative testing must preserve the relevant support flexibility, contact geometry, and heating route. Otherwise, the reported thermal response belongs to the test fixture rather than the intended assembly.

3 Performance Parameters and Testing Standards

I establish the acceptance window by combining the assembly state, thermal response, and service loading. The lower retained-preload boundary must support the intended contact condition when external loads act. The upper boundary must protect the bolt, engaged threads, bearing seats, and surrounding members during the most demanding transient. Neither boundary can be filled from the supplied information.

Verify all parameters against current test reports and applicable standards before use in specifications.

I retain the full history rather than only the maximum temperature and final preload. The critical comparison may involve tension and temperature at the same instant. Instrument zero drift, temperature sensitivity, and acquisition timing must be considered when correlating those signals. A measurement system that changes its response during heating can create an apparent mechanical trend that the joint did not experience.

The approved procedure must also define how the assembly is conditioned before testing. Previous tightening, earlier heat exposure, coating cure, and member settlement can change the starting state. Qualification needs an identified initial condition and a justified relationship between that condition and production installation.

4 Protection Mechanisms and Engineering Logic

The primary protection is maintaining a mechanically acceptable force state across the entire thermal history. This requires more than choosing a material described as heat resistant. I compare free expansion of the effective fastener path with expansion of the compressed members, then account for their stiffness and load introduction. The model must identify whether heating increases tension, reduces compression, or produces different effects at different stages of the cycle.

Nonuniform heating can produce bending as well as axial force change. A bracket heated more strongly on one side can rotate or alter its bearing contact. That rotation may add local prying to a bolt even when the average stack expansion appears favorable. I examine the temperature field together with structural deformation. A uniform-temperature calculation is acceptable only when its assumptions are supported by the installed thermal response or shown to bound the actual condition.

The initial torque-to-preload relationship establishes the starting point for every later calculation. Dry threads, applied oil, a different coating, or a previously tightened assembly can produce different tension at the same tool setting. I require simultaneous torque and tension evidence for the actual mating combination, including the measured spread across specimens. A thermal analysis based on nominal preload cannot protect a connection if production installation creates an unqualified starting distribution.

Lubricant compatibility must remain distinct from assembly friction. A lubricant may provide an acceptable initial response yet change after heat exposure, contamination, or storage. That change matters especially if maintenance involves retightening or replacement. I do not assume the original installation setting remains valid for a hot, cooled, or previously operated fastener. Each approved assembly state needs evidence relating tool input to the intended mechanical outcome.

Thread engagement must carry the largest force developed during the cycle. Usable length excludes chamfers, incomplete turns, runout, and overlap lost through the installed geometry. The capacity comparison must include the actual material of the nut or tapped housing at the relevant temperature. A steel bolt can remain within its approved tension while the surrounding internal threads deform. Increasing the bolt's nominal strength does not establish the capacity of that mating interface.

Thermal movement can also alter the support around the threaded region. A thin boss connected to a flexible wall may distort, while a blind hole can react an improperly selected bolt tip before the head establishes compression. I inspect effective engagement, bottom clearance, surrounding section, and bearing support as one assembled geometry. Representative destructive testing must identify the limiting mechanism and the temperature condition, rather than reporting only a failure force.

Irreversible settlement requires a separate assessment from differential expansion. A coating or bearing surface may compress during the first heated period, shortening the clamped stack. The fastener can then return to ambient temperature with reduced elastic stretch. A locking feature can restrain rotation without preventing that loss. I therefore monitor residual force and seat deformation independently from witness marks or nut position.

Impact and fatigue validation must use the relevant thermally conditioned state. Excavator attachments, crusher supports, and commercial vehicle brackets may encounter cyclic loads while warm or during repeated startup and shutdown. Reduced compression can permit slip, while increased tension can alter the mean stress. I examine load direction, grip, shear-plane location, and interface movement before comparing the conditioned assembly with an ambient duty test. Temperature exposure is not simply an unrelated environmental check.

Material processing adds another boundary. Susceptible finished material, hydrogen introduced during cleaning or coating, and sustained tension can create delayed damage. Thermal qualification does not automatically establish that this risk has been controlled. I retain finished hardness evidence, coating-process identity, applicable relief records, and approved sustained-load verification. No baking schedule or material threshold is specified without current evidence for the actual configuration.

The protection strategy ends with a controlled change boundary. A different housing material, washer, coating, assembly temperature, heat source, or support arrangement can change the response. I identify which changes invalidate the qualified model or test. Acceptance then remains tied to a known assembly and operating envelope rather than a general statement that the fastener survived one heated sample.

5 Common Engineering Failures and Root Cause Analysis

I investigate thermal failures by comparing measurements at equivalent states, while preserving the transient history. A loose fastener after cooling may have experienced excessive tension during heating before losing preload. The final condition alone cannot establish which mechanism occurred first.

Transient overload occurs when the compressed members expand relative to the effective fastener path and develop an excessive force before temperatures stabilize. The consequence can be bolt elongation, thread damage, or bearing indentation. Prevention requires measured gradients, a checked compatibility model, and validation of the upper mechanical boundary during startup.

Temporary contact separation occurs when differential movement reduces compression enough for service loading to open the interface. The consequence is changed stiffness, impact contact, and possible misalignment. Prevention requires validation of the lower retained-preload boundary at the actual load and temperature combination, rather than at ambient conditions alone.

Permanent preload loss occurs when coatings, washers, or bearing seats settle during heated operation. The consequence remains after the temperatures return to their initial state. Prevention requires compatible support surfaces, conditioning representative of production, and measurement of cooled residual force.

Thermally induced prying occurs when uneven heating bends a bracket or shifts contact toward an edge. The consequence is localized fastener demand that an axial-only model misses. Prevention requires assessment of temperature distribution, member distortion, and actual contact evolution.

Hot mating-thread deformation occurs when the internal material cannot carry the thermally increased fastener force through its usable engagement. The consequence can be progressive flank damage followed by stripping. Prevention requires temperature-relevant mating material evidence and an effective-engagement capacity comparison.

Misleading preload measurement occurs when sensor response or reference length changes with temperature without adequate correction. The consequence is an acceptance decision based on apparent force movement. Prevention requires validation of the measuring method across the test environment and correlation with an independent physical observation where necessary.

6 Engineering Specification Checklist

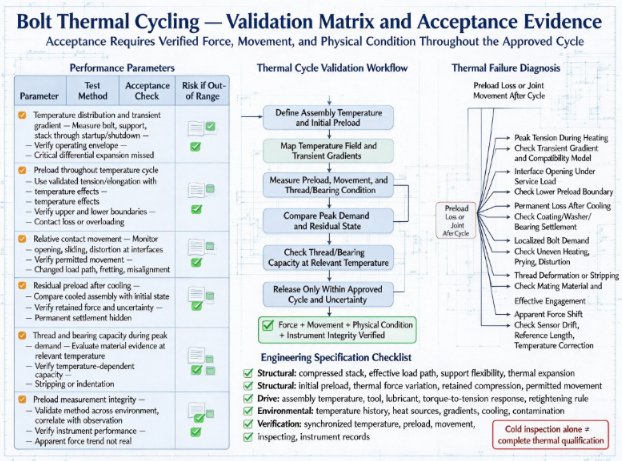

I organize the thermal specification around the installed joint and its transition states. Each requirement must identify the configuration covered and the evidence supporting its boundary. Missing numerical values remain verification items until current reports and approved analysis establish them.

• Structural: define the complete compressed stack, effective bolt load path, support flexibility, and relevant thermal expansion behavior.

• Structural: verify initial preload, thermal force variation, retained compression, thread capacity, and bearing support against current evidence.

• Structural: identify permitted separation, sliding, distortion, and residual settlement for each operating phase.

• Drive specifications: define the assembly temperature, tool configuration, rotating interface, lubricant condition, and validated torque-to-tension response.

• Drive specifications: establish the approved treatment of previously heated, removed, or retightened components.

• Environmental: define temperature histories, heat sources, gradients, cooling conditions, contamination, and corrosion exposure from verified operating information.

• Safety standards: confirm applicable project requirements through approval; no standard designation or certification is established here.

• Verification: retain synchronized temperature, preload, movement, inspection, and instrument-performance records for representative assemblies.

The test plan should distinguish transient acceptance from final residual acceptance. Both can be necessary because a connection may exceed an upper boundary during heating and later fall below a lower boundary after cooling. Retightening during a trial must be recorded as an intervention, with its effect on the qualification history assessed explicitly.

I also identify the inspection state required in service. A measurement made on a warm machine cannot automatically be compared with an ambient acceptance value. The procedure must establish the temperature condition, measuring reference, and decision method associated with the approved limit.

7 Evaluating Manufacturer Engineering Capability

Ningbo yi teng construction machinery CO,LTD is described in the supplied information as producing machinery fasteners and custom components. The bolts product page should distinguish configurations supported by temperature-dependent evidence from those described only by nominal material and geometry.

I evaluate whether engineering personnel can correlate material properties, measured thermal histories, and assembled-joint response. The useful capability is the ability to identify where a model is representative and where testing is needed. Reports should retain specimen identity, finished condition, assembly method, instrument limitations, and the observed failure mechanism.

A manufacturer also needs controlled records for coating, lubrication, heat treatment, and component changes that affect the starting state. Generic equipment capability does not establish performance for a particular mounting joint. No current certification is confirmed by the supplied technical-standards field; verify any required certification before specification.

FAQ: bolts Under Temperature Cycling

Can bolts lose preload without rotating during a temperature cycle?

Yes, differential movement and permanent settlement can change preload without fastener rotation.

I distinguish reversible elastic response from indentation, coating compression, and creep. Nut position alone cannot establish retained force. Measurements must identify the thermal state and the residual condition after cooling.

Is the highest operating temperature always the critical condition?

No, a transient gradient can produce the critical force before steady operation is reached.

The housing and fastener may heat at different rates. I correlate their temperatures with preload and contact movement throughout startup and shutdown. A steady-state result does not establish the complete cycle response.

Can an ambient torque value be used for hot retightening?

Only when the hot assembly condition has been assessed and validated.

Temperature and previous contact history can affect friction and the force already present. Additional torque does not identify the remaining elastic reserve. Verify the approved procedure against current joint evidence before use.

Does a stronger bolt solve thermal preload loss?

Not necessarily, because the controlling mechanism may lie in the compressed members or their interfaces.

A coating can settle, a seat can indent, or a bracket can distort independently of bolt tensile strength. I assess the complete force path and thermal compatibility. The correction must address the demonstrated mechanism.

What confirms acceptance after thermal conditioning?

Acceptance requires verified force, movement, and physical condition throughout the approved cycle and after return.

The measuring method must account for temperature effects and uncertainty. Thread and bearing capacity remain separate boundaries. Current test reports must establish the numerical limits used in the specification.

Share your project parameters for a technical review.
