A cutting-edge joint can pass a torque audit yet slip during excavation because friction consumed the tightening input before sufficient clamp force developed. I evaluate bolts by separating tool torque, initial preload, and retained preload under service loading. This article explains how to qualify friction conditions, prevent joint opening, verify mating-thread capacity, and investigate delayed fracture without treating a tightening record as proof of connection reliability.

1 How bolts Work — Core Operating Principles

A tightened bolt acts as an elastic tension member. Rotation advances the mating threads, brings the bearing surfaces into contact, and then stretches the bolt while compressing the connected parts. The resulting preload establishes the contact pressure that keeps an excavator attachment, track assembly, machine bracket, or hydraulic support together. The load path includes the head, bearing surface, shank, engaged threads, mating component, and compressed joint; a weakness anywhere changes the connection response.

I separate tightening into seating and elastic loading. During seating, clearances close and surface irregularities flatten. Torque can rise while little useful bolt extension occurs if the head catches on a burr or the bolt contacts a blind-hole bottom. After genuine seating, further rotation produces extension and compression, provided the thread and bearing interfaces continue to move as qualified. A torque reading cannot identify these stages reliably without additional assembly evidence.

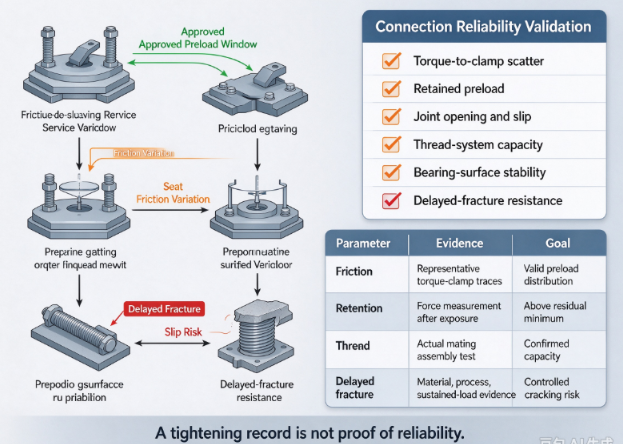

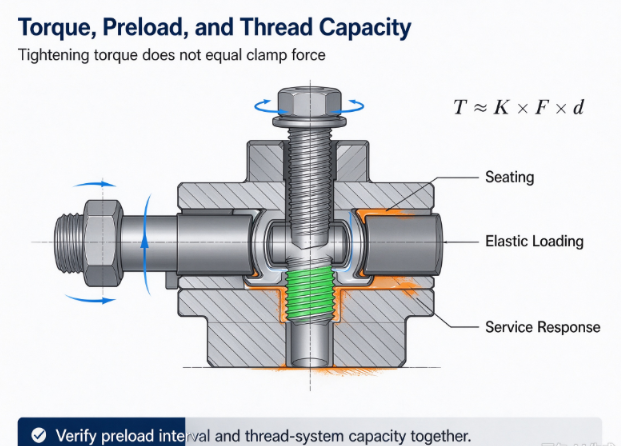

The simplified relationship T ≈ K × F × d relates tightening torque T, preload F, nominal diameter d, and an experimentally determined factor K. It is an approximation for a defined assembly condition, not a universal conversion. K combines effects that include thread geometry and friction at the threads and rotating bearing face. When prevailing torque exists, it must be distinguished from the torque associated with generating clamp force.

External tension increases bolt load while unloading the compressed members. Before separation, a simplified elastic model distributes the external force according to bolt and member stiffness. Real machinery joints also experience eccentric loading, bending, and local separation, so a single stiffness ratio cannot describe every operating state. Once contact opens locally, the bolt may receive a larger cyclic load increment and a bending component that the original centered model omitted.

No approved technical standards or verified specification values were supplied for this article. Accordingly, no standard number, certificate, issuing body, or numerical torque limit is asserted. Verify the applicable design method, test procedure, and acceptance limits against the manufacturer's current test report before specification.

2 Key Components and Engineering Functions

I examine the complete assembly because a bolt's tensile capacity does not establish the capacity of its seat or mating thread. Component drawings must identify the geometry and material condition relevant to load transfer. A coating description must also include its functional condition during tightening, rather than only its color or nominal corrosion purpose.

Verify all parameters against current test reports and applicable standards before use in specifications.

A washer that performs adequately on a rigid test fixture may indent a softer machine component. Similarly, a nut qualified separately may behave differently after its coating or lubricant changes. I therefore require evidence for the approved component combination, including the actual rotating interface and any locking feature. Performance parameters belong to that combination, not to the bolt alone.

3 Performance Parameters and Testing Standards

The acceptance window must be derived from the joint's service requirements and component limits. Its lower preload boundary addresses separation, slip, and functional loss; its upper boundary addresses combined tightening stress, thread capacity, bearing damage, and material susceptibility. Neither boundary can be selected from nominal diameter alone. Verify target preload and allowable assembly scatter against the manufacturer's current test report before specification.

Verify all parameters against current test reports and applicable standards before use in specifications.

I keep instrument calibration, fixture stiffness, and measurement uncertainty in the test record. A force transducer inserted into a joint can change the assembly stiffness or bearing interface; the engineer must establish whether that alteration affects transferability. Ultrasonic extension measurements likewise require material-specific calibration and suitable reference conditions. Neither method becomes authoritative merely because it produces a numerical display.

Use torque–angle traces to supplement direct force measurements, especially when distinguishing seating from abnormal resistance. Define the angle reference consistently and preserve individual traces. A batch average cannot show whether an isolated assembly bottomed out, seized, or accumulated excessive prevailing torque. Test reports should connect each result to the component condition and assembly sequence that produced it.

4 Protection Mechanisms and Engineering Logic

Protection begins with a preload interval that remains valid after friction variability and service-induced losses. The installation target must leave room for uncertainty at both ends. Raising nominal torque to compensate for a low-clamp batch can push a low-friction assembly beyond its permitted stress. I would first identify why the torque–clamp relationship changed, then revise the qualified process rather than adjust the tool setting without evidence.

Dry, oiled, zinc-coated, and repeatedly assembled interfaces require separate characterization unless testing demonstrates equivalence. Oil can alter both thread and bearing friction. A zinc coating may include a topcoat or integrated lubricant whose condition changes during storage and handling. Reassembly can polish high spots, damage the coating, redistribute lubricant, or create debris. These effects do not support a universal correction factor, and their direction must be measured for the actual combination.

In a qualification test, I would record applied torque, clamp force, rotation, tightening speed, lubricant condition, and component identity together. The practical question is whether the approved torque window produces the required preload distribution across representative lots. Include conditions that assembly personnel can actually encounter, such as an approved lubricant application variation. Do not combine intentionally different friction populations into an average that appears stable while neither population meets the joint requirement.

Impact-loaded track shoes, cutting edges, and crusher attachments require a second layer of verification: retained contact under the actual force directions. A joint may resist centered tension but open under an overturning moment. Identify grip length, interface geometry, load eccentricity, and whether a potential shear plane crosses the threaded portion. If slip occurs, thread roots or clearance-hole edges can receive cyclic bearing and bending loads that were absent from the assumed frictional load path.

I would qualify those joints with a loading sequence that reproduces the relevant load directions and boundary stiffness. Measure preload before and after cycling, observe interface motion, and inspect likely crack origins. A bolt property designation describes material performance within its defined scope; it does not establish that a particular crusher joint resists fatigue. The distinction matters when a short, stiff grip magnifies the force change caused by a small amount of seat settlement.

Thread engagement protects clamp force only when the mating material can sustain the transferred load. Usable engagement excludes entry chamfers, incomplete end threads, and damaged flanks. For blind holes, bottom clearance must accommodate the actual bolt length, accumulated tolerances, and any material trapped in the hole. A bolt touching the bottom can create a convincing torque rise while leaving the members weakly clamped.

Compare thread-stripping capacity with bolt tensile capacity and with the combined installation and service demand. The weaker mechanism governs. A harder bolt installed into a weaker tapped component may simply move the failure into an expensive housing. Nut strength compatibility, internal-thread geometry, and effective engagement must be verified together. Destructive testing of the actual mating assembly should identify whether failure occurs in the bolt, internal threads, external threads, or surrounding material.

Hydrogen-related delayed fracture requires evaluation of material susceptibility, hydrogen introduction, and tensile stress. Acid cleaning and electroplating can introduce hydrogen into susceptible steel. Hydrogen can redistribute toward stressed regions such as thread roots, contributing to cracking after assembly. An attractive finish or successful corrosion exposure test cannot establish resistance to this mechanism because the tests address different failure processes.

Verify material hardness, cleaning route, plating records, and any hydrogen-relief treatment against the approved process documentation. If relief treatment is required, its timing, actual part temperature, duration, and lot linkage must be demonstrable. No universal schedule is specified here. Sustained-load qualification and batch traceability support the assessment, but a passing sample does not prove that every component is free from risk.

These protections interact. A low-friction coating can increase preload at unchanged torque, increasing tensile stress in a hydrogen-susceptible fastener. A softer washer may reduce that stress later through settlement while simultaneously allowing impact fatigue to develop. I therefore evaluate friction, metallurgy, engagement, and contact retention as a coupled system. Changing one element requires a documented decision about which parts of the joint qualification remain valid.

5 Common Engineering Failures and Root Cause Analysis

Torque passes while the joint slips

Failure: Members move despite an acceptable tightening record. Root Cause: Elevated thread or bearing friction consumes torque without developing the qualified clamp force. Engineering Consequence: Shear transfers into bolt bearing, producing fretting and potentially bending fatigue. Prevention: Qualify friction states using direct torque–clamp measurements and define handling controls for the approved coating and lubricant.

Clamp force falls without visible rotation

Failure: Preload decreases while witness marks remain aligned. Root Cause: Local asperity collapse, washer indentation, coating compression, or time-dependent member deformation shortens the compressed stack. Engineering Consequence: Reduced contact pressure permits separation or slip. Prevention: Verify bearing resistance and surface condition, measure retention after the defined sequence, and qualify any settling or retightening procedure.

Blind-hole tightening produces false seating

Failure: The tool reaches its limit before the head develops proper bearing pressure. Root Cause: The tip contacts the hole bottom, debris, or trapped material before the clamped stack seats. Engineering Consequence: Torque records misrepresent clamp force and the joint can open immediately under load. Prevention: Verify usable depth, bolt length, clearance, cleanliness, and direct seating evidence.

Threads strip during final tightening

Failure: Rotation continues with a sudden force decrease. Root Cause: Effective engagement or mating-material resistance is insufficient for the developed preload, sometimes aggravated by low friction. Engineering Consequence: The connection loses its load path. Prevention: Verify engagement and thread-system capacity using the actual mating component, then establish the permitted upper preload boundary.

A coated bolt fractures after installation

Failure: Fracture develops after tightening without an identified overload event. Root Cause: Hydrogen introduced into susceptible material contributes to crack growth under sustained tensile stress; fatigue or other mechanisms must also be investigated. Engineering Consequence: Sudden loss of clamp force redistributes load to adjacent connections. Prevention: Control treatment processes, retain lot records, and use approved sustained-load verification alongside fracture analysis.

When examining failure evidence, I preserve mating components, coating condition, fracture faces, and assembly records before cleaning or retightening changes them. The measured residual torque is supporting evidence, not a reconstruction of original preload. Confirm the proposed mechanism using physical observations and the relevant loading history.

6 Engineering Specification Checklist

Structural requirements

• Define tension, shear, bending, impact, and thermal load cases with their application points and combinations.

• Specify the intended load path, permitted interface motion, grip geometry, and local separation criteria.

• Verify the required preload interval and retained minimum against current joint test reports.

• Identify effective thread engagement, mating-material capacity, bearing resistance, and blind-hole clearance.

Drive and assembly requirements

• Identify the tightening tool, rotating interface, speed, sequence, and control method.

• Define coating, lubricant, prevailing-torque treatment, and allowable assembly condition changes.

• Require individual torque–clamp evidence and acceptance rules for batch scatter.

• Specify validated seating detection, retention checks, and restrictions on repeat assembly.

Environmental requirements

• Define temperature changes, moisture, corrosive media, contamination, and exposure duration.

• Verify coating compatibility with friction requirements and hydrogen-risk controls.

• Address coating compression, differential expansion, and service-induced material degradation.

Safety and verification requirements

• Identify the project-approved standards and editions before releasing the specification; none were supplied here.

• Require traceable material, heat-treatment, surface-treatment, and component-combination records.

• Define crack inspection, sustained-load assessment, uncertainty treatment, and technical release authority.

• State which process or design changes require renewed qualification.

7 Evaluating Manufacturer Engineering Capability

The supplied company profile states that Ningbo yi teng construction machinery CO,LTD was established in 2005 and focuses on construction-machinery components and fasteners, particularly Pins. Its stated range includes cutting-edge bolts, Track Bolts, Crusher Bolts, Nuts, and hydraulic accessories, with custom manufacturing and overseas supply experience.

I evaluate any manufacturer's capability through the evidence connecting a drawing to a qualified joint. Relevant capability includes material identification, heat-treatment control, thread measurement, coating-process traceability, torque–clamp testing, and failure investigation. A test system should distinguish friction variation from dimensional interference and should preserve individual results rather than report only a mean value.

No current certification is established by the technical-standards field supplied for this article. Verify any required certification directly for its holder, scope, and current validity before including it in an engineering specification. Product acceptance still requires the relevant component and assembly evidence.

The related product page should identify the available bolt configurations and the reports needed to verify their torque–preload behavior.

FAQ

Can the same torque be used for dry and lubricated bolts?

The same torque is acceptable only if testing confirms that both conditions meet the required preload window. Lubrication changes the frictional share of tightening input. Separate the approved conditions during qualification and verify the resulting force distributions rather than assume a transferable correction.

Does a torque audit establish retained clamp force?

A torque audit alone does not establish retained clamp force. Breakaway resistance depends on current friction and locking features, while embedment can reduce preload without rotation. Use an approved force or extension method when the engineering decision requires direct preload evidence.

Can a stronger bolt compensate for weak internal threads?

A stronger bolt cannot compensate for inadequate internal-thread capacity. The mating material and effective engagement determine whether the thread system can carry the developed force. Compare the relevant failure capacities and qualify the actual assembly before increasing preload.

Should a joint always be retightened after settling?

Retightening should be specified only when the approved assembly procedure demonstrates that it restores the required condition safely. Additional rotation can increase stress or damage a previously qualified friction surface. The procedure must define timing, control method, and the component combinations for which it is valid.

Does a corrosion test clear a coated bolt for delayed-fracture risk?

A corrosion test does not establish resistance to hydrogen-related delayed fracture. Corrosion protection and sustained-load cracking address different mechanisms. Verify material susceptibility, treatment history, and the approved mechanical assessment separately.
