bolts Bolt Groups: Load Sharing and Contact Verification

2026-10-06 09:00:00

Every fastener in a mounting pattern can meet its individual tightening setting while one corner of the attachment remains poorly supported and an outer bolt carries excessive service load. I assess bolts through the complete group, including contact geometry, elastic interaction, and load introduction. This article explains how to verify distribution across a joint rather than treating individual installation results as proof of uniform structural performance.

1 How bolts Work — Core Operating Principles

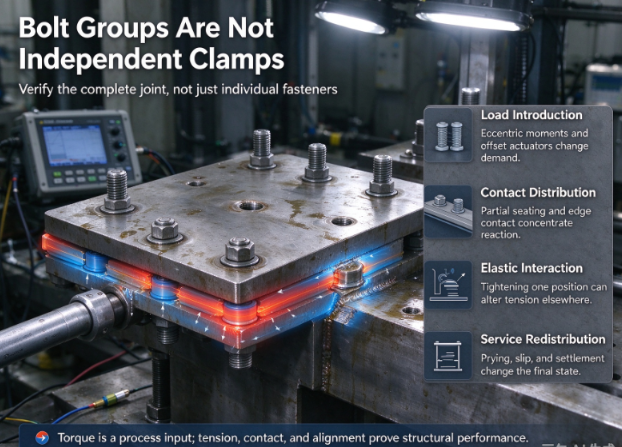

A bolt group does not act as a collection of independent clamps. Each fastener stretches while the connected members compress and deform around it. Tightening one location can move a common plate and change the compression established elsewhere. The final state depends on the members' stiffness, initial fit, bearing support, and installation sequence. I therefore define the completed group as the mechanical object being qualified.

External force enters that group through the structure. A centrally applied load may produce a different distribution from an offset actuator, a blade reaction, or a bracket carrying an overhung component. Moments can increase demand on some fasteners while unloading contact near others. Uniform installation torque does not eliminate this structural asymmetry. It controls a process input whose relationship to each fastener's tension must still be verified.

Contact provides part of the reaction. A broad, closed interface can transfer load through compression and, where intended, friction. A warped surface or partial seating can concentrate that reaction in a smaller region. As loading changes, the contact region can migrate or open. The resulting bolt force distribution may become nonlinear, particularly when a flexible plate develops prying action or transfers load through edge contact.

Transverse loading introduces another question: whether the group is designed to prevent slip or to carry load through bearing after permitted movement. Clearance, hole position, shank geometry, and the sequence in which contact develops can determine which bolt engages first. I do not assume every fastener enters bearing simultaneously. The actual tolerance combination and support flexibility need assessment.

No technical standards or verified specification appendix were supplied. Group loads, preload ranges, geometric limits, sequence stages, and permissible movements must be verified against current manufacturer reports and approved structural analysis before specification.

2 Key Components and Engineering Functions

I identify components by how they affect the group rather than by their catalog category. A washer, mounting foot, or hole tolerance can alter the force at another location through the common structure. Material and geometry information must therefore support an assembled model and not merely confirm that each loose component fits its own drawing.

Verify all parameters against current test reports and applicable standards before use in specifications.

I record component locations rather than treating all specimens as interchangeable. A fastener placed near an edge can experience different bearing support from one near the center. A tapped boss close to a rib can have different stiffness from one in an unsupported wall. The location map links dimensions, assembly traces, and service measurements to the physical group.

Locating features need their own load-path definition. A pin, fitted shoulder, or keyed surface may intentionally carry transverse reaction, but its contribution cannot be assumed simply because it exists. Its fit, contact, and capacity must be established. Otherwise, the structural model may credit support that the assembled joint does not actually provide.

3 Performance Parameters and Testing Standards

I establish acceptance at both the individual and group levels. Individual tension must remain within the approved component boundaries, while the group must retain the required contact, alignment, and load transfer. A set of individually acceptable readings can still form an unacceptable joint if the common member is distorted or the applied moment creates a local separation.

Verify all parameters against current test reports and applicable standards before use in specifications.

Instrumented assemblies can alter the system they measure. A load washer may change grip, bearing area, or stiffness; a contact film can change seating. I assess those effects before interpreting the result as representative of production. Where direct reproduction is impractical, the report must explain how the instrumented configuration relates to the original group.

Model correlation also requires distributed evidence. Agreement at one convenient fastener does not confirm the force at an edge or the contact near an eccentric load. I select measurements that can challenge the assumed distribution and expose an incorrect boundary condition.

4 Protection Mechanisms and Engineering Logic

Protection begins with a correct description of the common structure. The mounting plate, supporting feet, and reaction surfaces determine how force reaches the fasteners. I identify flexible regions, unsupported spans, edge distances, and points of load introduction. The model must include contact behavior where opening or sliding can change the reaction. A calculation that permanently ties every interface together may suppress the very movement the validation needs to examine.

Preload distribution is then established through the actual assembly process. Equal torque settings do not guarantee equal tension because friction varies across fasteners, finishes, lubricants, and bearing faces. I correlate torque and tension for the qualified component combination and retain the specimen-level spread. In a group, that spread interacts with structural flexibility: an initially less compressed region can open sooner and redistribute service load to neighboring positions.

Elastic interaction makes sequence a mechanical parameter. Tightening one position compresses and bends the common member, potentially changing the stretch of already loaded fasteners. I observe the group through each approved stage rather than measuring only the fastener currently under the tool. The final sequence is accepted because it establishes the required group state, not because its order resembles a familiar pattern used on another assembly.

Initial flatness and support fit can also dominate the process. A plate drawn down onto uneven feet may store bending stress before service begins. One fastener can appear to require excessive rotation because it is closing a geometric gap rather than simply developing local tension. I distinguish draw-down from the elastic tightening regime and assess whether the final distorted shape is permitted. A torque trace cannot independently establish that the common member has acceptable support.

Load sharing under impact requires the actual direction and timing of the applied force. On a blade or crusher attachment, clearance can allow one fastener or locating feature to contact first. That location may receive a transient bearing load before the rest of the group engages. I inspect grip, shear-plane position, shank clearance, and contact evolution. Qualification must measure relative movement and retained preload as well as applied force and survival.

Fatigue assessment follows the resulting local stress histories. An outer fastener experiencing prying can have a different fluctuating tension from an interior one. Repeated slip can add bending at a thread transition or damaged bearing section. I do not distribute the total force equally merely because the pattern is symmetric on the drawing. The support, preload distribution, and applied moment must justify that assumption or be represented in the analysis.

Effective engagement must be checked for each highly loaded position. Entry chamfers, incomplete threads, runout, and installed overlap determine usable support. A common bolt designation can engage different lengths where the underlying boss geometry varies. I compare internal stripping, external-thread damage, bolt tension capacity, and surrounding-member failure using actual materials. Representative destructive results must preserve the location and mechanism rather than combining all positions into one undifferentiated average.

Bearing-seat response influences distribution after installation. A softer seat or thicker interface coating at one location can settle more than its neighbors. The group then redistributes even without nut rotation. I assess actual pressure support, washer response, coating condition, and residual force after settling. A locking feature addresses rotational behavior but does not automatically prevent this location-dependent loss of compression.

Coating-process integrity is a separate protection boundary. Susceptible material, hydrogen exposure during finishing, and sustained tensile stress can produce delayed fracture. An overloaded outer position may expose a material weakness that an isolated lightly loaded specimen did not reveal. I require finished hardness, process identity, appropriate relief records, and approved sustained-load evidence linked to the lot. Corrosion performance does not establish delayed-fracture acceptance.

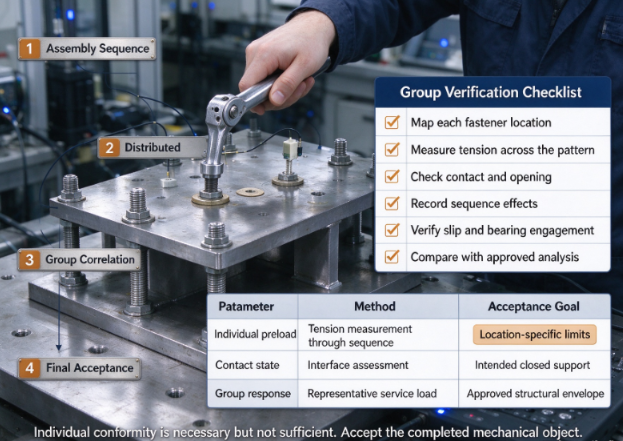

The final acceptance must cover the whole group. I compare the completed contact map, distributed tension, alignment, and service response with the approved assumptions. A changed plate, support repair, finish, sequence, or loading point requires review of the affected evidence. This prevents local installation conformity from being mistaken for complete structural qualification.

5 Common Engineering Failures and Root Cause Analysis

When investigating a group failure, I retain records from every position and inspect the common members. The broken fastener may be responding to a support problem elsewhere. Its fracture location must be interpreted alongside contact marks, plate distortion, hole condition, and the assembly sequence.

Outer-position overload occurs when an eccentric service moment or plate prying concentrates tension near the edge of the group. The consequence can be local yielding or fatigue while interior fasteners remain apparently acceptable. Prevention requires representative load introduction, distributed measurement, and a structural model that includes contact and flexibility.

Sequence-induced unloading occurs when later tightening deforms the common member and reduces the tension at an earlier position. The consequence is a completed group with insufficient local compression. Prevention requires measurement throughout the sequence and qualification of the final state rather than isolated step results.

Partial seating occurs when uneven feet, warped surfaces, or local interference prevent the intended contact region from closing. The consequence is plate bending and an altered reaction path. Prevention requires verified fit, support geometry, and inspection that distinguishes draw-down from acceptable elastic clamping.

Early bearing engagement occurs when hole position or clearance makes one fastener contact before the others during transverse motion. The consequence is concentrated impact and local bending. Prevention requires tolerance assessment and representative movement testing of the actual pattern.

Location-dependent thread failure occurs when a highly loaded position has less usable engagement or weaker surrounding material than assumed. The consequence can be stripping or boss cracking that redistributes load suddenly. Prevention requires position-specific engagement and capacity evidence.

Unequal settlement occurs when bearing surfaces or coatings compress differently across the group. The consequence is progressive preload redistribution after an initially acceptable sequence. Prevention requires compatible seats, controlled interface condition, and distributed residual-force measurement after duty conditioning.

6 Engineering Specification Checklist

The specification must identify the group geometry and its supporting structure before defining individual fastener limits. I use location-specific records where the load path is not uniform. All numerical requirements must refer to current reports and the approved assembled analysis.

• Structural: define the bolt pattern, force introduction, eccentric moments, contact regions, locating features, and support boundary conditions.

• Structural: verify common-member stiffness, flatness, bearing support, effective engagement, and position-specific capacity.

• Structural: establish individual and group acceptance for tension, alignment, contact opening, sliding, and residual state.

• Drive specifications: qualify the complete tightening sequence, tool configuration, friction condition, and elastic interaction between positions.

• Drive specifications: identify the permitted treatment of interrupted sequences and previously loaded positions.

• Environmental: assess temperature gradients, corrosion, contamination, coating settlement, and wear that can change distribution.

• Safety standards: confirm applicable project requirements through approval; no standard or certification is asserted here.

• Verification: retain a position map connecting component identity, dimensions, traces, force measurements, contact observations, and disposition.

I define which locations require measurement because they can challenge the assumed distribution. Sampling only central or easily accessible positions may omit the controlling edge. Inspection access must therefore be considered when selecting the validation arrangement and service monitoring method.

The acceptance record must disclose interventions. Retightening one location, adding a shim, or repairing a support changes the group state and may invalidate earlier results. The final report should preserve the original condition and show why the changed configuration is accepted.

7 Evaluating Manufacturer Engineering Capability

Ningbo yi teng construction machinery CO,LTD is described in the supplied information as manufacturing construction machinery fasteners and related components. The bolts product page should identify individual component evidence without implying that it automatically qualifies every customer bolt-group arrangement.

I evaluate whether engineering personnel can support position-specific geometry review, friction characterization, and representative assembled testing. A useful report explains the support arrangement, load introduction, sequence, and instrumentation effects. Component test capability must be distinguished from the ability to validate a complete group.

Traceability should connect finished lots to the measured locations and preserve evidence from failed mating parts. The organization must also identify when a customer's changed support or repaired plate falls outside the tested boundary. No current certification is established by the supplied technical-standards field; verify any required certification before specification.

FAQ: bolts in Multi-Fastener Joints

Does equal torque establish equal load sharing between bolts?

No, equal torque does not establish equal preload or equal service demand.

Friction affects installed tension, while structural geometry affects load distribution. I evaluate both mechanisms separately and then in combination. The group needs distributed evidence rather than a single tool setting.

Can tightening one bolt change the force in another?

Yes, deformation of the common members can change previously established fastener tension.

The interaction depends on stiffness, contact, and sequence. I measure representative positions throughout the approved process. A passing early reading does not necessarily describe the completed group.

Can a symmetric pattern carry an asymmetric load?

Yes, an eccentric force or uneven support can produce unequal demand in a symmetric pattern.

Drawing symmetry does not establish structural symmetry under service. I include the actual force introduction and contact conditions in analysis. Measurements should challenge the most highly loaded locations.

Can locating Pins be assumed to carry all transverse force?

Only when their fit, contact, and capacity are established for the actual load path.

Clearance can delay engagement or concentrate reaction at one feature. I verify the intended division of load between locating features and fasteners. Their presence alone does not justify a bearing assumption.

What establishes acceptance of the completed group?

Acceptance requires verified distributed tension, contact, alignment, and response under the approved service envelope.

The measurements must represent the production geometry and account for instrumentation effects. Individual fastener conformity remains necessary but is not sufficient. Current reports must establish the numerical boundaries.
