bolts Maintenance Replacement: Fit and Compatibility Checks

2026-10-08 09:00:00

A replacement fastener can match nominal diameter and length yet seat on its thread runout, place threads in a bearing plane, or damage a worn internal thread when tightened with the previous setting. I assess bolts as replacements within the actual repaired assembly. This article examines dimensional compatibility, remaining mating capacity, contact support, altered friction, and the evidence required to approve a maintenance configuration.

1 How bolts Work — Core Operating Principles

The replacement must reproduce an approved mechanical function, not simply occupy the same hole. Tightening needs complete seating at the intended bearing surfaces, usable mating engagement, and sufficient clearance at unintended contact points. Only after those conditions are established does further advance create elastic bolt tension and compression in the stack. A visually similar fastener can develop a different force path if its head, shoulder, runout, or tip geometry differs.

Service loading then acts through the repaired members. A worn hole, thinned blade seat, distorted bracket, or repaired boss can change how the force reaches the bolt. The original component drawing may describe an unworn assembly and therefore cannot automatically establish the repaired capacity. I identify the actual installed geometry and compare it with the conditions covered by the original validation.

Replacement can also change stiffness. A different grip, shoulder length, washer arrangement, or material condition can alter elastic response and bearing support. A thicker washer may improve one local contact while reducing thread overlap or bottom clearance. Each substitution must therefore be assessed through the full dimensional stack rather than treating the changed part as an isolated improvement.

Assembly resistance is another compatibility question. A new coating, lubricant, lockNut, or mating surface can change tension at the previous torque setting. The old fastener may also have been installed into a different contact condition before wear occurred. I verify the repaired assembly process rather than assuming the previous tool recipe remains appropriate because the nominal designation is unchanged.

No technical standards or verified specification appendix were supplied. Dimensions, material properties, torque settings, wear limits, engagement requirements, and repair acceptance boundaries must be verified against current manufacturer reports and approved repair documentation before specification.

2 Key Components and Engineering Functions

I inspect the proposed replacement and the retained equipment parts together. The replacement may be new while the nut, housing, washer, and mounting surfaces retain an unknown service history. A specification that checks only the new bolt leaves the controlling interface unqualified.

Verify all parameters against current test reports and applicable standards before use in specifications.

Adapters, shims, and thread repairs require identified configurations. Their presence can alter engagement, alignment, bearing pressure, and stiffness. I do not accept them as incidental workshop details. The repair drawing must establish their geometry and function, and the validation must cover the installed arrangement.

Physical identity must also be preserved. A loose replacement with an unclear material or processing history cannot be qualified from appearance. I link the proposed part to its finished-condition evidence and retain the identity of the mating equipment location. That association is necessary if later testing or failure analysis reveals an incompatibility.

3 Performance Parameters and Testing Standards

I establish compatibility through geometric inspection, material evidence, and representative assembled testing. No single measurement answers every question. A correct thread fit does not establish bearing support, and a successful tightening cycle does not establish that the repaired members retain the intended service load path.

Verify all parameters against current test reports and applicable standards before use in specifications.

I preserve the removed components where they can explain the original failure. Their wear pattern, fracture, bearing marks, and thread damage help identify what the repair must correct. Replacing the fastener before understanding the failed interface can produce a neat-looking assembly that retains the same damaging mechanism.

Representative repair testing must include realistic member condition. Testing the replacement in new, unworn parts may establish component performance while leaving the proposed field repair unqualified. The report must identify which retained geometry and damage state were reproduced and which remain outside its scope.

4 Protection Mechanisms and Engineering Logic

Protection begins by establishing the original intended load path and the actual retained geometry. I compare the failed assembly with the drawing and service evidence before selecting a replacement. The repair must identify whether the connection relies on friction, bearing, fitted shoulders, locating features, or a combination. A replacement that fits the hole but changes that mechanism requires a new structural assessment.

Head geometry is part of compatibility. An underside radius, flange width, countersink form, or square-neck feature can contact the mating part differently. Local interference may produce a convincing torque rise before the intended bearing face seats. I inspect the complete contact and clearance arrangement. Nominal diameter and overall length cannot establish whether compression is introduced through the correct surface.

Shoulder and thread position matter under transverse loading. A change in unthreaded length can move the threaded region into a bearing or shear plane. A shoulder that is too long can prevent a nut or member from seating; one that is too short can change the loaded section. I assess grip, thread runout, hole geometry, and permitted movement together. No universal substitution rule is inferred from a shared thread designation.

Usable engagement must be checked in the repaired stack. Additional washers, a thinner worn attachment, an altered nut, or a repaired boss can change the overlap of complete threads. Chamfers, incomplete turns, and runout do not provide the same credited support as complete engaged flanks. I compare internal stripping, external damage, bolt rupture, and surrounding-member failure using verified material conditions. A longer replacement is not accepted merely because it appears to engage farther.

Blind-hole clearance requires direct attention. A tip can bottom against the drilled base, incomplete threads, or retained debris before the head establishes compression. The assembly may then reach a familiar torque while remaining poorly clamped. I verify the tolerance stack and physical seating evidence, then correlate the process with independent clamp-force measurement. Repeatedly adding washers to make an unsuitable length appear to fit is not an approved repair unless that complete configuration is validated.

The torque-to-preload relationship often changes during replacement. New coating, lubricant application, prevailing resistance, and worn mating surfaces alter rotational resistance. Dry, oiled, newly plated, and previously assembled states need distinct evidence where their differences affect the process. I test the proposed replacement combination and preserve specimen-level scatter. Carrying forward an old torque setting without checking the new friction system can produce either insufficient compression or excessive component load.

Remaining bearing support must also be established. A worn blade seat, cracked housing face, or dished washer can settle beneath the new fastener. Increasing the bolt strength does not restore that support. I identify the actual bearing area and local material condition, then inspect residual force after representative seating and loading. A locking feature can restrain rotation while the repaired stack continues to lose compression.

Impact and fatigue validation need the repaired condition. Oval holes can permit greater reversal movement and bearing impact. A thinner attachment can change bending stiffness and prying. I examine load direction, grip, shear-plane position, and contact slip, then compare original assumptions with the measured repaired response. A component tensile result does not establish recovery of the complete machinery duty.

Replacement processing history creates an independent material boundary. Susceptible finished material, hydrogen introduced during cleaning or coating, and sustained assembly tension can create delayed fracture. I require lot-linked material and hardness evidence, process identity, applicable relief records, and approved sustained-load verification. A matching appearance or corrosion finish does not establish compatibility with the original material condition or delayed-damage acceptance.

The repair approval must identify permitted variation. Changes in fastener geometry, mating parts, finish, lubricant, spacers, tool, or equipment damage state can invalidate the evidence. I define those boundaries so that a one-time accepted repair does not become an uncontrolled general substitution. Release is based on the verified assembled configuration and service response, not simply successful installation.

5 Common Engineering Failures and Root Cause Analysis

I investigate replacement failures by examining what changed and what remained damaged. The new fastener may be reacting a geometry problem created during service. Mechanism-specific findings should determine whether the correction belongs in the fastener, mating part, assembly process, or approved repair method.

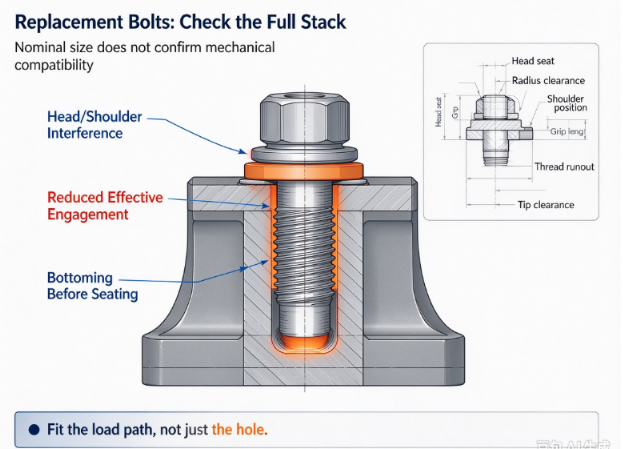

Head or shoulder interference occurs when the replacement contacts a radius, runout, or shoulder before the intended bearing surfaces seat. The consequence is false tightening with inadequate compression. Prevention requires assembled clearance inspection and measured seating behavior.

Reduced effective engagement occurs when a changed stack or thread form provides less complete overlap than assumed. The consequence can be internal stripping or external-thread damage. Prevention requires a capacity comparison based on usable engagement and the actual mating material.

Bottoming after length substitution occurs when the replacement tip or runout reaches an unintended stop. The consequence is high resistance without the intended bracket compression. Prevention requires tolerance-stack verification, cleanliness control, and independent clamp-state evidence.

Overloading a worn support occurs when a stronger or more efficiently lubricated replacement develops force beyond the remaining bearing or thread capacity. The consequence may be housing damage while the new bolt remains intact. Prevention requires reassessment of every retained component boundary.

Reversal impact in enlarged holes occurs when wear allows greater movement before bearing contact. The consequence is increased local bending and fatigue demand. Prevention requires approved hole assessment or repair and representative cyclic loading of the repaired geometry.

Unqualified friction substitution occurs when the original torque setting is applied to a different finish, lubricant, or locking condition. The consequence is incorrect preload despite a successful tool cycle. Prevention requires assembly testing of the actual replacement combination and a controlled process revision.

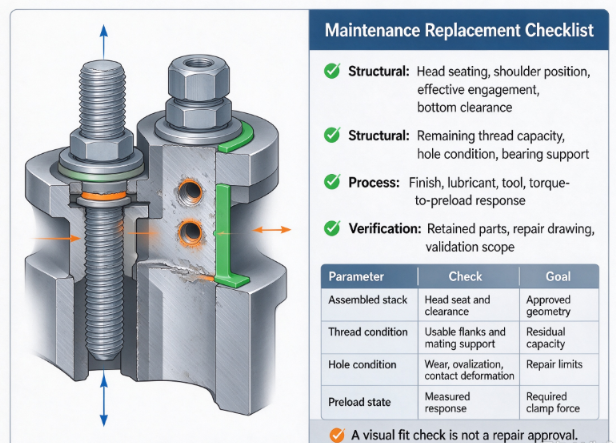

6 Engineering Specification Checklist

The maintenance specification must define the accepted repair configuration and the equipment condition to which it applies. I avoid a general instruction to replace with the same nominal size because that does not establish mechanical compatibility. Current evidence must support every numerical boundary.

• Structural: identify original function, retained damage state, repaired geometry, load path, and any changed locating or bearing mechanism.

• Structural: verify head seating, radius clearance, shoulder position, grip, shear-plane location, effective engagement, and bottom clearance.

• Structural: assess remaining thread, boss, bearing-seat, washer, attachment, and hole capacity.

• Drive specifications: qualify the replacement finish, lubricant, locking feature, tool configuration, and torque-to-preload response.

• Drive specifications: define permitted reuse of mating components and the handling of abnormal resistance or incomplete seating.

• Environmental: assess prior corrosion, heat exposure, contamination, coating damage, and service conditions of retained parts.

• Safety standards: confirm project-required requirements through approval; no standard or certification is asserted here.

• Verification: retain removed-part evidence, replacement identity, inspection results, repair drawing, validation scope, and release disposition.

I state which alterations require further review, including added spacers, changed nut height, repaired threads, modified holes, or a different Fastener material. These are mechanical changes even when the equipment can still be assembled. The approval must identify the complete arrangement rather than accepting workshop modifications by implication.

Post-repair validation should confirm the intended service function and retained joint state. Where testing cannot reproduce the operating duty directly, the approved analysis and evidence must explain the remaining limitation. A visual fit check cannot close an unresolved fatigue or mating-capacity question.

7 Evaluating Manufacturer Engineering Capability

Ningbo yi teng construction machinery CO,LTD is described in the supplied information as producing standard and custom machinery fasteners. The bolts product page should provide configuration-specific geometry and finished-condition evidence that can support a controlled replacement assessment.

I evaluate whether engineering personnel can distinguish nominal interchangeability from validated mechanical compatibility. Useful capability includes complete dimensional review, friction testing, mating-capacity assessment, and traceable processing records. A report should identify which retained equipment conditions were represented.

The organization must also preserve limitations: a new fastener test does not qualify a worn or repaired housing automatically. Failure-analysis evidence should include mating components and the original service mechanism. No current certification is established by the supplied technical-standards field; verify any required certification before specification.

FAQ: bolts for Maintenance Replacement

Are bolts interchangeable when diameter and length match?

No, those dimensions alone do not establish assembled compatibility.

Head form, shoulder, runout, tip, material, finish, and mating condition can change the load path. I inspect the complete stack and bearing arrangement. The accepted replacement must be covered by current evidence.

Can a higher-strength replacement be used without changing the mating part?

Only after the remaining mating capacity and assembly process have been reassessed.

The internal threads or bearing seat may become the limiting component. Changed friction can also produce a different preload at the old setting. A stronger bolt does not strengthen the retained housing.

Can washers correct a replacement that is too long?

Only when the complete washer arrangement is explicitly approved and validated.

Added thickness changes grip, bearing support, and effective engagement. It may remove bottoming while introducing another incompatibility. The repaired stack must be assessed as one configuration.

Can worn holes remain in service with a new fastener?

Only when the actual wear geometry satisfies an approved structural and functional assessment.

Clearance and ovalization affect bearing contact, reversal motion, and fatigue. I do not transfer new-hole qualification directly to worn equipment. Current repair evidence must establish the accepted boundary.

What should be retained from the failed original assembly?

Preserve the removed fastener, mating damage, contact evidence, and relevant installation and service records.

Those records identify the mechanism the repair must correct. Cleaning or disposal can erase useful information. The replacement approval should explain how the verified correction addresses the original cause.
