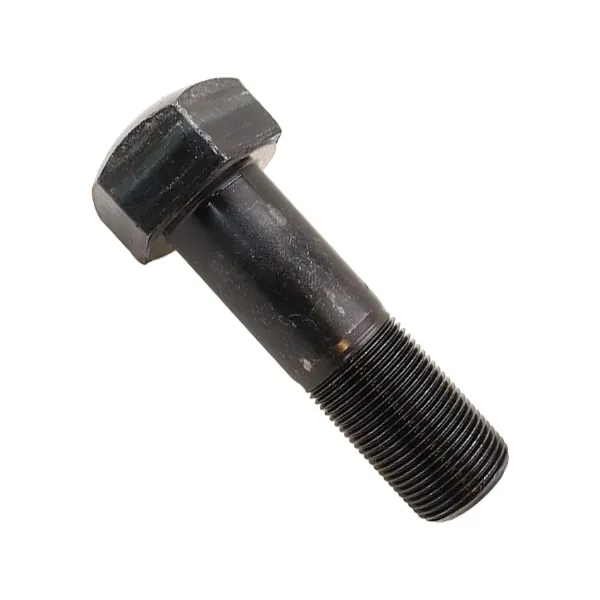

Track shoe bolt

Port：Port NINGBO Payment Terms：L/C,D/A,D/P,T/T OEM number：2B5484 OEM number：8H7504 OEM number：2A3223 OEM number：8H5724 OEM number：6S3419

Inquiry

E-mail：sales@zjbzj.com

Detailed Description
Product Encyclopedia

Product name	OEM	specification	weight (K)	Product name	OEM	specification			weight (K)
Product name	OEM	specification	weight (K)	Product name	OEM	DiaΦ	Thread	Length	weight (K)
tooth block bolt	3S8182	5/8×1 7/8	0.114	Track shoe bolt	2B5484	7/16	20-UNF	1-9/16	0.045
tooth block bolt	6V0937	5/8×2 7/64	0.138

				track shoe bolt	8H7504	1/2	20-UNF	1-1/2	0.063
tooth block bolt	117-1617	3/4×1 15/16	0.182	track shoe bolt	2A3223	1/2	20-UNF	1-7/8	0.095
tooth block bolt	3S0336	3/4×2 3/4	0.168	track shoe bolt	8H5724	1/2	21-UNF	19/32	0.027
tooth block bolt	5P4130	3/4×2 5/8	0.24	track shoe bolt	6S3419	1/2	22-UNF	19/32	0.027
tooth block bolt	5P7665	3/4×2 1/2	0.21
				track shoe bolt	4K7038	9/16	18-UNF	1-3/4	0.091
				track shoe bolt	7H3596	9/16	18-UNF	1-5/16	0.095
tooth block bolt	9S2727	7/8×2 9/16	0.383	track shoe bolt	2F1009	9/16	18-UNF		0.095
tooth block bolt	3S7837	7/8×2 9/16	0.3	track shoe bolt	5A3187	9/16	18-UNF	3	0.122
tooth block bolt	5P6471	7/8×3 3/16	0.365	track shoe bolt	4K7038	9/16	18-UNF	1-3/4	0.091
tooth block bolt	9W8328	7/8×3 3/16	0.365	track shoe bolt	7H3596	9/16	18-UNF	1-5/16	0.095
tooth block bolt	7T1248	7/8×3″	0.365	track shoe bolt	5A3187	9/16	18-UNF	3	0.122

				track shoe bolt	7H3597	5/8	18-UNF	2-3/32	0.134
tooth block bolt	3S7461	1″x2 25/32	0.471	track shoe bolt	9G3110	5/8	18-UNF	5/32	0.138
tooth block bolt	9S2728	1″x2 27/32	0.458	track shoe bolt	5H8756	5/8	18-UNF	2-1/4	0.141
tooth block bolt	5P0233	1″x3″	0.468	track shoe bolt	TBC01	5/8	18-UNF	3	0.165
tooth block bolt	5P5422	1″x92	0.48	track shoe bolt	5A4104	5/8	18-UNF	3-3/8	0.174


tooth block bolt	120-27-32340	18×1.5×61	0.21
tooth block bolt	131-27-42230	18×1.5×61	0.211	track shoe bolt	1S1859	3/4	16-UNF	2-5/32	0.214
tooth block bolt	9203-2185	18×1.5×60	0.211	track shoe bolt		3/4	16-UNF	58.6mm
tooth block bolt	9203-2186	18×1.5×60	0.211	track shoe bolt	7H3598	3/4	16-UNF	2-3/8
tooth block bolt	9203-21861	18×1.5×60	0.211	track shoe bolt	7H3698	3/4	16-UNF	60	0.336
tooth block bolt	20Y-27-11561	18×2.5×45	0.19	track shoe bolt	3S0336	3/4	16-UNF	60	0.336
				track shoe bolt	5P1028	3/4	16-UNF	105	0.322
				track shoe bolt	9S1838	3/4	16-UNF	105	0.322
tooth block bolt	207-27-51310	202.550	0.23	track shoe bolt	6T2162	3/4	16-UNF	105	0.322
tooth block bolt	208-27-51310	202.555	0.25	track shoe bolt	1171167	3/4	16-UNF	49	0.2
				track shoe bolt	6V1792	3/4	16-UNF	2-13/32	0.229
				track shoe bolt	1S8804	3/4	16-UNF	2-1/2	0.233
tooth block bolt	154-27-12320	22×1.5×70	0.33	track shoe bolt	7F8619	3/4	16-UNF	2-3/4	0.336
tooth block bolt	155-27-12181	22×1.5×71	0.385	track shoe bolt	5A7524	3/4	16-UNF	4	0.318
tooth block bolt	154-27-12293	22×1.571	0.385
				track shoe bolt	9M7444	7/8	14-UNF	2-17/32	0.296
				track shoe bolt	7H3599	7/8	14-UNF	2-21/32	0.308
tooth block bolt	175-27-22331	24×1.5×76.2	0.431	track shoe bolt	1H4215	7/8	14-UNF	2-3/4	0.332
tooth block bolt	178-27-11150	24×1.5×80	0.52	track shoe bolt	7T2748	7/8	14-UNF	3-11/32	0.372
tooth block bolt	195-27-12632	24×1.5×90	0.56	track shoe bolt	8S17236V1732	7/8	14-UNF	3-27/64	0.38
tooth block bolt	195-27-31641	24×1.5×90	0.56	track shoe bolt	6V1725	7/8	14-UNF	5-5/64	0.477
tooth block bolt	195-27-31871	24×1.5×90	0.56	track shoe bolt	6V1724	7/8	14-UNF	88	0.382
				track shoe bolt	6V1723	7/8	14-UNF	95	0.401
				track shoe bolt	4229948
tooth block bolt	175-27-22332	24×1.5×80	0.52
tooth block bolt	175-27-22333	24×1.5×90	0.56	track shoe bolt	2M5657	1	14-UNF	2-15/16	0.438
				track shoe bolt	9M7445	1	14-UNF	2-15/16	0.438
				track shoe bolt	3T6308	1	14-UNF	3-9/64	0.482
tooth block bolt	195-27-33130	27295	0.67	track shoe bolt	6T2638	1	14-UNF	3-35/64	0.533
				track shoe bolt	6V1726	1	14-UNF	3-3/4	0.577
				track shoe bolt	6V1727	1	14-UNF	4-21/64	0.636


				track shoe bolt	7T1000	1 1/8	12-UNF	3-25/32	0.73


				track shoe bolt	101-32-11210	M12	1	39mm	0.047
				track shoe bolt	101-32-11210	M12	1.5	39mm	0.047
				track shoe bolt	201-32-11210	M12	1.5	39mm	0.047
				track shoe bolt	106-32-11210	M12	1.5	47mm	0.054


				track shoe bolt	SK60	M14	1.5	39mm
				track shoe bolt	201-32-51210	M14	1.5	39mm
				track shoe bolt	110-32-11411	M14	1.5	48mm	0.089
				track shoe bolt	203-32-21210	M14	1.5	48mm	0.089
				track shoe bolt	203-32-21220	M14	1.5	48mm	0.089
				track shoe bolt	112-82-01210	M14	1.5	56mm	0.098
				track shoe bolt	116-32-11220	M14	1.5	56mm	0.098


				track shoe bolt	TBK05	M16	1.5	40mm	0.132
				track shoe bolt	TBK06	M16	1.5	48mm	0.145
				track shoe bolt	203-32-51210	M16	1.5	48mm	0.145
				track shoe bolt	130-32-11213	M16	1.5	57mm	0.158
				track shoe bolt	205-32-51120	M16	1.5	57mm	0.158
				track shoe bolt	130-32-11212	M16	1.5	57mm	0.158
				track shoe bolt	4323872	M16	1.5	57mm	0.158
				track shoe bolt	130-82-07212	M16	1.5	65mm	0.16


				track shoe bolt	135-32-11211	M18	1.5	57mm	0.175
				track shoe bolt	135-32-11210	M18	1.5	57mm	0.175
				track shoe bolt	205-32-51210	M18	1.5	57mm	0.175
				track shoe bolt	4247132	M18	1.5	57mm	0.175
				track shoe bolt	4350565	M18	1.5	57mm	0.175
				track shoe bolt	140-80-37210	M18	1.5	64mm	0.178


				track shoe bolt	207-32-11310	M20	1.5	56mm	0.234
				track shoe bolt	9W3619	M20	1.5	54mm	0.231
				track shoe bolt	20Y-32-11210	M20	1.5	54mm	0.231
				track shoe bolt	14X-32-11210	M20	1.5	55mm	0.232
				track shoe bolt	TBK08	M20	1.5	60mm	0.246
				track shoe bolt	SK200	M20	1.5	60mm	0.246
				track shoe bolt	207-32-11350	M20	1.5	63mm	0.273
				track shoe bolt	207-32-11352	M20	1.5	63mm	0.273
				track shoe bolt	156-32-21321	M20	1.5	65mm	0.274
				track shoe bolt	154-32-11250	M20	1.5	65mm	0.274
				track shoe bolt	154-82-01240	M20	1.5	68.5mm	0.285
				track shoe bolt	154-32-21320	M20	1.5	68.5mm	0.285
				track shoe bolt	155-32-11210	M20	1.5	68.5mm	0.285
				track shoe bolt	154-32-21321	M20	1.5	68.5mm	0.285
				track shoe bolt	4143721	M20	1.5	70mm	0.288
				track shoe bolt	0930265	M20	1.5	70mm	0.288
				track shoe bolt	154-820-1210	M20	1.5	80mm	0.296
				track shoe bolt	20Y-32-11230	M20	1.5	93mm	0.325
				track shoe bolt	14X-32-11350	M20	1.5	105mm	0.357
				track shoe bolt	PH550	M20	1.5	80mm	0.296


				track shoe bolt	207-32-51210	M22	1.5	55mm	0.288
				track shoe bolt	207-32-51210M	M22	1.5	65mm	0.328
				track shoe bolt	3083299	M22	1.5	56mm	0.318
				track shoe bolt	6Y9024	M22	1.5	66mm	0.328
				track shoe bolt	208-32-11231
				track shoe bolt	170-32-11212	M22	1.5	75mm	0.343


				track shoe bolt	208-32-11231	M24	1.5	65	0.391
				track shoe bolt	175-32-11210	M24	1.5	76.2mm	0.424
				track shoe bolt	176-32-11210	M24	1.5	76.2mm	0.424
				track shoe bolt	4328034	M24	1.5	76.2mm	0.424
				track shoe bolt	175-32-81192	M24	1.5	105mm	0.533


				track shoe bolt	195-32-11210	M27	1.5	82mm	0.581
				track shoe bolt	195-32-05000	M27	1.5	82mm	0.581
				track shoe bolt	195-32-41320	M27	2	93mm	0.612


				track shoe bolt	195-32-61210	M30	2	96mm	0.832
				track shoe bolt	195-32-61350	M30	2
