bolts Vibration Control: Locking and Preload Retention

2026-10-10 09:00:00

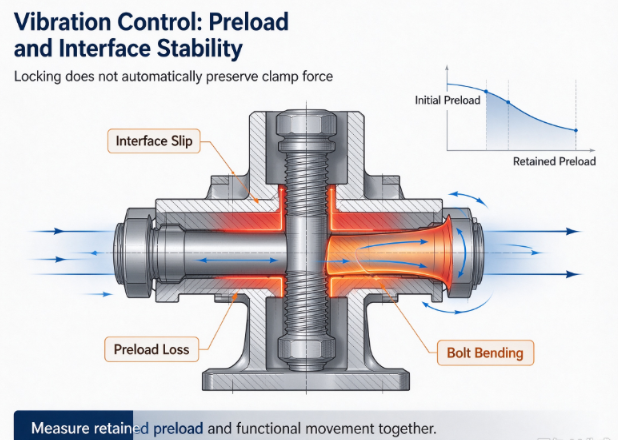

A crusher attachment can retain every fastener while losing enough clamp force for its mounting faces to move under reversing loads. The locking feature may prevent complete separation without preserving the connection's intended behavior. I evaluate bolts by measuring retained preload, interface movement, and locking performance together. This article explains how vibration produces loosening, how secondary retention changes the failure sequence, and what evidence supports an engineering specification.

1 How bolts Work — Core Operating Principles

A tightened bolt stores elastic energy through axial extension. The connected members develop an opposing compressive reaction beneath the head and mating threads. Before service loading, the assembly therefore contains an internal force system even though it has no externally applied working load. I begin vibration assessment by identifying this force path, because the connection's resistance to movement depends on the compression actually reaching its functional interfaces.

In a connection designed to transfer transverse force through interface friction, compression creates resistance to sliding. That resistance depends on the interface condition and its pressure distribution. A painted contact, a lubricated contact, and a machined contact cannot be assumed to behave identically. Local movement can begin where contact pressure is low even while other regions remain stationary. The resulting redistribution may expose the bolt to bending or bearing loads that were absent from the intended load path.

1. Thread advancement brings the connected surfaces into contact and removes available assembly clearance.

2. Further advancement extends the bolt and compresses the joint, establishing preload.

3. Service loading changes local contact pressure and the load carried by the fastener.

4. Transverse motion can produce relative slip at joint, bearing, or thread interfaces.

5. Repeated slip can permit rotational movement, reduce elastic extension, and lower retained preload.

6. A secondary locking feature modifies rotational resistance or limits separation, but its function must be verified independently.

The tightening action and the loosening action do not necessarily follow equivalent friction conditions. A surface that resisted rotation during installation may change after bedding, wear, temperature exposure, or contamination. I therefore avoid interpreting a high installation torque as proof that the assembly will resist transverse vibration. The measured preload and the actual motion at the fastener interfaces provide the more relevant evidence.

Different locking mechanisms act through different physical paths. A deformed thread region introduces resistance during rotation. A mechanical restraint limits available rotation after its clearance is taken up. A cured thread compound develops resistance through its interaction with the mating surfaces. These mechanisms cannot be assigned an interchangeable acceptance criterion merely because each is described as locking.

No technical standards or verified specification appendix were supplied. The governing test document, any applicable clause, and the numerical acceptance limits require confirmation before specification.

2 Key Components and Engineering Functions

I examine the complete connection rather than evaluating the locking device in isolation. A restraint can remain intact while the bearing seat deforms, the mating thread loses capacity, or the clamped faces slide. Each component therefore needs both a material description and a functional parameter tied to the assembled joint.

The material description must identify the finished condition. Heat treatment, surface treatment, and lubrication can influence strength, friction, and damage susceptibility. For a polymer-containing or chemically cured locking feature, the operating environment also matters. Its material compatibility cannot be established from the bolt material alone.

Verify all parameters against current test reports and applicable standards before use in specifications.

A washer or locking element also changes the assembled geometry. It can alter grip length, the location of the threaded shear plane, available engagement, and the compliance beneath the head. I check those effects before treating a locking feature as a direct addition to an already qualified connection.

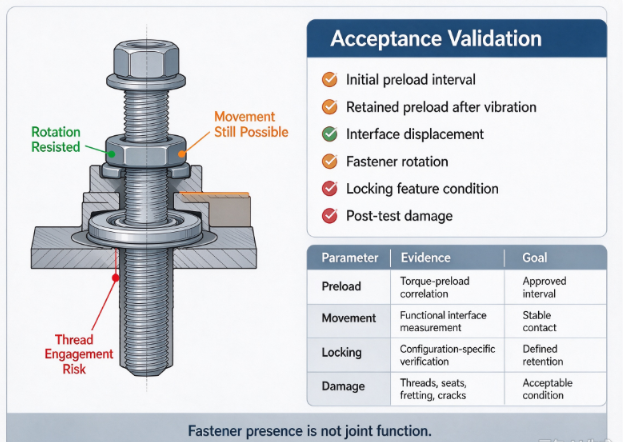

3 Performance Parameters and Testing Standards

The main acceptance question is whether the joint maintains its required function throughout the defined vibration exposure. Fastener presence, rotational resistance, retained preload, and interface stability are separate observations. A specimen can pass one and fail another. The test plan must state which outcomes are required and how each will be measured.

I define the vibration input from the installed application rather than choosing a convenient laboratory setting. Relevant information includes loading direction, displacement or acceleration history, frequency content, attached mass, support stiffness, and the operating sequence. A transverse displacement test and a whole-machine vibration test can answer different questions. Neither automatically reproduces the other.

Verify all parameters against current test reports and applicable standards before use in specifications.

Instrumentation must not change the feature being assessed without accounting for that change. Adding a force sensor can alter grip length and compliance. A displacement probe attached to a flexible support can report fixture motion as joint slip. I establish the measurement reference and evaluate these effects before interpreting the test history.

The test record should preserve the assembly condition, exposure sequence, measurement timing, and any interruptions. If the joint is retightened during testing, its original retained-preload result ends at that intervention. Subsequent performance belongs to a different assembly history and must be identified accordingly.

4 Protection Mechanisms and Engineering Logic

The first protection mechanism is adequate retained compression at the load-transferring interface. A secondary restraint may reduce the consequences of rotation, but it does not create the missing interface pressure when the joint settles. I therefore distinguish prevention of movement from prevention of complete fastener loss. This distinction changes the specification: a containment requirement can be satisfied while a precision mounting, sealing support, or fatigue-sensitive attachment has already failed its functional requirement.

Torque and actual preload must be correlated for the complete locking configuration. Installation torque can include thread friction, bearing friction, and resistance introduced by a locking region. If that additional resistance is treated as though it all produces bolt extension, the inferred clamp force can be too high. The relevant evidence is a measured relationship between applied torque and generated preload using the actual nut, bolt finish, bearing surface, lubricant, and locking feature.

Dry, lubricated, plated, and previously assembled conditions require separate consideration. Lubrication can change the relationship between torque and extension, while repeated assembly can alter the locking region and bearing surface. A locking nut's rotational resistance may also vary with its position along the bolt. I assess both the useful preload produced and the variability between specimens. A single successful tightening does not establish the lower retained-preload boundary of a production process.

The preload interval must also protect against overload. Raising the assembly setting to compensate for uncertain locking friction can overload the most freely rotating specimens. The upper condition must be checked against bolt behavior, bearing-seat resistance, and mating-thread capacity. The lower condition must still preserve the required compression after settlement and vibration. A process that cannot satisfy both boundaries needs a change in its control method, configuration, or friction consistency.

Impact and fatigue validation must reproduce the way movement enters the connection. For a track attachment or crusher mounting, transverse force may reverse while normal compression changes. The unsupported grip, contact stiffness, hole clearance, and threaded shear-plane location influence whether the fastener experiences tension, bending, or direct bearing. I measure joint movement alongside retained preload and examine cracks after the defined exposure. Fastener strength designation alone does not establish the assembled connection's fatigue resistance.

A locking feature can change the damage sequence without eliminating its cause. If rotation is restrained while transverse sliding continues, the bolt may accumulate bending cycles and the contact may fret. A successful retention result must therefore be accompanied by evidence that the clamped members and fastener remain within their approved functional limits. I do not substitute a witness mark or an intact restraint for displacement and damage measurements.

Effective thread engagement must remain adequate after adding the locking configuration. Washers, thicker Nuts, spacers, or a changed head arrangement can reduce available engagement or move the incomplete thread region into the mating component. I exclude chamfers and incomplete threads from the effective length and check blind-hole bottom clearance. The stripping capacity of the actual mating component must be compared with the loads introduced during installation and service, including the upper preload condition.

The comparison between thread stripping and bolt rupture requires representative material and geometry. A locking region can resist rotation while the load-bearing threads deform. In a tapped casting, repair insert, or worn service component, nominal diameter does not establish internal-thread capacity. Where destructive validation is required, the specimen must reproduce the finished mating material, engagement, and assembly condition. The failure location and mode determine what the result actually validates.

Surface treatment introduces a separate delayed-fracture question. For susceptible high-strength material, acid cleaning or electroplating can introduce hydrogen, and a sustained tensile stress can support delayed cracking. A locking feature does not remove that material risk. I require the relevant hardness evidence, finishing history, hydrogen-relief process records where applicable, sustained-load validation, and batch identity. Salt exposure or an attractive coating appearance cannot establish resistance to hydrogen-assisted fracture.

Chemical locking compounds require their own process definition. Surface cleanliness, available cure conditions, substrate interaction, application location, and subsequent temperature or fluid exposure can affect the resulting resistance. These variables must be controlled without obscuring the bolt's finish traceability or changing the torque-preload relationship unnoticed. I evaluate the compound as part of the assembled connection and preserve the actual application record rather than relying on a generic product description.

5 Common Engineering Failures and Root Cause Analysis

Preload decreases while the fastener remains present. The clamped surfaces settle or slide, reducing bolt extension before the secondary restraint reaches its limiting position. The joint loses its intended friction capacity even though no hardware is missing. Prevention requires measuring retained preload and functional movement independently of fastener retention, then correcting the contact or assembly condition responsible for the loss.

The tightening tool reaches its setting before adequate clamp force develops. A locking region or damaged thread consumes rotational effort before full seating and extension occur. The assembly appears complete but begins service with insufficient compression. Prevention requires a configuration-specific torque-preload correlation, confirmation of seating, and appropriate detection of abnormal rotational resistance during installation.

The bolt fractures after rotation has been restrained. Reversing interface movement bends the bolt between its head support and mating thread while the locking feature prevents obvious unwinding. Cyclic bending concentrates stress at a thread root or geometric transition. Prevention requires representative transverse loading, movement measurement, and evaluation of contact support, grip geometry, and the threaded shear-plane location.

A locking compound gives inconsistent retention. Contamination, inadequate surface interaction, or an uncontrolled cure condition creates a variable cured bond. Some specimens rotate after exposure while others remain restrained. Prevention requires documented application and cure conditions, verification on the actual substrate and finish, and assembled testing after the relevant environmental conditioning.

The mating thread strips during installation or vibration. Effective engagement is reduced by added hardware or incomplete threads, while the locking resistance conceals the onset of thread deformation. The bolt can no longer maintain tension. Prevention requires geometry verification, actual mating-material capacity assessment, and a confirmed upper assembly-load boundary.

A coated bolt breaks after apparently successful installation. A susceptible material condition and hydrogen introduced during processing combine with sustained tensile loading. The delay can make the event appear to be a vibration failure. Prevention requires preserving the fracture evidence, reviewing finishing records, and separating delayed-fracture validation from locking and corrosion evaluations.

6 Engineering Specification Checklist

Structural requirements

• Identify whether the connection transfers transverse load through interface friction, fastener bearing, or another verified load path.

• Define the assembled grip, contact geometry, hole clearance, effective thread engagement, and location of any threaded shear plane.

• Verify initial and retained preload requirements against current configuration-specific reports.

• Specify the permitted interface movement and the required post-exposure component condition.

Drive specifications

• Define the tightening method, seating criterion, tool configuration, lubricant condition, and locking-feature resistance.

• Require torque-preload correlation using the actual finished bolt, mating component, and bearing arrangement.

• Define the locking function as rotational resistance, limited rotation, containment, or another explicit outcome.

• Identify permitted reuse and the evidence required after any locking component is reused.

Environmental requirements

• Define representative vibration direction, service sequence, support condition, and combined thermal or fluid exposure.

• Verify locking material compatibility with operating temperature, contamination, and maintenance chemicals.

• Require inspection of fretting, bearing-seat deformation, coating damage, and thread condition after testing.

Safety standards and validation

• Confirm the applicable technical standard and clause before entering compliance requirements.

• Define separate acceptance decisions for retained preload, joint function, fastener retention, and cracking.

• Require material, finishing, assembly, and test records linked to the evaluated specimens.

• Specify the engineering review required after an interrupted test, retightening intervention, or configuration change.

The released specification should describe the exact validated connection and the limits of that validation. A locking feature replacement, lubrication change, altered washer stack, or changed mating material requires assessment against the original load path and evidence. Generic descriptions such as vibration resistant do not define a usable acceptance condition.

7 Evaluating Manufacturer Engineering Capability

For Ningbo yi teng construction machinery CO,LTD, the bolts product page should identify the finished fastener configuration and the supporting joint-validation evidence available for engineering review.

I assess any manufacturer's ability to distinguish bolt material performance from assembled locking performance. Useful evidence includes traceable finished-part reports, controlled friction conditions, documented locking-feature installation, and tests that measure preload and movement together. The engineering team should explain how the test fixture represents the actual connection and how changes are evaluated.

A quality-management record does not establish vibration resistance or preload retention for a particular joint. The relevant certification scope and current status require verification before specification. Technical capability is demonstrated by records that connect the tested configuration, observed failure mechanisms, and acceptance decision.

FAQ AbouT Bolts Vibration Control

Can a locking nut keep a joint functional after preload is lost?

Only if the separately verified joint design remains functional without the lost compression. Rotational resistance can prevent complete fastener loss while the clamped faces still move. Interface friction capacity, fatigue response, and positional stability must therefore be assessed independently.

Does a higher tightening torque improve vibration resistance?

It improves the connection only when it produces an acceptable increase in actual preload. Additional locking friction can consume torque without generating equivalent extension. Excessive preload can overload the bolt, bearing seat, or mating threads, so both assembly boundaries require verification.

Can an unchanged witness mark prove that bolts retained preload?

No, an unchanged witness mark only indicates that visible relative rotation was not detected. Settlement can reduce extension without rotation. A retained-preload measurement and inspection of the functional contact are needed to assess the joint's condition.

Can a bench vibration result be transferred to a machinery attachment?

Only when the relevant geometry, preload, loading, support, and environment are adequately represented. Attached mass and structural flexibility influence joint motion. The engineering report must explain the transfer basis and identify any unvalidated conditions.

Should a delayed fracture automatically be classified as vibration fatigue?

No, the mechanism must be established from fracture evidence and the assembly and material history. Sustained-load cracking, installation overload, and cyclic loading can produce different failure sequences. Surface-treatment records and representative testing help distinguish them.

Share your project parameters for a technical review.
