bolts Joint Settlement: Embedment and Clamp Force Retention

2026-10-12 09:00:00

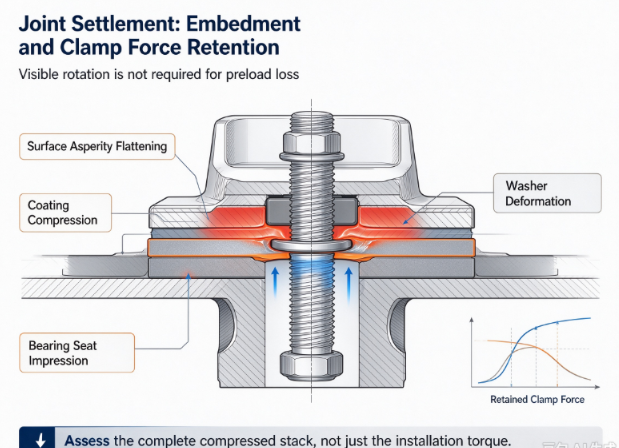

A machinery cover can pass its assembly check and later lose compression without any visible fastener rotation. Surface asperities flatten, a coating compresses, or a supporting layer creeps, allowing the stretched bolts to shorten. I evaluate the complete compressed stack rather than relying on the installation setting. This article examines settlement mechanisms, preload sensitivity, representative conditioning, and the evidence needed to specify a connection that retains its required clamp force.

1 How bolts Work — Core Operating Principles

A bolted connection contains two interacting elastic systems: the fastener in tension and the connected members in compression. Tightening produces their initial deformation. The resulting clamp force remains only while sufficient bolt extension is maintained. If the compressed stack becomes shorter through an irreversible change, the bolt can recover part of its extension and the internal force decreases.

Settlement is the accumulated change at contact regions that occurs after or during tightening. It can include local flattening of surface features, indentation beneath a bearing face, compression of a coating, or seating of an imperfect contact. These changes may be small compared with the overall component dimensions while still being important relative to the bolt's initial extension.

1. Initial thread advancement closes available gaps and establishes contact between the assembled components.

2. Further tightening stretches the bolt and compresses the load-bearing stack.

3. High local pressure develops at asperities, edges, coating layers, and bearing contacts.

4. Some contact regions undergo irreversible deformation during assembly or subsequent exposure.

5. The effective compressed stack shortens, allowing part of the bolt extension to recover.

6. Retained clamp force changes according to the combined compliance and the actual settlement history.

I distinguish contact settlement from fastener rotation. Rotation changes the threaded position, whereas settlement can reduce preload while that position remains unchanged. The distinction matters when selecting a corrective action. A stronger rotational restraint does not prevent a soft bearing layer from compressing. Retightening may temporarily restore force, but it does not establish that the underlying deformation has stabilized.

Creep and elastic recovery also require separate interpretation. Creep is time-dependent deformation under sustained stress in a material susceptible to that behavior at the relevant environment. Elastic compression returns when load is removed. A component can exhibit both, and temperature can affect each differently. I assess the actual stack through its load, time, and environmental history rather than assigning all preload loss to a single cause.

No technical standards or verified specification appendix were supplied. The test method, numerical limits, and any governing clause require verification before specification.

2 Key Components and Engineering Functions

The settlement assessment begins with a stack drawing that identifies every load-bearing layer. I include coatings, washers, spacers, inserts, and any compliant element whose compression affects bolt extension. An omitted layer can make the predicted stiffness and retained-force response unrepresentative of the actual assembly.

Material requirements must address the function at the contact, not only the nominal strength of the component. Bearing resistance, surface condition, layer thickness, and time-dependent deformation can govern the connection before the bolt approaches its tensile limit. These parameters require evidence for the finished configuration.

Verify all parameters against current test reports and applicable standards before use in specifications.

A longer or more compliant bolt can respond differently to a given settlement displacement, but geometry changes introduce other effects. Grip, support, fatigue loading, installation access, and thread engagement must still be checked. I do not use compliance as an isolated improvement without validating the complete connection.

3 Performance Parameters and Testing Standards

A useful test records force against time and exposure, beginning from a clearly defined assembly state. The first measurement must identify whether seating, any approved dwell, and tool removal have occurred. Otherwise, two reports may compare different stages of the same relaxation process and appear to disagree.

I establish the required retained clamp force from the joint's function. A connection that relies on friction, alignment, or support of another component needs a corresponding minimum condition. The upper assembly boundary must protect the bolt, mating thread, and bearing materials. Neither boundary can be assigned without verified configuration data and the applicable engineering assessment.

Verify all parameters against current test reports and applicable standards before use in specifications.

Temperature-dependent sensor output must be separated from actual force change. A reading taken during heating may reflect both joint behavior and measurement sensitivity. I use an appropriate correction or reference procedure and preserve the temperature history. A final ambient reading cannot reveal every transient loss or overload that occurred during conditioning.

The report should identify whether the specimen was disturbed between readings. Loosening, repositioning, removing a sensor, or applying additional tightening changes the contact history. Measurements after such an intervention cannot be presented as uninterrupted retention data for the original assembly.

4 Protection Mechanisms and Engineering Logic

The primary protection against settlement-related failure is a validated compression path whose permanent deformation remains compatible with the required retained force. I examine where pressure concentrates and whether each material can support that pressure under the actual environment. A broad nominal contact does not guarantee broad load transfer. Edge contact, machining waviness, a distorted washer, or a thick surface layer can localize the reaction and accelerate irreversible change.

The relationship between settlement and preload loss depends on combined compliance. A stiff, short assembly can lose a significant part of its extension when its contacts move, while a different configuration can respond less strongly to the same displacement. The practical decision requires measured or validated stiffness and representative settlement data. I avoid assuming that a particular grip length, washer style, or bolt size provides sufficient retention without evaluating its associated contact and service loads.

Torque-preload correlation must include settlement during the tightening event. A force reading at tool shutoff can differ from the reading after the tool is removed and the contact stabilizes. Dry, lubricated, plated, and reused conditions can change both friction and surface deformation. I therefore record the assembly sequence and a defined measurement time, then correlate the applied setting with the force that remains at the specified reference state.

Batch variability matters because surface condition is not represented by a single mean result. Coating variation, bearing-seat finish, and mating-thread friction can shift the produced preload and subsequent loss. The validation should distinguish specimens that begin with low force from specimens that lose an excessive amount after initially acceptable assembly. Those are different mechanisms and may require different controls. The lower retained-force result must satisfy the functional requirement without driving the upper assembly condition into overload.

Impact loading can accelerate contact change by repeatedly redistributing pressure. In machinery joints, reversing shear or local opening can cause surfaces to re-seat, fret, or indent. I assess actual load direction, grip geometry, and whether a threaded region lies in the working shear plane. Cyclic validation must examine both force retention and damage, because a joint can retain a measurable residual preload while accumulating cracks or changing its contact load path.

Once compression falls, the fastener's service-load response can change. A joint that initially transferred transverse force through friction may begin carrying it through bolt-to-hole contact. Local opening can also increase the variation in fastener tension. This is why a settlement test alone cannot establish fatigue performance. The required evidence connects the retained state to representative operating loads and includes inspection of bearing seats, interfaces, and fatigue-sensitive transitions after exposure.

Effective thread engagement must be checked within the settled configuration and the approved assembly condition. Chamfers, incomplete turns, and blind-hole clearance affect the actual reaction path. A bolt that bottoms before reaching the intended bearing state can produce misleading rotational resistance without useful compression. In a softer mating component, thread deformation can itself contribute to displacement. I compare the capacity of the actual engaged threads with the bolt's relevant load capability rather than relying on nominal thread depth.

Representative mating-component testing must preserve the material and geometry that determine failure. A strong laboratory nut cannot validate a tapped service housing if the housing's internal thread is the limiting element. The comparison between stripping and bolt rupture should identify which mechanism occurs and at what configuration-specific load. Any previously damaged or repaired thread needs its own assessment, because restoring apparent thread fit does not demonstrate restored bearing or stripping capacity.

Surface treatment creates two separate engineering questions. A coating may compress or change friction at the contact, affecting preload retention. A finishing process may also introduce hydrogen into susceptible material, creating delayed-fracture risk under sustained tension. These mechanisms require different evidence. I review finished hardness, acid-cleaning and electroplating history, hydrogen-relief records where relevant, sustained-load validation, and batch traceability. Corrosion appearance and salt-exposure results do not establish either retained force or freedom from delayed cracking.

Retightening is an intervention that must be engineered. It may restore extension after an approved settling period, but it can also introduce overload if the friction state or contact stiffness has changed. Repeated tightening can alter thread and bearing surfaces further. I require a defined reason, method, reference state, and acceptance check for any retightening operation. The original retention test and the post-intervention test must remain distinguishable in the record.

5 Common Engineering Failures and Root Cause Analysis

Clamp force falls without visible rotation. Surface asperities, a coating, or a bearing layer undergo permanent compression, allowing bolt extension to recover. The joint loses friction capacity or functional support while witness marks remain aligned. Prevention requires representative settlement measurement, assessment of the compressed stack, and verification of the force retained after the specified conditioning sequence.

A bearing seat develops a deep local impression. Edge contact or insufficient local material resistance concentrates pressure beneath the head, nut, or washer. The damaged contact shortens the stack and redistributes the reaction. Prevention requires verifying bearing geometry, substrate condition, support area, and deformation under the upper approved assembly force.

A short, stiff connection becomes highly sensitive to small contact changes. Limited elastic extension leaves little displacement reserve relative to the observed settlement. The remaining force can drop below the joint's functional requirement. Prevention requires evaluating combined compliance and the actual deformation history, then validating any geometry change against fatigue, engagement, and access requirements.

Repeated retightening eventually overloads a component. The friction and contact conditions change after each operation, so the same setting no longer produces the original force. The bolt, mating thread, or bearing material is driven beyond its approved condition. Prevention requires a controlled intervention procedure and a verified correlation for the relevant reassembly state.

Apparent relaxation is partly a measurement artifact. Sensor temperature response, reference movement, or fixture settlement changes the reported value. An incorrect diagnosis can lead to unnecessary or damaging retightening. Prevention requires confirming the measurand, checking reference stability, and separating instrument behavior from actual bolt and joint deformation.

A delayed fracture follows a prolonged retention test. A susceptible finished material and hydrogen exposure combine with sustained tensile loading. The event may be mistaken for excessive assembly force or creep. Prevention requires preserving the fracture surface and reviewing material and finishing evidence independently of the settlement measurement.

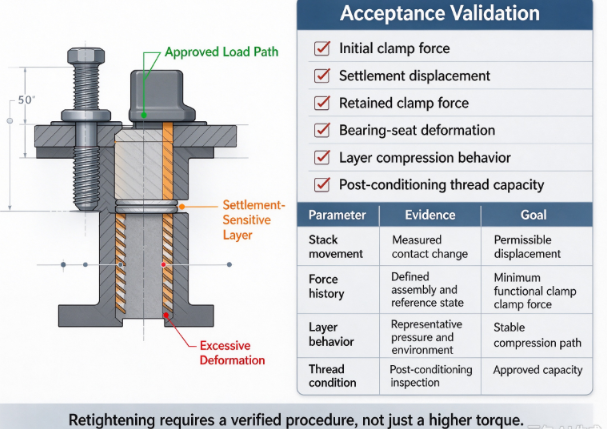

6 Engineering Specification Checklist

Structural requirements

• Identify every load-bearing member, coating, washer, spacer, and intermediate layer in the compressed stack.

• Verify the bolt and joint compliance used to assess settlement sensitivity.

• Define initial and retained clamp-force requirements using current configuration-specific evidence.

• Specify effective engagement, bottom clearance, bearing support, and permissible permanent deformation.

Drive specifications

• Define the seating event, tightening method, tool removal state, and reference time for the initial measurement.

• Require torque-preload correlation for the actual dry, lubricated, coated, or approved reassembly condition.

• Define whether retightening is permitted and the separate procedure and verification it requires.

• Identify the controls for abnormal seating, bottoming, damaged threads, and interrupted assembly.

Environmental requirements

• Define the sustained-load dwell, temperature exposure, fluid contact, and service cycling relevant to the stack.

• Verify coating compression and intermediate-layer behavior in the finished condition.

• Require post-conditioning examination of bearing indentation, fretting, layer damage, and thread deformation.

Safety standards and validation

• Confirm the applicable standard and clause before specifying compliance or a numerical acceptance limit.

• Require a measurement method that addresses temperature effects, reference stability, and instrumentation influence.

• Keep uninterrupted retention data separate from results obtained after retightening or disassembly.

• Link finished-material reports, surface-treatment records, and test specimens through batch identity.

The specification must state when the connection is required to meet its clamp-force condition. A force measured immediately after tightening, after an approved dwell, and after service conditioning represents different states. The engineering acceptance decision should use the state corresponding to the required function and preserve the evidence supporting it.

7 Evaluating Manufacturer Engineering Capability

For Ningbo yi teng construction machinery CO,LTD, the bolts product page should connect finished-part information with the contact and preload-retention evidence relevant to the proposed assembly.

I assess any manufacturer's ability to explain how surface condition, heat treatment, coating, and mating geometry affect the compressed stack. Useful records include finished dimensions, material condition, assembly correlation, and force histories taken through representative conditioning. The report should identify interventions and distinguish fastener behavior from fixture or support deformation.

Certification claims require verified scope and current status before specification. A general management certificate cannot establish acceptable settlement for a particular washer, coating, or housing. The engineering capability that matters is the ability to produce configuration-specific evidence and define the conditions under which it remains applicable.

FAQ AbouT Bolts Joint Settlement

Can bolts lose clamp force without becoming visibly loose?

Yes, permanent compression of the joint stack can reduce bolt extension without rotation. Witness marks therefore cannot establish retained force. The relevant assessment measures force and examines the contact changes responsible for its reduction.

Does adding a washer always reduce settlement?

No, the washer must provide suitable material resistance, geometry, and support. A thin or poorly seated washer can deform and add another settlement interface. Its effect must be validated in the actual compressed stack.

Should a joint always be retightened after an initial dwell?

No, retightening must be part of an approved and verified assembly procedure. The friction condition may change after the first tightening. A repeated setting can therefore produce a different force and overload a component.

Can a room-temperature retention test validate hot operation?

Only when the relevant material and contact behavior at the operating environment is adequately represented. Temperature can change stiffness, layer deformation, and time-dependent response. Transient force conditions also require consideration when they affect joint function.

How should settlement be separated from bolt material relaxation?

Use measurements and inspections that distinguish contact displacement from changes in the fastener itself. Stack movement, bearing impressions, and the material's load-temperature history provide complementary evidence. A force history alone may not uniquely identify the mechanism.
