bolts for Track Shoes: Seating and Joint Validation

2026-10-16 09:00:00

A track shoe can appear securely installed while debris beneath its mounting face prevents stable contact with the links. After the machine works, the contact changes and the connection begins moving under reversing ground loads. I evaluate bolts through the complete shoe-to-link assembly rather than the tightening indication alone. This article examines seating, preload, hole condition, service loading, and the evidence required to specify a reliable track attachment.

1 How bolts Work — Core Operating Principles

The track shoe receives forces from ground contact and transfers them into the track links through its mounting connection. The fasteners create compression between the connected members. Their function is therefore inseparable from the shoe geometry, link support, bearing seats, and contact condition. I identify the intended transfer mechanism before assessing the hardware because a connection designed around stable clamPing can behave differently after movement begins.

During tightening, thread advancement first closes available clearance and establishes seating. Further advancement stretches the bolt and compresses the connected stack. The Nut or internal thread reacts the tensile force, while the head and its bearing surface transfer the opposing reaction into the shoe. The resulting preload depends on the actual friction and compliance of this complete arrangement.

1. Confirm that the shoe, links, and fasteners represent the intended assembled configuration.

2. Establish the specified contact condition between the shoe mounting face and the supporting links.

3. Advance the fasteners until their bearing surfaces reach the intended seating position.

4. Apply the approved tightening process to generate bolt extension and joint compression.

5. Verify that the completed assembly maintains its required contact and geometry.

6. Evaluate retained preload and movement under representative ground-force directions and operating events.

Ground forces do not act only along the bolt axis. Traction, braking, turning, uneven support, and localized contact can impose transverse forces and moments. Shoe width and grouser geometry influence where those forces enter the connection. The links also move as part of the articulated track system. A rigid laboratory plate cannot automatically reproduce the support and loading of the installed attachment.

If the contact remains stable, load transfer can follow the intended compressed interface and structural reaction. If the shoe slips, hole clearance can be taken up and the bolt may experience direct bearing or bending. The working shear plane can then become important, particularly if it intersects a threaded region. This transition changes the mechanism being validated.

No technical standards or verified specification appendix were supplied. The applicable equipment procedure, test document, numerical limits, and any governing clause require verification before specification.

2 Key Components and Engineering Functions

I assess the shoe attachment as a group of interacting components. An acceptable bolt material does not compensate for an unstable link contact or a damaged mounting hole. Each component requires a finished material description, a dimensional identity, and a performance parameter connected to its actual role in the assembly.

Verify all parameters against current test reports and applicable standards before use in specifications.

The condition of service components must be distinguished from new-part dimensions. A shoe can have apparently usable holes while its mounting face has worn or distorted. Likewise, a link can retain recognizable geometry while its bearing surface no longer supports the shoe evenly. I record these conditions before deciding whether the original assembly validation remains applicable.

Any optional hardware must be explicitly identified. Adding a washer or changing a nut can alter grip length, effective engagement, bearing friction, and the position of the threaded region. The revised stack needs an engineering comparison rather than an assumption that the additional hardware improves the connection.

3 Performance Parameters and Testing Standards

The acceptance basis must identify the machine configuration and the track attachment being evaluated. Shoe geometry, link type, mounting pattern, service condition, and the approved fastener stack define the specimen. A nominal bolt diameter alone cannot establish compatibility or performance. I require the test report to describe the complete assembly and its preparation.

The test plan should include representative force directions and support conditions. Traction loading, turning-related forces, and localized ground contact can challenge different regions of the mounting interface. The measured outputs should reveal whether the attachment preserves its intended function, including retained preload, relative movement, hole condition, and damage at fatigue-sensitive locations.

Verify all parameters against current test reports and applicable standards before use in specifications.

Measurement references must distinguish shoe movement from fixture movement. A probe attached to a flexible support can report the laboratory structure's deflection rather than movement at the shoe-to-link interface. Instrumentation can also change the grip or stiffness. I document those effects and establish an appropriate reference before interpreting the result.

The exposure record must identify any retightening or intervention. If the attachment is retightened after conditioning, the original preload-retention test ends at that event. The subsequent result belongs to a different assembly history. An engineering report must preserve both states rather than presenting the final reading as uninterrupted performance.

4 Protection Mechanisms and Engineering Logic

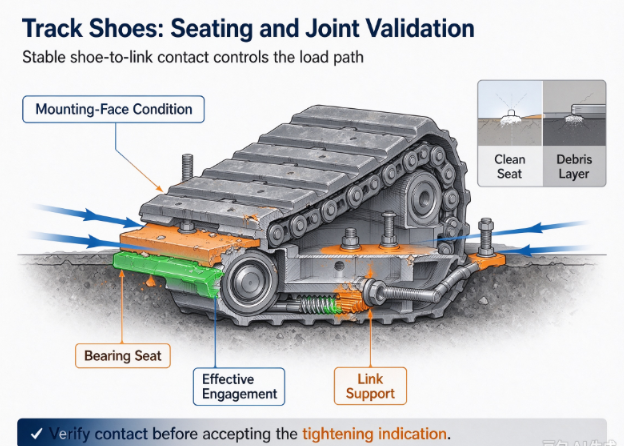

The primary protection mechanism is stable contact combined with sufficient retained compression for the intended load transfer. A debris layer or an unsupported high point can carry assembly force temporarily and then collapse or move during operation. Bolt extension decreases as the contact stack changes. I therefore require a defined mounting-face condition and verification that the shoe seats against the intended structural support before the tightening process is accepted.

Torque and actual preload must be correlated for the finished hardware and assembly condition. Dry, lubricated, plated, and previously assembled surfaces can produce different forces from the same setting. The bearing interface is part of that relationship, so a changed head seat or added washer can invalidate an existing correlation. I examine measured torque-force behavior and its variation across representative specimens, including the finished friction condition that will be used in production or service.

The lower assembly condition must retain enough useful compression after seating changes and representative exposure. The upper condition must protect the bolt, mating threads, shoe bearing seat, and supporting links. Increasing the setting to compensate for uncertain friction can overload the freely rotating specimens. The acceptable process must satisfy both boundaries using current evidence. A single assembly with an acceptable final torque cannot establish the range of clamp force produced by the process.

Impact and fatigue validation must follow the actual ground-force path. Shoe contact can introduce transverse force and a moment into the mounting connection. The grip length, link support, mounting pattern, and location of the threaded shear plane influence the bolt's response. I measure interface movement alongside retained preload and inspect fatigue-sensitive transitions after cyclic exposure. Strength designation is a material classification, not evidence that a specific track attachment withstands its operating sequence.

Movement can progressively change the attachment. Once clearance is taken up, hole bearing can increase and the bolt may bend between support locations. Fretting can remove surface material and alter contact pressure. A worn hole can then increase available displacement during the next reversal. The validation must therefore examine the conditioned geometry and damage, not only whether the shoe remained attached through the test. Fastener presence and acceptable structural function are different outcomes.

Effective engagement must be calculated from the assembled geometry. Chamfers and incomplete threads do not contribute in the same way as fully formed engaged threads. A changed shoe thickness, support element, or nut geometry can reduce available engagement. Where the configuration uses a blind internal thread, bottom clearance must be confirmed independently of seating. I compare the stripping capacity of the actual mating material with the relevant bolt loading capability and the upper assembly force.

Representative capacity testing must preserve the real mating component. An ideal laboratory nut cannot validate an internal thread in a service link or repair insert. The report must identify whether the limiting event was bolt rupture, thread stripping, surrounding-material failure, or fixture failure. If worn components are permitted, their condition and acceptance limits need separate evidence. Recognizable thread fit does not establish that the original load-bearing capacity remains available.

Surface treatment requires a separate delayed-fracture assessment for susceptible high-strength material. Acid cleaning and electroplating can introduce hydrogen, while sustained bolt tension provides a relevant stress condition. I review finished hardness, cleaning and plating history, hydrogen-relief records where applicable, sustained-load validation, and batch traceability. A corrosion exposure result or a uniform coating appearance cannot establish resistance to hydrogen-assisted cracking.

Field contamination also needs a controlled response. Penetrating fluids, grease, and abrasive material can change thread or bearing friction during maintenance. The specification must identify the permitted condition and the procedure for restoring it. I do not transfer an assembly setting from a clean, finished configuration to an uncontrolled contaminated joint. Any cleaning or lubrication change must be assessed against the measured torque-preload relationship.

Inspection should connect visible evidence with a defined engineering decision. Witness marks can indicate rotation but do not measure retained preload. Fretting marks can indicate movement but need interpretation against the intended contact and load path. I specify which observations trigger dimensional examination, force verification, component replacement, or further investigation. This preserves the relationship between the installed condition and the original validation.

5 Common Engineering Failures and Root Cause Analysis

Preload falls after the first operating period. Debris, surface high points, or a compressible layer beneath the mounting face changes under load. The bolt recovers part of its extension and useful compression decreases. Prevention requires defined contact preparation, seating verification, and retained-preload measurement after representative conditioning.

The shoe moves despite a completed tightening indication. The actual force produced is below the required condition because friction differs from the validated assembly. Reversing ground loads initiate interface movement. Prevention requires configuration-specific torque-force correlation and control of thread and bearing conditions.

A bolt develops bending fatigue. Interface slip takes up clearance and introduces alternating bearing reactions along an unsupported or threaded region. The connection remains attached while a crack grows. Prevention requires representative load reversals, movement measurement, and assessment of grip support and threaded shear-plane location.

Mounting holes become progressively elongated. Repeated movement transfers load through localized bolt-to-hole contact. The increased clearance then permits more displacement and impact at reversal. Prevention requires preserving the intended load path and applying verified service-condition limits to both shoes and links.

The mating thread loses capacity. Reduced effective engagement or damaged service threads cannot react the assembly and operating tension. The thread deforms or strips. Prevention requires assembled geometry verification and capacity evidence for the actual mating material and condition.

A finished bolt fractures after apparently successful installation. Susceptible material, hydrogen exposure, and sustained tension create delayed cracking that may be mistaken for operating fatigue. Prevention requires preserving fracture evidence and reviewing finishing-process and sustained-load records independently of the track-cycle result.

6 Engineering Specification Checklist

Structural requirements

• Identify the machine configuration, shoe geometry, supporting links, mounting pattern, and complete fastener stack.

• Define the intended transverse load-transfer mechanism and the permitted interface movement.

• Verify grip length, bearing support, effective engagement, and any threaded shear-plane location.

• Specify acceptance limits for service-component contact, mounting-hole condition, and permanent deformation.

Drive specifications

• Define the approved tightening method, seating condition, tool arrangement, and friction state.

• Require measured torque-preload correlation for the actual finished hardware and bearing arrangement.

• Define permitted reassembly and any separate validation required for reused or contaminated components.

• Identify the controlled response to abnormal resistance, incomplete contact, and interrupted assembly.

Environmental requirements

• Define representative traction, braking, turning, localized contact, and combined operating events.

• Identify permitted contamination, cleaning, lubrication, and surface-treatment conditions.

• Require examination of fretting, hole deformation, coating damage, and cracks after conditioning.

Safety standards and validation

• Confirm the applicable technical document and clause before specifying compliance or numerical limits.

• Require separate acceptance decisions for initial preload, retained preload, movement, and damage.

• Link material, finishing, dimensional, assembly, and test records to the evaluated specimens.

• Define the engineering review required after a shoe, link, fastener-stack, or assembly-process change.

The released specification should identify the exact validated attachment and its permitted service condition. A wider shoe, altered support face, repaired thread, or changed hardware stack may change demand or capacity. Previous acceptance can be transferred only when the engineering comparison supports that transfer.

7 Evaluating Manufacturer Engineering Capability

For Ningbo yi teng construction machinery CO,LTD, the bolts product page should identify the finished track-fastener configuration and the supporting dimensional, material, and assembly evidence available for engineering review.

I evaluate any manufacturer's ability to connect fastener reports with the complete shoe-to-link assembly. Relevant capability includes finished geometry control, traceable material condition, friction correlation, and representative mating-component testing. The engineering report should explain the fixture's support condition and distinguish hardware retention from acceptable joint function.

Any required certification needs verified scope and current status before specification. A management-system record does not establish preload retention or fatigue resistance for a particular track attachment. The useful evidence identifies the tested configuration, observed mechanism, and conditions under which the result remains applicable.

FAQ AbouT Bolts for Track Shoes

Can an unchanged witness mark prove adequate retained preload?

No, the stack can settle without visible fastener rotation. A witness mark indicates only the observed angular relationship. Force verification and contact inspection are needed when retained compression is part of the acceptance requirement.

Can a torque setting be transferred between different shoe configurations?

Only when the finished friction condition, stack geometry, mating components, and required preload remain adequately represented. Shoe thickness and bearing details can change the result. The transfer needs configuration-specific engineering evidence.

Should worn mounting holes be corrected by installing stronger bolts?

No, stronger material does not restore the intended contact or remove excessive movement. Worn geometry can introduce direct bearing and bending. The component condition must be evaluated against verified service limits.

Can laboratory cycling use a rigid plate instead of supporting links?

Only when the substitute reproduces the relevant support and load response. Link flexibility and mounting contact can influence shoe movement. The report must explain why the fixture represents the installed attachment.

Why should corrosion and delayed-fracture evidence be reviewed separately?

They evaluate different mechanisms. Corrosion testing addresses a defined exposure condition, while delayed cracking depends on material susceptibility, hydrogen availability, and tensile stress. Coating appearance cannot establish both outcomes.
