bolts for Cutting Edges: Seat Fit and Impact Validation

2026-10-19 09:00:00

A replacement cutting edge can reach its installation torque while a mismatched recessed head contacts only a narrow ring inside the seat. Ground impact then deforms that contact and reduces useful compression. I assess bolts through head fit, blade support, effective engagement, and the changing geometry of the wear part. This article explains how the completed cutting-edge connection should be validated before its assembly process is specified.

1 How bolts Work — Core Operating Principles

A cutting edge receives load through its working surface and transfers it into the supporting blade structure. fasteners maintain the intended relationship between those components. The attachment can experience transverse force, bending moment, localized impact, and changes in contact as the edge wears. I begin by identifying where the support reaction should occur and whether the fasteners are intended to maintain compression, carry bearing load, or perform both functions.

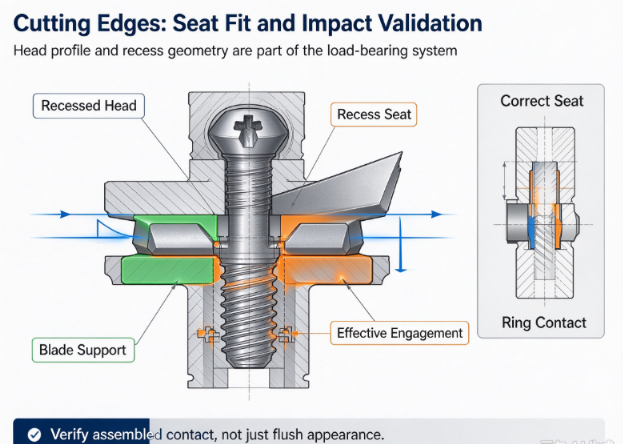

Where a recessed or countersunk head is used, its geometry is part of the load-bearing system. The head must reach the intended seat without interference at an unintended location. A correct thread size does not establish compatibility between the head and recess. The seating surface can influence bearing pressure, alignment, friction, and the amount of movement that produces useful bolt extension.

1. Confirm the cutting edge, support structure, recessed seat, and fastener identities against the approved configuration.

2. Establish the intended blade-to-edge support contact without trapped debris or unauthorized intermediate layers.

3. Verify that the head reaches its designed seat and that any locating feature engages as intended.

4. Advance the mating thread and generate the approved bolt extension and joint compression.

5. Check the completed edge position, support contact, and effective engagement.

6. Validate the attachment under representative working loads and relevant wear-stage geometry.

The cutting force can act at a distance from the support contact. This offset produces a moment that can rotate the edge or blade locally. If support is incomplete, the fastener may experience additional tension or bending. Local ground contact can also load one region before the rest of the cutting edge is engaged. Uniform division of the total force among the bolts is therefore an assumption requiring justification.

Wear changes the working geometry. The location of load application, remaining section, and protection around the head can differ from the new-part condition. A test on a new edge does not automatically establish performance throughout its permitted wear state. I define the relevant configurations before transferring acceptance across the service period.

No technical standards or verified specification appendix were supplied. Head-seat limits, assembly values, service-wear criteria, and governing test clauses require verification before specification.

2 Key Components and Engineering Functions

The head, recess, edge support, and mating thread must be evaluated together. Their compatibility determines whether assembly effort becomes useful compression or local deformation. I examine the finished geometry rather than interpreting a nominal fastener type as a complete fit specification.

Verify all parameters against current test reports and applicable standards before use in specifications.

A locating feature should not be credited with carrying working load unless that function is established. A square neck, formed shoulder, or support lip may serve assembly or positioning purposes, structural purposes, or both. Its actual contact and capacity determine the engineering interpretation.

Service inspection must also identify loss of support material. A head can remain intact while the surrounding recess wears, chips, or becomes distorted. A new fastener installed in that recess may not reproduce the validated bearing condition. I assess the wear part and its support rather than accepting the replacement bolt alone.

3 Performance Parameters and Testing Standards

Dimensional inspection should establish head-seat compatibility before load testing. Relevant features include the bearing profile, transition clearance, recess depth, assembled head position, and any antirotation engagement. The numerical limits must come from the approved drawing and current reports. An improvised fit criterion cannot substitute for the missing specification basis.

I then correlate the assembly process with useful preload and verify the released geometry. The test must distinguish head seating from thread resistance and bottoming. Representative loading should include the actual working-force direction, support stiffness, and edge condition. When wear-stage validation is required, the tested geometry must be defined and traceable.

Verify all parameters against current test reports and applicable standards before use in specifications.

Contact assessment must not be confused with cosmetic flushness. A head can appear correctly positioned while bearing on an unintended edge inside the recess. Conversely, its intended assembled position may not be visually flush. I use the drawing and physical contact evidence to determine fit rather than assigning a universal appearance rule.

The test record should preserve the tightening sequence and the condition of neighboring fasteners. Plate flexibility can cause later tightening to change an earlier bolt's force. Where that interaction is relevant, I verify the completed group rather than treating each isolated tool cycle as the final assembly condition.

4 Protection Mechanisms and Engineering Logic

The first protection mechanism is compatible bearing geometry. Useful preload requires a stable reaction beneath the head and at the mating thread. If a recessed head bears on a narrow ring, the local pressure can be much higher than the apparent contact area suggests. Subsequent deformation changes the compressed stack and can reduce bolt extension. I require evidence that the intended seat carries the reaction without unacceptable permanent change.

The head transition also needs clearance and support appropriate to the design. Contact at a radius or geometric transition can introduce a stress concentration that is absent from a simple axial assessment. A recess with the correct nominal opening can still interfere at that location. I evaluate the finished profiles and the assembled position, then connect those measurements to the load test. Nominal naming cannot establish this compatibility.

Torque and actual preload must be correlated for the specific seat and friction state. Dry, lubricated, plated, and reused conditions can change thread and head-seat resistance. A tapered or recessed contact can make seating history particularly relevant. Some assembly effort can be consumed by local deformation or incomplete seating rather than useful extension. I record force development and the final retained state, not only the peak torque reached by the tool.

Batch variation must be included in the acceptance basis. Small changes in recess geometry, coating, or bearing condition can shift the generated force and its retention. The lower assembly condition must maintain the required support after representative exposure. The upper condition must remain acceptable for the bolt, recess, nut, and supporting structure. Raising the setting to compensate for a poorly controlled seat can overload specimens that seat more freely.

Impact and fatigue verification must reproduce the edge's working-force path. The blade support, grip length, load offset, and threaded shear-plane location determine whether the fastener sees tension, bending, or direct bearing. I examine interface movement, local rotation, and retained preload through cyclic exposure. Material strength designation alone does not establish resistance to a ground-contact sequence that changes the connection's support and reaction.

Wear-stage geometry can change both demand and capacity. Loss of material around the working edge alters its section and can change the location of contact with the ground. Wear around a recess can reduce head protection or support. The specification must identify the permitted condition and the evidence supporting it. A visually intact fastener does not prove that the remaining wear part can preserve the validated load path.

Effective engagement must be derived from the complete stack. A thicker replacement edge, additional support hardware, or changed nut can reduce fully formed engaged length. Chamfers and incomplete threads must be excluded. Blind-hole bottom clearance requires independent verification where applicable. I compare the actual mating-thread stripping capacity with the relevant bolt loading capability and the maximum approved assembly and service demand.

Destructive validation must use representative mating material and geometry. A strong test nut cannot establish capacity in a softer support or repaired internal thread. The report should identify the observed limiting mechanism and any deformation preceding failure. If a cutting-edge configuration includes an antirotation feature, its function during the capacity test also needs definition. A test that bypasses the intended reaction path has limited relevance.

Surface treatment creates a separate hydrogen-assisted fracture question. Susceptible high-strength material can absorb hydrogen during acid cleaning or electroplating, and sustained tension after assembly can support delayed cracking. I review finished hardness, cleaning and plating controls, hydrogen-relief records where relevant, sustained-load validation, and specimen batch identity. Corrosion exposure and coating appearance do not establish resistance to delayed fracture.

Corrective action must address the mechanism rather than the appearance. If a head seat deforms, the response may require geometry or support correction. If the edge rocks, the blade contact needs review. If preload varies, the assembly correlation and friction controls need assessment. Installing stronger bolts or applying more torque does not by itself resolve those mechanisms and can transfer failure to the recess or mating thread.

5 Common Engineering Failures and Root Cause Analysis

The recessed seat deforms after initial use. A mismatched head profile concentrates the bearing reaction on a narrow region. The stack shortens and preload decreases. Prevention requires finished-profile verification, assembled contact assessment, and load validation of the actual head-seat combination.

The edge rocks against the blade support. Incomplete contact or distorted support leaves the fasteners reacting an unintended moment. Cyclic rocking increases tension or bending. Prevention requires verifying the support geometry and measuring movement under representative working-force directions.

A head transition develops a crack. Recess interference or an inclined bearing reaction combines with service loading at a geometric stress concentration. Prevention requires transition clearance verification and assessment of the actual combined-load condition.

A replacement assembly has inadequate engagement. The stack thickness or mating component differs from the qualified configuration. Fully formed engaged threads cannot support the required reaction. Prevention requires assembled engagement measurement and capacity evidence for the actual mating material.

Wear exposes an unvalidated support condition. Material loss changes the working-force location or the bearing support around the head. A new-part test no longer represents the attachment. Prevention requires defined wear-stage acceptance and validation of relevant service geometry.

A coated fastener fractures after a normal assembly cycle. A susceptible material and hydrogen exposure create delayed cracking under sustained tension. Prevention requires preserving fracture evidence and reviewing finishing-process validation separately from seating and impact performance.

6 Engineering Specification Checklist

Structural requirements

• Identify the cutting edge, blade support, head profile, recess geometry, and complete fastener stack.

• Define intended support contact, load-transfer mechanism, and permitted edge movement.

• Verify transition clearance, effective engagement, grip support, and threaded shear-plane location.

• Specify the new and permitted worn configurations covered by the engineering validation.

Drive specifications

• Define the tightening method, head-seating criterion, tool configuration, and controlled friction condition.

• Require torque-preload correlation with the actual recessed bearing arrangement.

• Verify the completed fastener group where tightening interaction affects retained force.

• Define abnormal-seat detection, interruption recovery, and permitted reassembly conditions.

Environmental requirements

• Define representative ground impact, working-force directions, load reversals, and abrasive exposure.

• Identify permitted cleaning, lubricant, coating, and contamination conditions.

• Require post-exposure inspection of recess deformation, support wear, fretting, and cracks.

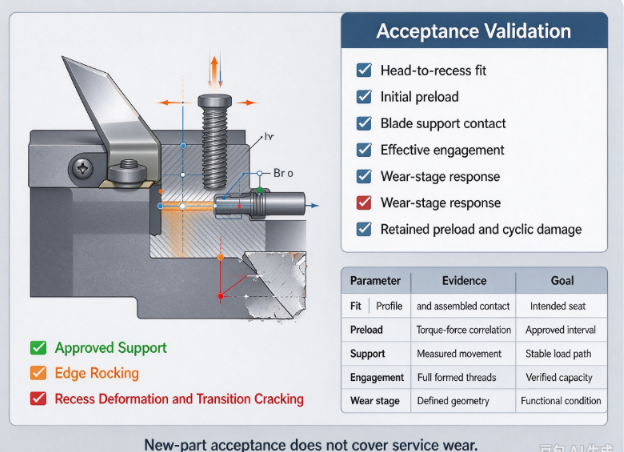

Safety standards and validation

• Confirm the governing drawing, technical document, and applicable clause before specification.

• Define separate acceptance criteria for fit, preload, movement, engagement, and cyclic damage.

• Require traceable material, finishing, dimensional, assembly, and validation records.

• Review any head, recess, edge thickness, support, or wear-limit change against the original evidence.

The specification should make the head-seat compatibility explicit. A generic description such as Blade Bolt does not establish fit, bearing support, or permitted service geometry. The accepted configuration must be identifiable from the drawing and test records so that replacement and maintenance preserve the validated connection.

7 Evaluating Manufacturer Engineering Capability

For Ningbo yi teng construction machinery CO,LTD, the bolts product page should identify finished head geometry and the material and assembly evidence relevant to the proposed cutting-edge connection.

I assess any manufacturer's ability to control bearing profiles, geometric transitions, surface condition, and batch identity. Useful engineering support includes representative head-seat measurements, torque-force correlation, and mating-thread capacity evidence. Reports should explain the observed failure mode and the wear conditions included in validation.

Any certification claim requires verified scope and current status before specification. A management-system record does not establish compatibility with a particular recess or blade support. The technical evidence must connect the finished fastener with the actual assembled application.

FAQ AbouT Bolts for Cutting Edges

Does a flush head prove correct seating?

No, appearance alone does not identify the load-bearing contact inside the recess. The head can contact an unintended ring or transition. Finished-profile inspection and assembled contact assessment establish whether the intended seat is engaged.

Can additional torque correct a mismatched recess?

No, additional torque can deform the recess or overload another component. It does not establish compatible bearing geometry. The mismatch must be assessed and corrected through the approved configuration.

Can new-part testing cover the complete wear period?

Only when the relevant worn geometry remains adequately represented by the validation. Wear can change support and working-force location. The permitted service condition needs a defined acceptance basis.

Why can a thicker replacement edge reduce connection capacity?

It can reduce effective engagement or change grip and support geometry. The same bolt may no longer establish the qualified reaction path. The complete replacement stack must be checked.

Should an antirotation feature be assumed to carry working shear?

No, its structural function must be established by geometry and capacity evidence. Some features primarily assist assembly or positioning. Crediting an unverified load path can underestimate fastener demand.
