Thread Rolling After Heat Treatment: bolt Root Integrity

In failure reviews for fatigue-critical mechanical fastening, I often see a hardened threaded part whose rolled root contains microcracking or unfavorable geometry after an unverified process change. The final damage may look like a simple broken fastener, but the engineering sequence begins earlier—with material identity, joint geometry, manufacturing integrity, installation behavior, or a changing service environment. This article develops thread rolling after heat treatment from that mechanism rather than from marketing claims.

The verified product data are deliberately narrow: stainless steel 904L Hex bolt, M3–M160, non-standard capability, and execution to DIN, ANSI, GB, or an approved non-standard drawing. No strength class, proof load, tensile value, hardness, torque coefficient, fatigue limit, corrosion-life value, coating, tolerance set, or exact standard number is supplied. Verify every missing parameter against the manufacturer's current test report before specification.

How thread rolling after heat treatment Controls the Load Path

Thermal movement alters the elastic balance whenever the bolt and clamped stack have different expansion behavior or temperature gradients. Heating can increase or decrease clamp force depending on relative expansion and stiffness; cooling can reverse the direction. Repeated cycles can combine with embedment, interface creep, or localized yielding to create progressive preload loss.

Environmental exposure also changes mechanics indirectly. Corrosion products can lock threads, deposits can create false seating, and crevice attack can reduce the load-bearing section below a shielded interface. A corrosion-resistant alloy choice is useful only when material identity, joint geometry, stress, temperature, contaminants, and maintenance access are reviewed together.

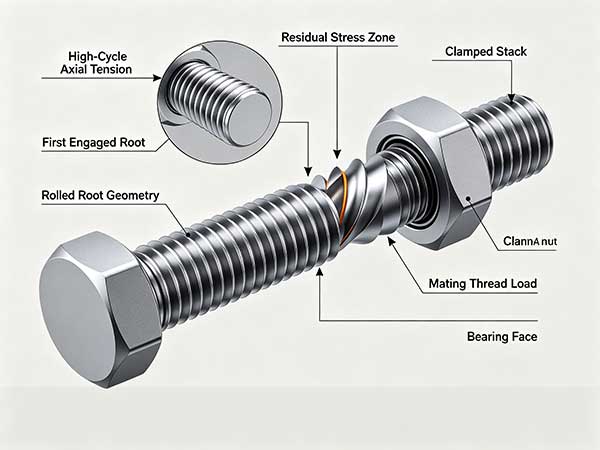

In the present case, the governing service action is high-cycle axial tension concentrated at the first engaged root. I would map that action from the clamped members through the bearing face, head-to-shank transition, shank, engaged threads, and mating component. The map should identify where contact can open, where slip can begin, and where local bending or stress concentration appears. That exercise determines which dimensions and defects are truly critical.

1. Define the unloaded geometry. Record gaps, contact faces, thread position, effective engagement, and alignment.

2. Define installation. State how clamp force is created, measured, and retained without assuming torque equals preload.

3. Apply service actions. Include high-cycle axial tension concentrated at the first engaged root and any redistribution among neighboring fasteners.

4. Evaluate degradation. Consider die pressure, hard material contact, lubricant variation, and dimensional springback as changes to mechanics, material condition, and inspectability.

5. Link evidence to decisions. Assign a drawing control or test to every credible failure mechanism.

Quality Management System certificate LY203E5074Q, issued by Shanghai Liyang Certification Co., Ltd. is the only supplied certification evidence. It indicates certification of a quality management system; current validity, site, scope, and the management-system standard referenced by the certificate must be verified before the document is used in a technical file.

Critical Features and Engineering Functions

The relevant “components” include geometric zones and mating interfaces because a bolt cannot be validated in isolation. For fatigue-critical mechanical fastening, the critical set is determined by the route through which high-cycle axial tension concentrated at the first engaged root enters the assembly. The table separates verified information from project definitions so an engineer can see where evidence is still missing.

Verify all parameters against current test reports and applicable standards before use in specifications.

A nominal material and diameter do not resolve transition geometry, thread tolerance, bearing-face relationship, or mating-thread behavior. Those features should be controlled on one drawing hierarchy with clear precedence. When a standard family is invoked, any non-standard departure must be visible rather than hidden in a general note.

Performance Parameters and Verification Evidence

I use an evidence matrix rather than a generic inspection list. Each row must state the characteristic, why it matters to thread rolling after heat treatment, the production stage that creates it, the verification method, acceptance rule, sampling or screening frequency, reaction plan, and retained record. Values absent from the appendix remain open; they must not be completed from memory or from another fastener grade.

Verify all parameters against current test reports and applicable standards before use in specifications.

DIN, ANSI, and GB are standard families, not complete product definitions. The engineer must identify the exact document, revision, product style, thread system, tolerance class, mechanical-property requirement, and test method actually intended. An approved non-standard drawing must carry those requirements itself. “Equivalent” should not be accepted without a documented comparison of every functionally relevant clause.

For thread rolling after heat treatment, acceptance ranges should be derived from the validated load path and assembly. If the project requires preload, fatigue, corrosion, stripPing, hardness, case depth, optical resolution, eddy-current limits, or capability targets, those numbers require current evidence. The supplied material and dimensional range cannot substitute for them.

Hardness Window, Residual Stress, and Root Validation

Rolling sequence changes the metallurgical state presented to the dies. Rolling before heat treatment forms the thread in a more ductile condition, but later thermal processing can alter residual stress and surface condition. Rolling after heat treatment may place compressive stress at the root, yet only if hardness, ductility, die condition, and penetration remain inside a validated window.

Root geometry must be measured rather than inferred from functional gauge acceptance. A part can pass a gauge while containing an unacceptable root radius, fold, crack, or lead error. Metallographic sections, surface crack inspection, profile measurement, and fatigue testing should be selected according to risk. If residual stress is a design claim, the measurement method and sampling location must be defined.

The supplied appendix does not assign a property class or heat-treatment route to the 904L hex bolt. A discussion of high-strength rolling technology must therefore remain conditional. Material compatibility, sequence, hardness, decarburization where relevant, and fatigue performance require current project evidence.

Root microcrack as a design condition. In fatigue-critical mechanical fastening, the initiating mechanism is Rolling pressure is applied outside the material ductility window. I would reproduce high-cycle axial tension concentrated at the first engaged root while holding the mating geometry and installation state constant, then examine the feature before and after loading. The engineering consequence is Crack grows under cyclic tension. A useful validation record must show why the proposed control—Validate hardness, ductility, penetration, and die condition—interrupts that physical chain rather than merely detecting the final damage.

Evidence needed for Crest overfill. The investigation should search specifically for evidence of Blank diameter or die penetration is excessive. Relevant observations may include asymmetric contact, dimensional movement, surface transfer, a localized fracture origin, or a process record that changed before the affected lot. Because Interference and damaged assembly threads result, acceptance should be based on a project-defined functional test and a feature-level inspection. The preventive requirement is to Control blank size and profile.

Boundary case: Incomplete flank. This mode becomes important when normal production or service variation moves the assembly toward Blank is undersize or penetration is insufficient. The review should test the least favorable credible combination of geometry, material state, friction, and die pressure, hard material contact, lubricant variation, and dimensional springback. If the mechanism is active, Load sharing and effective engagement decline. The specification should therefore require evidence to Measure full profile and functional fit and should define containment when that evidence fails.

Inspection logic for Lead error. Final visual appearance alone cannot confirm whether Dies or workpiece are misaligned. I would select an inspection method that observes the initiating feature, a process signal that identifies when it can be created, and a lot record that limits exposure. The reason is direct: Only part of the engagement carries load. The control plan should state how to Control alignment and lead, who reacts, and which product remains on hold.

Field interpretation of Die-imprinted defect. When the assembly is returned from service, the analyst should compare the damaged part with unused parts from the same lot and with neighboring fasteners. The working hypothesis is Worn or chipped die repeats damage on every part; the expected consequence is A systematic fatigue notch enters the lot. Installation records, contact marks, fracture location, material evidence, and process genealogy should either support or reject that hypothesis. Corrective action must Monitor die condition and correlate defects.

Cold forming must be engineered as a sequence rather than described by machine capacity. Stock volume, cutoff condition, preform geometry, deformation assigned to each station, transfer alignment, die support, lubrication, and actual material ductility determine whether the head and transition fill without laps or cracks. A surface that folds into the cavity remains a discontinuity because pressure does not recreate metallurgical continuity across an oxidized interface.

Sectioned development samples should be taken through the most demanding flow paths. Grain-flow direction, under-head fill, transition continuity, and any folded surface can then be compared with forming analysis. Simulation is useful for locating high tensile strain and die pressure, but it requires correlation with production parts at more than one point in tool life.

In-process load monitoring can identify a short cutoff, missing transfer, tool chip, lubrication change, or gradual die wear when the signal is correlated with physical product evidence. A force or force–displacement envelope should be developed from controlled trials and reviewed by station. One broad alarm band may conceal a local event that matters at only one stage.

When an alarm occurs, the reaction plan must stop or segregate product back to the last verified point, identify the tool and material lots involved, and require a documented release decision. Monitoring reduces exposure only when containment is faster than production can mix suspect parts with accepted output.

Project-Specific Validation Sequence for thread rolling after heat treatment

1. Stage 1 — Root microcrack: prepare an assembly or production sample in which Rolling pressure is applied outside the material ductility window. Apply or simulate high-cycle axial tension concentrated at the first engaged root, then document whether Crack grows under cyclic tension. Release the stage only when the evidence shows that the design or process will Validate hardness, ductility, penetration, and die condition.

2. Stage 2 — Crest overfill: prepare an assembly or production sample in which Blank diameter or die penetration is excessive. Apply or simulate high-cycle axial tension concentrated at the first engaged root, then document whether Interference and damaged assembly threads result. Release the stage only when the evidence shows that the design or process will Control blank size and profile.

3. Stage 3 — Incomplete flank: prepare an assembly or production sample in which Blank is undersize or penetration is insufficient. Apply or simulate high-cycle axial tension concentrated at the first engaged root, then document whether Load sharing and effective engagement decline. Release the stage only when the evidence shows that the design or process will Measure full profile and functional fit.

4. Stage 4 — Lead error: prepare an assembly or production sample in which Dies or workpiece are misaligned. Apply or simulate high-cycle axial tension concentrated at the first engaged root, then document whether Only part of the engagement carries load. Release the stage only when the evidence shows that the design or process will Control alignment and lead.

5. Stage 5 — Die-imprinted defect: prepare an assembly or production sample in which Worn or chipped die repeats damage on every part. Apply or simulate high-cycle axial tension concentrated at the first engaged root, then document whether A systematic fatigue notch enters the lot. Release the stage only when the evidence shows that the design or process will Monitor die condition and correlate defects.

This sequence should use the selected size, actual mating components, production surface state, and the environmental condition described as die pressure, hard material contact, lubricant variation, and dimensional springback. It is not a substitute for required project standards; it is the mechanism map used to choose the correct verified methods. Acceptance values remain project-specific wherever the supplied appendix is silent.

The manufacturing and inspection layers must be connected. A forming simulation predicts risk but does not release product; sectioning proves selected samples but does not screen an entire lot; process monitoring detects signal changes but requires defect correlation; optical and eddy-current sorting each have limited detection mechanisms. The control plan should combine them only where each layer has a defined question and a validated boundary.

These distinctions also prevent invalid transfer of technology claims. Thread rolling after heat treatment, induction hardening, multi-station cold forming, SPC, optical sorting, and eddy-current screening can all be useful, but none automatically applies to every 904L hex bolt. The selected process must be compatible with the material, geometry, required performance, and inspection evidence for the actual project.

Common Failures and Mechanism-Based Root Causes

Verify all parameters against current test reports and applicable standards before use in specifications.

When a hardened threaded part whose rolled root contains microcracking or unfavorable geometry after an unverified process change, I would preserve the assembly before cleaning or disassembly. Bearing marks, thread position, fretting, corrosion deposits, fracture orientation, tool records, and neighboring fastener condition can distinguish the initiating mechanism from the final overload. A replacement with a larger or nominally stronger bolt may shift the damage elsewhere if the true cause is misalignment, prying, settlement, galling, or an unverified mating thread.

Root cause should be written as a physical chain. “Poor quality” is not enough; “a folded surface created during preforming remained at the under-head transition and initiated a cyclic crack after joint separation introduced bending” is testable. The evidence plan can then confirm or reject each link in the chain.

Engineering Specification Checklist

Load and Geometry Definition

• Model high-cycle axial tension concentrated at the first engaged root through the real stack used in fatigue-critical mechanical fastening.

• Select one geometry within M3–M160 and define every functional datum, transition, thread, and contact face.

• Require current finished-lot evidence for stainless steel 904L; do not accept a generic stainless description.

• Set project values for strength, proof behavior, hardness, fatigue, stripping, and deformation because the appendix supplies none.

Controls Derived From the Failure Review

• Root microcrack: verify whether Rolling pressure is applied outside the material ductility window; require the production or design control to Validate hardness, ductility, penetration, and die condition.

• Crest overfill: verify whether Blank diameter or die penetration is excessive; require the production or design control to Control blank size and profile.

• Incomplete flank: verify whether Blank is undersize or penetration is insufficient; require the production or design control to Measure full profile and functional fit.

• Lead error: verify whether Dies or workpiece are misaligned; require the production or design control to Control alignment and lead.

• Die-imprinted defect: verify whether Worn or chipped die repeats damage on every part; require the production or design control to Monitor die condition and correlate defects.

Installation and Service Evidence

• Reproduce the actual mating thread, bearing surface, lubricant state, speed, and joint stack during installation validation.

• Test the effect of die pressure, hard material contact, lubricant variation, and dimensional springback instead of assigning durability from the alloy name.

• Define an as-installed baseline, inspection access, interval logic, reuse decision, and response to a failed member of the joint.

Document Control

• Name the exact DIN, ANSI, or GB document and revision, or release a complete non-standard drawing.

• Check Quality Management System certificate LY203E5074Q, issued by Shanghai Liyang Certification Co., Ltd. for the current site, scope, status, and referenced management-system standard.

• Keep all unverified numeric properties out of the specification until a current report is approved.

Share your project parameters for a technical review.

Evaluating Manufacturer Engineering Capability

Ningbo yi teng construction machinery CO,LTD states that it controls raw materials and product quality and offers stainless steel 904L hex bolt in M3–M160 and non-standard forms; the supplied certification is Quality Management System certificate LY203E5074Q, issued by Shanghai Liyang Certification Co., Ltd. The current product page should be checked for the selected drawing, test reports, and exact execution-standard reference before specification.

For any manufacturer, I look for a documented chain from material receipt to final release. The useful evidence is not a list of machines; it is the link between drawing characteristics, process controls, inspection methods, reaction plans, and retained records. Engineering changes must be assessed against the joint failure mechanisms they can influence.

Tooling revision, material-lot identity, operator or program identification, outsourced-process control, calibration, and nonconformance segregation should be recoverable from one finished lot. A supplier that cannot reconstruct that route cannot perform narrow containment after a field event.

For thread rolling after heat treatment, the audit should follow one real lot. Select a finished container and trace backward through release, inspection, process settings, tool identity, material receipt, and drawing approval. Then select one recorded process alarm or nonconformance and trace forward through containment, correction, verification, and disposition. That two-direction review tests whether the system works under normal and abnormal conditions.

Frequently Asked Questions About thread rolling after heat treatment

Why is a hardness window necessary for post-heat-treatment rolling?

Start with the physical possibility of Rolling pressure is applied outside the material ductility window. In fatigue-critical mechanical fastening, a valid answer requires a trial or calculation that reproduces high-cycle axial tension concentrated at the first engaged root, followed by inspection of the feature linked to Root microcrack. The supplied product facts contain no numeric limit for this decision.

Can a thread gauge detect root microcracks?

Use the exact controlled drawing and name the applicable DIN, ANSI, GB, or approved non-standard requirement. The concern is that Blank diameter or die penetration is excessive, which means an isolated catalogue value or generic gauge result cannot settle the question. Evidence should demonstrate how to Control blank size and profile.

Does post-treatment rolling always improve fatigue life?

Look for the initiating evidence before interpreting the final symptom. If Blank is undersize or penetration is insufficient, the expected engineering consequence is Load sharing and effective engagement decline. Material, process, installation, and lot records should be compared with physical witness marks before corrective action is selected.

Which evidence separates useful root compression from process damage?

Treat the condition as a defined edge case. The stated M3–M160 range and 904L material do not establish performance when Dies or workpiece are misaligned. The drawing and validation plan must show how the design will Control alignment and lead under die pressure, hard material contact, lubricant variation, and dimensional springback.

Submit the controlled drawing, joint stack, mating-thread details, service loads, environment, and installation method for an engineering specification review.
