Automotive bolt Assembly Validation Beyond Nominal Torque

In failure reviews for automotive production and service assemblies, I often see an assembly process that meets torque records but produces variable clamp force because mating threads, coatings, speed, and seating condition are uncontrolled. The final damage may look like a simple broken fastener, but the engineering sequence begins earlier—with material identity, joint geometry, manufacturing integrity, installation behavior, or a changing service environment. This article develops automotive bolt validation from that mechanism rather than from marketing claims.

The verified product data are deliberately narrow: stainless steel 904L Hex bolt, M3–M160, non-standard capability, and execution to DIN, ANSI, GB, or an approved non-standard drawing. No strength class, proof load, tensile value, hardness, torque coefficient, fatigue limit, corrosion-life value, coating, tolerance set, or exact standard number is supplied. Verify every missing parameter against the manufacturer's current test report before specification.

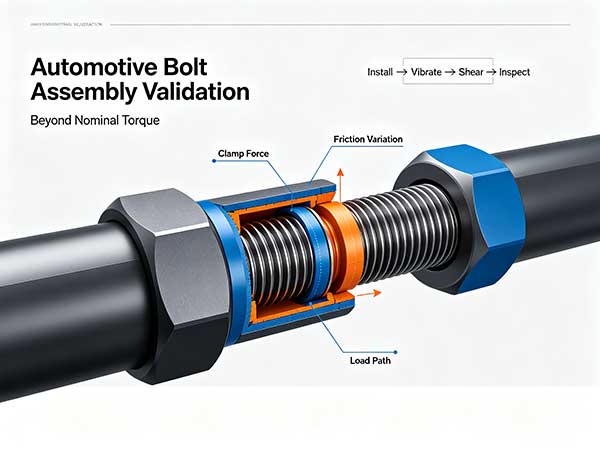

How automotive bolt validation Controls the Load Path

Shear in a properly clamped joint may be transferred initially by friction between the members. Once slip begins, load shifts toward hole bearing, shank contact, thread contact in the shear plane, and local bending. The change is nonlinear and often leaves polished interfaces, fretting debris, elongated contact marks, or asymmetric bearing impressions. Those witness marks are essential evidence during failure analysis.

A design that intentionally permits bearing-type shear requires different checks from a slip-resistant joint. Hole tolerance, shank position, thread location, edge distance, member thickness, and deformation compatibility become central. The bolt description alone cannot resolve which load path the assembly is intended to use.

In the present case, the governing service action is installation torsion followed by road vibration, shear, and thermal cycling. I would map that action from the clamped members through the bearing face, head-to-shank transition, shank, engaged threads, and mating component. The map should identify where contact can open, where slip can begin, and where local bending or stress concentration appears. That exercise determines which dimensions and defects are truly critical.

1. Define the unloaded geometry. Record gaps, contact faces, thread position, effective engagement, and alignment.

2. Define installation. State how clamp force is created, measured, and retained without assuming torque equals preload.

3. Apply service actions. Include installation torsion followed by road vibration, shear, and thermal cycling and any redistribution among neighboring fasteners.

4. Evaluate degradation. Consider coatings, sealers, splash, rapid cycle time, automated tooling, and service reuse as changes to mechanics, material condition, and inspectability.

5. Link evidence to decisions. Assign a drawing control or test to every credible failure mechanism.

Quality Management System certificate LY203E5074Q, issued by Shanghai Liyang Certification Co., Ltd. is the only supplied certification evidence. It indicates certification of a quality management system; current validity, site, scope, and the management-system standard referenced by the certificate must be verified before the document is used in a technical file.

Critical Features and Engineering Functions

The relevant “components” include geometric zones and mating interfaces because a bolt cannot be validated in isolation. For automotive production and service assemblies, the critical set is determined by the route through which installation torsion followed by road vibration, shear, and thermal cycling enters the assembly. The table separates verified information from project definitions so an engineer can see where evidence is still missing.

Verify all parameters against current test reports and applicable standards before use in specifications.

A nominal material and diameter do not resolve transition geometry, thread tolerance, bearing-face relationship, or mating-thread behavior. Those features should be controlled on one drawing hierarchy with clear precedence. When a standard family is invoked, any non-standard departure must be visible rather than hidden in a general note.

Performance Parameters and Verification Evidence

I use an evidence matrix rather than a generic inspection list. Each row must state the characteristic, why it matters to automotive bolt validation, the production stage that creates it, the verification method, acceptance rule, sampling or screening frequency, reaction plan, and retained record. Values absent from the appendix remain open; they must not be completed from memory or from another fastener grade.

Verify all parameters against current test reports and applicable standards before use in specifications.

DIN, ANSI, and GB are standard families, not complete product definitions. The engineer must identify the exact document, revision, product style, thread system, tolerance class, mechanical-property requirement, and test method actually intended. An approved non-standard drawing must carry those requirements itself. “Equivalent” should not be accepted without a documented comparison of every functionally relevant clause.

For automotive bolt validation, acceptance ranges should be derived from the validated load path and assembly. If the project requires preload, fatigue, corrosion, stripPing, hardness, case depth, optical resolution, eddy-current limits, or capability targets, those numbers require current evidence. The supplied material and dimensional range cannot substitute for them.

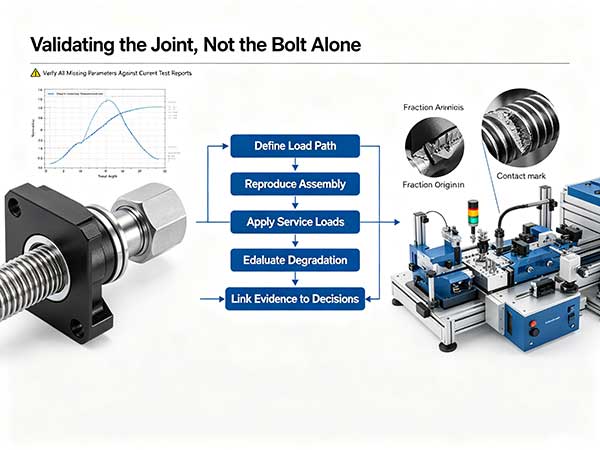

Validating the Production Joint, Not an Isolated Fastener

Automotive validation should use the production stack and realistic process sequence. Bolt, internal thread, washer where used, bracket coating, sealer, cleanliness, tightening speed, tool strategy, and temperature all influence clamp force. A laboratory test with polished substitute plates may underestimate friction variation or embedment.

Tool trace data can identify seating, rundown, and abnormal slope patterns, but interpretation requires correlation with measured preload and known defects. A torque-angle signature is not self-validating. Cross-threading, bottoming, galling, missing parts, and soft interfaces can produce distinctive behavior only after thresholds are developed with controlled trials.

Service requirements should address reuse and repair. A removed stainless bolt or tapped hole may contain transferred material or damaged flanks even if it looks acceptable. The product appendix contains no reuse or torque requirement, so both require project evidence.

Torque-compliant under-clamp as a design condition. In automotive production and service assemblies, the initiating mechanism is Friction is higher than the validation condition. I would reproduce installation torsion followed by road vibration, shear, and thermal cycling while holding the mating geometry and installation state constant, then examine the feature before and after loading. The engineering consequence is Joint slips despite a valid tool record. A useful validation record must show why the proposed control—Validate production friction range—interrupts that physical chain rather than merely detecting the final damage.

Evidence needed for Bottoming signature missed. The investigation should search specifically for evidence of Bolt reaches hole bottom before member compression. Relevant observations may include asymmetric contact, dimensional movement, surface transfer, a localized fracture origin, or a process record that changed before the affected lot. Because Torque and angle appear abnormal but pass broad limits, acceptance should be based on a project-defined functional test and a feature-level inspection. The preventive requirement is to Correlate signatures with physical samples.

Boundary case: Coating embedment. This mode becomes important when normal production or service variation moves the assembly toward Soft layers settle after tightening. The review should test the least favorable credible combination of geometry, material state, friction, and coatings, sealers, splash, rapid cycle time, automated tooling, and service reuse. If the mechanism is active, Retained clamp force declines. The specification should therefore require evidence to Test the real coated stack and should define containment when that evidence fails.

Inspection logic for Automated cross-thread. Final visual appearance alone cannot confirm whether Fast rundown begins on misaligned threads. I would select an inspection method that observes the initiating feature, a process signal that identifies when it can be created, and a lot record that limits exposure. The reason is direct: Flanks are damaged before detection. The control plan should state how to Use alignment and signature controls, who reacts, and which product remains on hold.

Field interpretation of Service galling. When the assembly is returned from service, the analyst should compare the damaged part with unused parts from the same lot and with neighboring fasteners. The working hypothesis is Previously loaded stainless threads are reused without inspection; the expected consequence is Repair torque becomes unpredictable. Installation records, contact marks, fracture location, material evidence, and process genealogy should either support or reject that hypothesis. Corrective action must Define reuse acceptance.

Secondary operations can correct features that are impractical to form, but they can also interrupt favorable grain flow or create new stress raisers. Machining a transition, grinding a shank, broaching a feature, or cutting a slot should be linked to surface-roughness, burr, radius, residual-stress, and dimensional controls. The inspection plan must identify which characteristics are created at each operation and which later steps can hide or worsen them.

Process sequencing matters. Heat, cleaning chemistry, mechanical finishing, passivation where specified, and packaging can alter surface condition. A route sheet should preserve lot identity and record approved changes so that a field problem can be traced to the actual material and process combination.

Traceability should connect finished containers to raw material, drawing revision, machine, tool set, operator or program, secondary-operation lot, inspection equipment, time window, and release record. A label that identifies only the shipping date is not enough for mechanism-based containment. The required granularity should reflect the consequence of failure and the speed at which process conditions can change.

Change control completes the loop. A different wire source, lubricant, die repair, thread sequence, heat-treatment route, cleaning chemistry, camera algorithm, gauge, or packaging method may affect performance. The manufacturer should define which changes require notification, first-article evidence, renewed capability study, or functional revalidation.

Project-Specific Validation Sequence for automotive bolt validation

1. Stage 1 — Torque-compliant under-clamp: prepare an assembly or production sample in which Friction is higher than the validation condition. Apply or simulate installation torsion followed by road vibration, shear, and thermal cycling, then document whether Joint slips despite a valid tool record. Release the stage only when the evidence shows that the design or process will Validate production friction range.

2. Stage 2 — Bottoming signature missed: prepare an assembly or production sample in which Bolt reaches hole bottom before member compression. Apply or simulate installation torsion followed by road vibration, shear, and thermal cycling, then document whether Torque and angle appear abnormal but pass broad limits. Release the stage only when the evidence shows that the design or process will Correlate signatures with physical samples.

3. Stage 3 — Coating embedment: prepare an assembly or production sample in which Soft layers settle after tightening. Apply or simulate installation torsion followed by road vibration, shear, and thermal cycling, then document whether Retained clamp force declines. Release the stage only when the evidence shows that the design or process will Test the real coated stack.

4. Stage 4 — Automated cross-thread: prepare an assembly or production sample in which Fast rundown begins on misaligned threads. Apply or simulate installation torsion followed by road vibration, shear, and thermal cycling, then document whether Flanks are damaged before detection. Release the stage only when the evidence shows that the design or process will Use alignment and signature controls.

5. Stage 5 — Service galling: prepare an assembly or production sample in which Previously loaded stainless threads are reused without inspection. Apply or simulate installation torsion followed by road vibration, shear, and thermal cycling, then document whether Repair torque becomes unpredictable. Release the stage only when the evidence shows that the design or process will Define reuse acceptance.

This sequence should use the selected size, actual mating components, production surface state, and the environmental condition described as coatings, sealers, splash, rapid cycle time, automated tooling, and service reuse. It is not a substitute for required project standards; it is the mechanism map used to choose the correct verified methods. Acceptance values remain project-specific wherever the supplied appendix is silent.

The manufacturing and inspection layers must be connected. A forming simulation predicts risk but does not release product; sectioning proves selected samples but does not screen an entire lot; process monitoring detects signal changes but requires defect correlation; optical and eddy-current sorting each have limited detection mechanisms. The control plan should combine them only where each layer has a defined question and a validated boundary.

These distinctions also prevent invalid transfer of technology claims. Thread rolling after heat treatment, induction hardening, multi-station cold forming, SPC, optical sorting, and eddy-current screening can all be useful, but none automatically applies to every 904L hex bolt. The selected process must be compatible with the material, geometry, required performance, and inspection evidence for the actual project.

Common Failures and Mechanism-Based Root Causes

Verify all parameters against current test reports and applicable standards before use in specifications.

When an assembly process that meets torque records but produces variable clamp force because mating threads, coatings, speed, and seating condition are uncontrolled, I would preserve the assembly before cleaning or disassembly. Bearing marks, thread position, fretting, corrosion deposits, fracture orientation, tool records, and neighboring fastener condition can distinguish the initiating mechanism from the final overload. A replacement with a larger or nominally stronger bolt may shift the damage elsewhere if the true cause is misalignment, prying, settlement, galling, or an unverified mating thread.

Root cause should be written as a physical chain. “Poor quality” is not enough; “a folded surface created during preforming remained at the under-head transition and initiated a cyclic crack after joint separation introduced bending” is testable. The evidence plan can then confirm or reject each link in the chain.

Engineering Specification Checklist

Load and Geometry Definition

• Model installation torsion followed by road vibration, shear, and thermal cycling through the real stack used in automotive production and service assemblies.

• Select one geometry within M3–M160 and define every functional datum, transition, thread, and contact face.

• Require current finished-lot evidence for stainless steel 904L; do not accept a generic stainless description.

• Set project values for strength, proof behavior, hardness, fatigue, stripping, and deformation because the appendix supplies none.

Controls Derived From the Failure Review

• Torque-compliant under-clamp: verify whether Friction is higher than the validation condition; require the production or design control to Validate production friction range.

• Bottoming signature missed: verify whether Bolt reaches hole bottom before member compression; require the production or design control to Correlate signatures with physical samples.

• Coating embedment: verify whether Soft layers settle after tightening; require the production or design control to Test the real coated stack.

• Automated cross-thread: verify whether Fast rundown begins on misaligned threads; require the production or design control to Use alignment and signature controls.

• Service galling: verify whether Previously loaded stainless threads are reused without inspection; require the production or design control to Define reuse acceptance.

Installation and Service Evidence

• Reproduce the actual mating thread, bearing surface, lubricant state, speed, and joint stack during installation validation.

• Test the effect of coatings, sealers, splash, rapid cycle time, automated tooling, and service reuse instead of assigning durability from the alloy name.

• Define an as-installed baseline, inspection access, interval logic, reuse decision, and response to a failed member of the joint.

Document Control

• Name the exact DIN, ANSI, or GB document and revision, or release a complete non-standard drawing.

• Check Quality Management System certificate LY203E5074Q, issued by Shanghai Liyang Certification Co., Ltd. for the current site, scope, status, and referenced management-system standard.

• Keep all unverified numeric properties out of the specification until a current report is approved.

Share your project parameters for a technical review.

Evaluating Manufacturer Engineering Capability

Ningbo yi teng construction machinery CO,LTD states that it controls raw materials and product quality and offers stainless steel 904L hex bolt in M3–M160 and non-standard forms; the supplied certification is Quality Management System certificate LY203E5074Q, issued by Shanghai Liyang Certification Co., Ltd. The current product page should be checked for the selected drawing, test reports, and exact execution-standard reference before specification.

A credible engineering review separates design responsibility from manufacturing evidence. The designer defines load, environment, joint geometry, and acceptance intent; the manufacturer demonstrates that its route can repeatedly achieve the controlled characteristics. Any assumption between those two roles should be made explicit before production.

I also check whether inspection methods match the defect mechanism. Optical sorting cannot validate internal grain flow, and a hardness reading cannot prove dimensional conformity. Multiple methods should be combined only where each has a defined purpose and verified detection boundary.

For automotive bolt validation, the audit should follow one real lot. Select a finished container and trace backward through release, inspection, process settings, tool identity, material receipt, and drawing approval. Then select one recorded process alarm or nonconformance and trace forward through containment, correction, verification, and disposition. That two-direction review tests whether the system works under normal and abnormal conditions.

Frequently Asked Questions About automotive bolt validation

Why can an automotive joint pass torque control and still be under-clamped?

Start with the physical possibility of Friction is higher than the validation condition. In automotive production and service assemblies, a valid answer requires a trial or calculation that reproduces installation torsion followed by road vibration, shear, and thermal cycling, followed by inspection of the feature linked to Torque-compliant under-clamp. The supplied product facts contain no numeric limit for this decision.

What must a torque-angle signature be correlated with?

Use the exact controlled drawing and name the applicable DIN, ANSI, GB, or approved non-standard requirement. The concern is that Bolt reaches hole bottom before member compression, which means an isolated catalogue value or generic gauge result cannot settle the question. Evidence should demonstrate how to Correlate signatures with physical samples.

Why should coated production parts be used in validation?

Look for the initiating evidence before interpreting the final symptom. If Soft layers settle after tightening, the expected engineering consequence is Retained clamp force declines. Material, process, installation, and lot records should be compared with physical witness marks before corrective action is selected.

How should service reuse differ from first assembly?

Treat the condition as a defined edge case. The stated M3–M160 range and 904L material do not establish performance when Fast rundown begins on misaligned threads. The drawing and validation plan must show how the design will Use alignment and signature controls under coatings, sealers, splash, rapid cycle time, automated tooling, and service reuse.

Submit the controlled drawing, joint stack, mating-thread details, service loads, environment, and installation method for an engineering specification review.
