Renewable-Energy Bolt Inspection Plans Based on Failure Risk

2026-08-13 09:20:16

Renewable-Energy bolt Inspection Plans Based on Failure Risk

In failure reviews for renewable-energy equipment, I often see an inspection program that measures easy dimensions frequently but does not verify the thread root, preload behavior, or forming transition that controls field risk. The final damage may look like a simple broken fastener, but the engineering sequence begins earlier—with material identity, joint geometry, manufacturing integrity, installation behavior, or a changing service environment. This article develops bolt inspection plan from that mechanism rather than from marketing claims.

The verified product data are deliberately narrow: stainless steel 904L Hex bolt, M3–M160, non-standard capability, and execution to DIN, ANSI, GB, or an approved non-standard drawing. No strength class, proof load, tensile value, hardness, torque coefficient, fatigue limit, corrosion-life value, coating, tolerance set, or exact standard number is supplied. Verify every missing parameter against the manufacturer's current test report before specification.

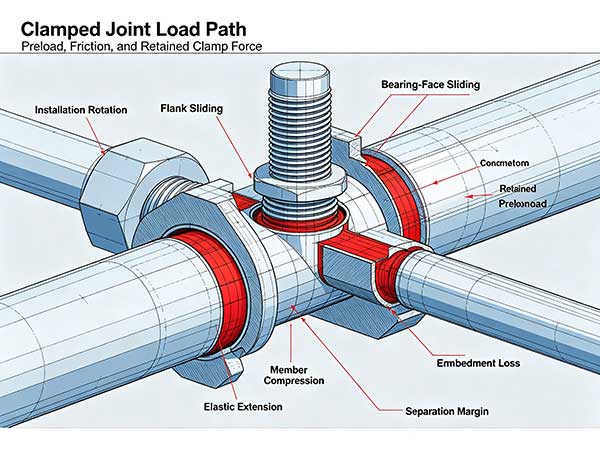

How bolt inspection plan Controls the Load Path

Threaded load transfer is nonuniform. Elastic deformation causes the first engaged threads to carry more load than threads farther from the bearing surface. Lead error, flank-angle variation, pitch-diameter mismatch, incomplete form, or a damaged root can intensify that concentration. Adequate nominal engagement does not guarantee adequate load sharing unless both internal and external threads are controlled as a pair.

The runout and the first fully formed thread deserve special attention because section geometry and contact conditions change over a short distance. When cyclic axial force combines with misalignment, the highest local stress may occur at a transition rather than at the smallest nominal area assumed in a simple hand calculation.

In the present case, the governing service action is cyclic service load with vibration and long maintenance intervals. I would map that action from the clamped members through the bearing face, head-to-shank transition, shank, engaged threads, and mating component. The map should identify where contact can open, where slip can begin, and where local bending or stress concentration appears. That exercise determines which dimensions and defects are truly critical.

1. Define the unloaded geometry. Record gaps, contact faces, thread position, effective engagement, and alignment.

2. Define installation. State how clamp force is created, measured, and retained without assuming torque equals preload.

3. Apply service actions. Include cyclic service load with vibration and long maintenance intervals and any redistribution among neighboring fasteners.

4. Evaluate degradation. Consider outdoor moisture, temperature change, installation variability, and remote access as changes to mechanics, material condition, and inspectability.

5. Link evidence to decisions. Assign a drawing control or test to every credible failure mechanism.

Quality Management System certificate LY203E5074Q, issued by Shanghai Liyang Certification Co., Ltd. is the only supplied certification evidence. It indicates certification of a quality management system; current validity, site, scope, and the management-system standard referenced by the certificate must be verified before the document is used in a technical file.

Critical Features and Engineering Functions

The relevant “components” include geometric zones and mating interfaces because a bolt cannot be validated in isolation. For renewable-energy equipment, the critical set is determined by the route through which cyclic service load with vibration and long maintenance intervals enters the assembly. The table separates verified information from project definitions so an engineer can see where evidence is still missing.

Verify all parameters against current test reports and applicable standards before use in specifications.

A nominal material and diameter do not resolve transition geometry, thread tolerance, bearing-face relationship, or mating-thread behavior. Those features should be controlled on one drawing hierarchy with clear precedence. When a standard family is invoked, any non-standard departure must be visible rather than hidden in a general note.

Performance Parameters and Verification Evidence

I use an evidence matrix rather than a generic inspection list. Each row must state the characteristic, why it matters to bolt inspection plan, the production stage that creates it, the verification method, acceptance rule, sampling or screening frequency, reaction plan, and retained record. Values absent from the appendix remain open; they must not be completed from memory or from another fastener grade.

Verify all parameters against current test reports and applicable standards before use in specifications.

DIN, ANSI, and GB are standard families, not complete product definitions. The engineer must identify the exact document, revision, product style, thread system, tolerance class, mechanical-property requirement, and test method actually intended. An approved non-standard drawing must carry those requirements itself. “Equivalent” should not be accepted without a documented comparison of every functionally relevant clause.

For bolt inspection plan, acceptance ranges should be derived from the validated load path and assembly. If the project requires preload, fatigue, corrosion, stripPing, hardness, case depth, optical resolution, eddy-current limits, or capability targets, those numbers require current evidence. The supplied material and dimensional range cannot substitute for them.

Matching Inspection Methods to Failure Mechanisms

An inspection plan should begin with a failure-mode map. Material identity protects corrosion and mechanical assumptions; thread profile and root condition affect engagement and fatigue; bearing-face geometry controls seating; forming integrity controls under-head performance; torque–tension behavior affects preload. Sampling and method should follow consequence and process detectability.

Dimensional inspection, optical sorting, eddy-current screening, hardness checks, sectioning, and assembly tests answer different questions. No single method validates the complete bolt. The plan should state which defect each method can detect, the smallest relevant condition, sampling frequency, reaction rule, and suspect-lot boundary.

Field inspection needs a separate logic from factory inspection. Corrosion, rotation, fretting, preload loss, and interface movement may develop after installation. Access and baseline records should be designed before equipment enters service.

Easy-feature bias as a design condition. In renewable-energy equipment, the initiating mechanism is Plan favors dimensions that are simple to measure. I would reproduce cyclic service load with vibration and long maintenance intervals while holding the mating geometry and installation state constant, then examine the feature before and after loading. The engineering consequence is Critical hidden mechanisms remain unchecked. A useful validation record must show why the proposed control—Rank characteristics by failure consequence—interrupts that physical chain rather than merely detecting the final damage.

Evidence needed for Method mismatch. The investigation should search specifically for evidence of Inspection technology is assigned outside its detection capability. Relevant observations may include asymmetric contact, dimensional movement, surface transfer, a localized fracture origin, or a process record that changed before the affected lot. Because False confidence develops, acceptance should be based on a project-defined functional test and a feature-level inspection. The preventive requirement is to Validate method-to-defect correlation.

Boundary case: Sampling blind spot. This mode becomes important when normal production or service variation moves the assembly toward Low-frequency systematic defects fall between samples. The review should test the least favorable credible combination of geometry, material state, friction, and outdoor moisture, temperature change, installation variability, and remote access. If the mechanism is active, Field exposure persists. The specification should therefore require evidence to Combine process monitoring and targeted screening and should define containment when that evidence fails.

Inspection logic for No reaction boundary. Final visual appearance alone cannot confirm whether A failed check does not define affected output. I would select an inspection method that observes the initiating feature, a process signal that identifies when it can be created, and a lot record that limits exposure. The reason is direct: Suspect parts are released. The control plan should state how to Tie alarms to lot genealogy, who reacts, and which product remains on hold.

Field interpretation of No field baseline. When the assembly is returned from service, the analyst should compare the damaged part with unused parts from the same lot and with neighboring fasteners. The working hypothesis is Initial condition is undocumented; the expected consequence is Service change cannot be distinguished from production variation. Installation records, contact marks, fracture location, material evidence, and process genealogy should either support or reject that hypothesis. Corrective action must Record installation and early-service state.

Secondary operations can correct features that are impractical to form, but they can also interrupt favorable grain flow or create new stress raisers. Machining a transition, grinding a shank, broaching a feature, or cutting a slot should be linked to surface-roughness, burr, radius, residual-stress, and dimensional controls. The inspection plan must identify which characteristics are created at each operation and which later steps can hide or worsen them.

Process sequencing matters. Heat, cleaning chemistry, mechanical finishing, passivation where specified, and packaging can alter surface condition. A route sheet should preserve lot identity and record approved changes so that a field problem can be traced to the actual material and process combination.

Eddy-current sorting compares electromagnetic response and can screen some differences in material state, heat-treatment condition, geometry, or discontinuity. It is not a universal crack detector and does not directly report hardness depth. Frequency, coil configuration, lift-off, part temperature, orientation, phase window, amplitude window, and calibration samples determine sensitivity.

Reference parts should represent proven acceptable product and physically characterized reject conditions. Periodic destructive correlation is needed where the signal is used to infer a metallurgical state. Drift, coil wear, mixed geometry, or temperature change can otherwise create false acceptance or excessive rejection.

Project-Specific Validation Sequence for bolt inspection plan

1. Stage 1 — Easy-feature bias: prepare an assembly or production sample in which Plan favors dimensions that are simple to measure. Apply or simulate cyclic service load with vibration and long maintenance intervals, then document whether Critical hidden mechanisms remain unchecked. Release the stage only when the evidence shows that the design or process will Rank characteristics by failure consequence.

2. Stage 2 — Method mismatch: prepare an assembly or production sample in which Inspection technology is assigned outside its detection capability. Apply or simulate cyclic service load with vibration and long maintenance intervals, then document whether False confidence develops. Release the stage only when the evidence shows that the design or process will Validate method-to-defect correlation.

3. Stage 3 — Sampling blind spot: prepare an assembly or production sample in which Low-frequency systematic defects fall between samples. Apply or simulate cyclic service load with vibration and long maintenance intervals, then document whether Field exposure persists. Release the stage only when the evidence shows that the design or process will Combine process monitoring and targeted screening.

4. Stage 4 — No reaction boundary: prepare an assembly or production sample in which A failed check does not define affected output. Apply or simulate cyclic service load with vibration and long maintenance intervals, then document whether Suspect parts are released. Release the stage only when the evidence shows that the design or process will Tie alarms to lot genealogy.

5. Stage 5 — No field baseline: prepare an assembly or production sample in which Initial condition is undocumented. Apply or simulate cyclic service load with vibration and long maintenance intervals, then document whether Service change cannot be distinguished from production variation. Release the stage only when the evidence shows that the design or process will Record installation and early-service state.

This sequence should use the selected size, actual mating components, production surface state, and the environmental condition described as outdoor moisture, temperature change, installation variability, and remote access. It is not a substitute for required project standards; it is the mechanism map used to choose the correct verified methods. Acceptance values remain project-specific wherever the supplied appendix is silent.

The manufacturing and inspection layers must be connected. A forming simulation predicts risk but does not release product; sectioning proves selected samples but does not screen an entire lot; process monitoring detects signal changes but requires defect correlation; optical and eddy-current sorting each have limited detection mechanisms. The control plan should combine them only where each layer has a defined question and a validated boundary.

These distinctions also prevent invalid transfer of technology claims. Thread rolling after heat treatment, induction hardening, multi-station cold forming, SPC, optical sorting, and eddy-current screening can all be useful, but none automatically applies to every 904L hex bolt. The selected process must be compatible with the material, geometry, required performance, and inspection evidence for the actual project.

Common Failures and Mechanism-Based Root Causes

Verify all parameters against current test reports and applicable standards before use in specifications.

When an inspection program that measures easy dimensions frequently but does not verify the thread root, preload behavior, or forming transition that controls field risk, I would preserve the assembly before cleaning or disassembly. Bearing marks, thread position, fretting, corrosion deposits, fracture orientation, tool records, and neighboring fastener condition can distinguish the initiating mechanism from the final overload. A replacement with a larger or nominally stronger bolt may shift the damage elsewhere if the true cause is misalignment, prying, settlement, galling, or an unverified mating thread.

Root cause should be written as a physical chain. “Poor quality” is not enough; “a folded surface created during preforming remained at the under-head transition and initiated a cyclic crack after joint separation introduced bending” is testable. The evidence plan can then confirm or reject each link in the chain.

Engineering Specification Checklist

Load and Geometry Definition

• Model cyclic service load with vibration and long maintenance intervals through the real stack used in renewable-energy equipment.

• Select one geometry within M3–M160 and define every functional datum, transition, thread, and contact face.

• Require current finished-lot evidence for stainless steel 904L; do not accept a generic stainless description.

• Set project values for strength, proof behavior, hardness, fatigue, stripping, and deformation because the appendix supplies none.

Controls Derived From the Failure Review

• Easy-feature bias: verify whether Plan favors dimensions that are simple to measure; require the production or design control to Rank characteristics by failure consequence.

• Method mismatch: verify whether Inspection technology is assigned outside its detection capability; require the production or design control to Validate method-to-defect correlation.

• Sampling blind spot: verify whether Low-frequency systematic defects fall between samples; require the production or design control to Combine process monitoring and targeted screening.

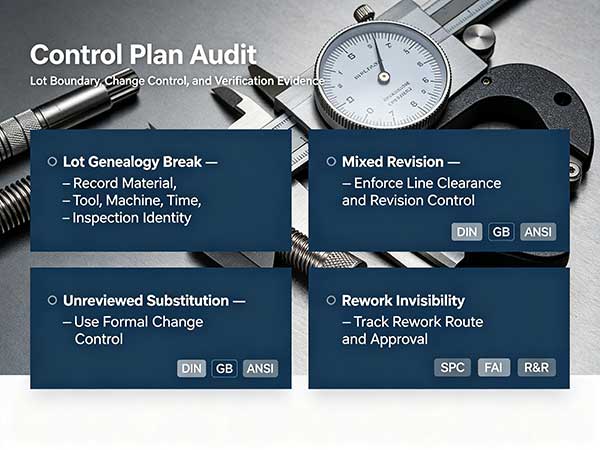

• No reaction boundary: verify whether A failed check does not define affected output; require the production or design control to Tie alarms to lot genealogy.

• No field baseline: verify whether Initial condition is undocumented; require the production or design control to Record installation and early-service state.

Installation and Service Evidence

• Reproduce the actual mating thread, bearing surface, lubricant state, speed, and joint stack during installation validation.

• Test the effect of outdoor moisture, temperature change, installation variability, and remote access instead of assigning durability from the alloy name.

• Define an as-installed baseline, inspection access, interval logic, reuse decision, and response to a failed member of the joint.

Document Control

• Name the exact DIN, ANSI, or GB document and revision, or release a complete non-standard drawing.

• Check Quality Management System certificate LY203E5074Q, issued by Shanghai Liyang Certification Co., Ltd. for the current site, scope, status, and referenced management-system standard.

• Keep all unverified numeric properties out of the specification until a current report is approved.

Share your project parameters for a technical review.

Evaluating Manufacturer Engineering Capability

Ningbo yi teng construction machinery CO,LTD states that it controls raw materials and product quality and offers stainless steel 904L hex bolt in M3–M160 and non-standard forms; the supplied certification is Quality Management System certificate LY203E5074Q, issued by Shanghai Liyang Certification Co., Ltd. The current product page should be checked for the selected drawing, test reports, and exact execution-standard reference before specification.

Manufacturer capability should be assessed with representative records. I would review a controlled process flow, first-article report, material evidence, gauge studies for critical characteristics, control charts with actual reaction examples, sorting validation, and a closed corrective-action case. These records show whether the system responds to variation rather than merely documenting it.

For non-standard geometry, tooling design and feasibility review are especially important. The manufacturer should explain how stock volume, material flow, transitions, secondary operations, and inspection access were evaluated before the drawing was released.

For bolt inspection plan, the audit should follow one real lot. Select a finished container and trace backward through release, inspection, process settings, tool identity, material receipt, and drawing approval. Then select one recorded process alarm or nonconformance and trace forward through containment, correction, verification, and disposition. That two-direction review tests whether the system works under normal and abnormal conditions.

Frequently Asked Questions About bolt inspection plan

How should failure consequence change bolt inspection frequency?

Start with the physical possibility of Plan favors dimensions that are simple to measure. In renewable-energy equipment, a valid answer requires a trial or calculation that reproduces cyclic service load with vibration and long maintenance intervals, followed by inspection of the feature linked to Easy-feature bias. The supplied product facts contain no numeric limit for this decision.

Can one sorting method cover dimensional and metallurgical defects?

Use the exact controlled drawing and name the applicable DIN, ANSI, GB, or approved non-standard requirement. The concern is that Inspection technology is assigned outside its detection capability, which means an isolated catalogue value or generic gauge result cannot settle the question. Evidence should demonstrate how to Validate method-to-defect correlation.

What belongs in a field baseline for renewable-energy joints?

Look for the initiating evidence before interpreting the final symptom. If Low-frequency systematic defects fall between samples, the expected engineering consequence is Field exposure persists. Material, process, installation, and lot records should be compared with physical witness marks before corrective action is selected.

How should an inspection failure define the suspect lot?

Treat the condition as a defined edge case. The stated M3–M160 range and 904L material do not establish performance when A failed check does not define affected output. The drawing and validation plan must show how the design will Tie alarms to lot genealogy under outdoor moisture, temperature change, installation variability, and remote access.

Submit the controlled drawing, joint stack, mating-thread details, service loads, environment, and installation method for an engineering specification review.
