bolt Failure Fractography: Reconstructing the Load History

In failure reviews for renewable-energy, automotive, and infrastructure investigations, I often see a fractured bolt submitted without its mating parts, installation record, or preserved fracture surface. The final damage may look like a simple broken fastener, but the engineering sequence begins earlier—with material identity, joint geometry, manufacturing integrity, installation behavior, or a changing service environment. This article develops bolt failure analysis from that mechanism rather than from marketing claims.

The verified product data are deliberately narrow: stainless steel 904L Hex bolt, M3–M160, non-standard capability, and execution to DIN, ANSI, GB, or an approved non-standard drawing. No strength class, proof load, tensile value, hardness, torque coefficient, fatigue limit, corrosion-life value, coating, tolerance set, or exact standard number is supplied. Verify every missing parameter against the manufacturer's current test report before specification.

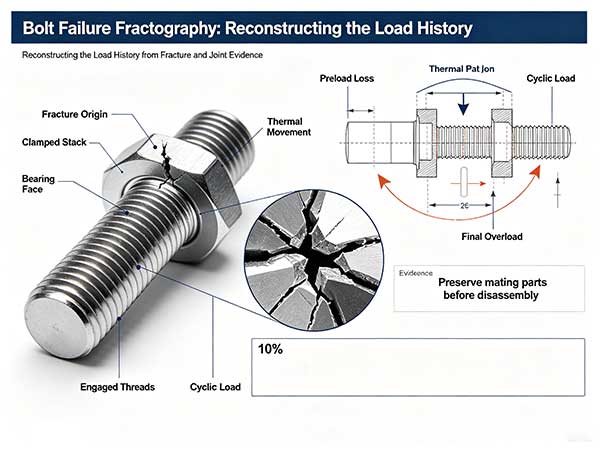

How bolt failure analysis Controls the Load Path

Thermal movement alters the elastic balance whenever the bolt and clamped stack have different expansion behavior or temperature gradients. Heating can increase or decrease clamp force depending on relative expansion and stiffness; cooling can reverse the direction. Repeated cycles can combine with embedment, interface creep, or localized yielding to create progressive preload loss.

Environmental exposure also changes mechanics indirectly. Corrosion products can lock threads, deposits can create false seating, and crevice attack can reduce the load-bearing section below a shielded interface. A corrosion-resistant alloy choice is useful only when material identity, joint geometry, stress, temperature, contaminants, and maintenance access are reviewed together.

In the present case, the governing service action is unknown service loading that must be inferred from fracture and joint evidence. I would map that action from the clamped members through the bearing face, head-to-shank transition, shank, engaged threads, and mating component. The map should identify where contact can open, where slip can begin, and where local bending or stress concentration appears. That exercise determines which dimensions and defects are truly critical.

1. Define the unloaded geometry. Record gaps, contact faces, thread position, effective engagement, and alignment.

2. Define installation. State how clamp force is created, measured, and retained without assuming torque equals preload.

3. Apply service actions. Include unknown service loading that must be inferred from fracture and joint evidence and any redistribution among neighboring fasteners.

4. Evaluate degradation. Consider handling damage, corrosion, fretting, contamination, and incomplete records as changes to mechanics, material condition, and inspectability.

5. Link evidence to decisions. Assign a drawing control or test to every credible failure mechanism.

Quality Management System certificate LY203E5074Q, issued by Shanghai Liyang Certification Co., Ltd. is the only supplied certification evidence. It indicates certification of a quality management system; current validity, site, scope, and the management-system standard referenced by the certificate must be verified before the document is used in a technical file.

Critical Features and Engineering Functions

The relevant “components” include geometric zones and mating interfaces because a bolt cannot be validated in isolation. For renewable-energy, automotive, and infrastructure investigations, the critical set is determined by the route through which unknown service loading that must be inferred from fracture and joint evidence enters the assembly. The table separates verified information from project definitions so an engineer can see where evidence is still missing.

Verify all parameters against current test reports and applicable standards before use in specifications.

A nominal material and diameter do not resolve transition geometry, thread tolerance, bearing-face relationship, or mating-thread behavior. Those features should be controlled on one drawing hierarchy with clear precedence. When a standard family is invoked, any non-standard departure must be visible rather than hidden in a general note.

Performance Parameters and Verification Evidence

I use an evidence matrix rather than a generic inspection list. Each row must state the characteristic, why it matters to bolt failure analysis, the production stage that creates it, the verification method, acceptance rule, sampling or screening frequency, reaction plan, and retained record. Values absent from the appendix remain open; they must not be completed from memory or from another fastener grade.

Verify all parameters against current test reports and applicable standards before use in specifications.

DIN, ANSI, and GB are standard families, not complete product definitions. The engineer must identify the exact document, revision, product style, thread system, tolerance class, mechanical-property requirement, and test method actually intended. An approved non-standard drawing must carry those requirements itself. “Equivalent” should not be accepted without a documented comparison of every functionally relevant clause.

For bolt failure analysis, acceptance ranges should be derived from the validated load path and assembly. If the project requires preload, fatigue, corrosion, stripPing, hardness, case depth, optical resolution, eddy-current limits, or capability targets, those numbers require current evidence. The supplied material and dimensional range cannot substitute for them.

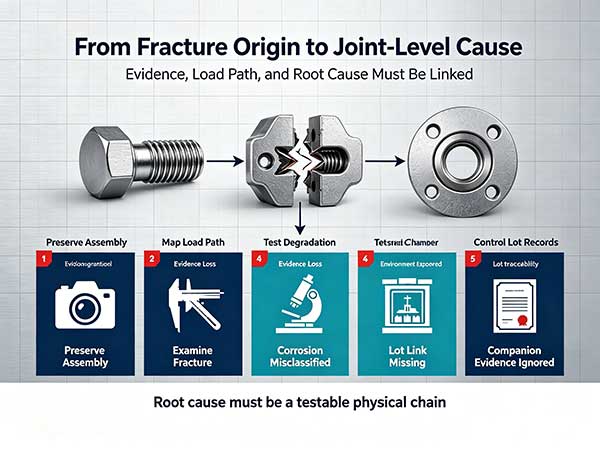

From Fracture Origin to Joint-Level Cause

Failure analysis starts by preserving evidence. Fracture halves should not be rubbed together or aggressively cleaned. The assembly position, bolt orientation, tightening marks, neighboring fasteners, interface witness marks, deposits, and thread condition should be photographed before disassembly. Without this context, the laboratory may identify a crack mode but miss why the joint generated it.

A fatigue surface often contains a progressive region and a final overload ligament, but surface appearance varies with environment, load ratio, material, and post-fracture damage. The origin location should be mapped to the first engaged thread, runout, under-head fillet, corrosion pit, forming lap, or contact mark. Hardness, chemistry, dimensions, and microstructure then test competing hypotheses.

Root cause is a chain. “Bolt fatigue” describes a damage process; it does not explain the cyclic stress. The engineering cause may be preload loss, joint separation, eccentricity, prying, thread mismatch, a manufacturing discontinuity, or environmental attack.

Evidence loss as a design condition. In renewable-energy, automotive, and infrastructure investigations, the initiating mechanism is Parts are cleaned or mixed before documentation. I would reproduce unknown service loading that must be inferred from fracture and joint evidence while holding the mating geometry and installation state constant, then examine the feature before and after loading. The engineering consequence is Origin and load direction become uncertain. A useful validation record must show why the proposed control—Preserve and map the complete assembly—interrupts that physical chain rather than merely detecting the final damage.

Evidence needed for Fatigue miscalled overload. The investigation should search specifically for evidence of Only the final ligament is examined. Relevant observations may include asymmetric contact, dimensional movement, surface transfer, a localized fracture origin, or a process record that changed before the affected lot. Because Corrective action addresses nominal strength, not cyclic cause, acceptance should be based on a project-defined functional test and a feature-level inspection. The preventive requirement is to Review the whole fracture and joint.

Boundary case: Corrosion misclassified. This mode becomes important when normal production or service variation moves the assembly toward Post-fracture rust is confused with pre-existing attack. The review should test the least favorable credible combination of geometry, material state, friction, and handling damage, corrosion, fretting, contamination, and incomplete records. If the mechanism is active, Timing of damage is misread. The specification should therefore require evidence to Compare protected and exposed surfaces and should define containment when that evidence fails.

Inspection logic for Lot link missing. Final visual appearance alone cannot confirm whether Material and process records cannot be recovered. I would select an inspection method that observes the initiating feature, a process signal that identifies when it can be created, and a lot record that limits exposure. The reason is direct: Manufacturing hypotheses cannot be tested. The control plan should state how to Maintain genealogy, who reacts, and which product remains on hold.

Field interpretation of Companion evidence ignored. When the assembly is returned from service, the analyst should compare the damaged part with unused parts from the same lot and with neighboring fasteners. The working hypothesis is Only the broken bolt is submitted; the expected consequence is Load redistribution and seating clues are lost. Installation records, contact marks, fracture location, material evidence, and process genealogy should either support or reject that hypothesis. Corrective action must Inspect neighboring parts and interfaces.

Selective induction hardening uses localized electromagnetic heating followed by quenching and tempering. A complete process definition includes coil geometry, coupling distance, frequency, delivered power, heating time or traverse speed, quench timing, quench distribution, temper condition, and part orientation. These variables control the surface-to-core thermal path and therefore the hardness gradient, case shape, distortion, and transition microstructure.

A single surface-hardness reading does not validate the process. A sectioned hardness traverse, declared case-depth criterion, metallography, crack inspection, dimensional comparison, and core-property evidence are needed. Material suitability must be confirmed before induction hardening is specified; no such process or hardness values are supplied for the verified 904L hex bolt.

Statistical process control is meaningful only after the measurement system and process are stable enough to interpret. Each critical characteristic needs a defined subgroup, sampling frequency, chart type, reaction rule, and containment boundary. Capability indices are not acceptance substitutes: a favorable index cannot excuse a special-cause signal, and a target value must be agreed for the project because none is provided in the verified data.

Gauge repeatability and reproducibility should be small enough to distinguish process movement that matters to assembly. Resolution, fixturing, datum simulation, operator method, temperature, and part cleanliness can all change the result. Measurement disagreement between supplier and customer must be resolved before production release.

Project-Specific Validation Sequence for bolt failure analysis

1. Stage 1 — Evidence loss: prepare an assembly or production sample in which Parts are cleaned or mixed before documentation. Apply or simulate unknown service loading that must be inferred from fracture and joint evidence, then document whether Origin and load direction become uncertain. Release the stage only when the evidence shows that the design or process will Preserve and map the complete assembly.

2. Stage 2 — Fatigue miscalled overload: prepare an assembly or production sample in which Only the final ligament is examined. Apply or simulate unknown service loading that must be inferred from fracture and joint evidence, then document whether Corrective action addresses nominal strength, not cyclic cause. Release the stage only when the evidence shows that the design or process will Review the whole fracture and joint.

3. Stage 3 — Corrosion misclassified: prepare an assembly or production sample in which Post-fracture rust is confused with pre-existing attack. Apply or simulate unknown service loading that must be inferred from fracture and joint evidence, then document whether Timing of damage is misread. Release the stage only when the evidence shows that the design or process will Compare protected and exposed surfaces.

4. Stage 4 — Lot link missing: prepare an assembly or production sample in which Material and process records cannot be recovered. Apply or simulate unknown service loading that must be inferred from fracture and joint evidence, then document whether Manufacturing hypotheses cannot be tested. Release the stage only when the evidence shows that the design or process will Maintain genealogy.

5. Stage 5 — Companion evidence ignored: prepare an assembly or production sample in which Only the broken bolt is submitted. Apply or simulate unknown service loading that must be inferred from fracture and joint evidence, then document whether Load redistribution and seating clues are lost. Release the stage only when the evidence shows that the design or process will Inspect neighboring parts and interfaces.

This sequence should use the selected size, actual mating components, production surface state, and the environmental condition described as handling damage, corrosion, fretting, contamination, and incomplete records. It is not a substitute for required project standards; it is the mechanism map used to choose the correct verified methods. Acceptance values remain project-specific wherever the supplied appendix is silent.

The manufacturing and inspection layers must be connected. A forming simulation predicts risk but does not release product; sectioning proves selected samples but does not screen an entire lot; process monitoring detects signal changes but requires defect correlation; optical and eddy-current sorting each have limited detection mechanisms. The control plan should combine them only where each layer has a defined question and a validated boundary.

These distinctions also prevent invalid transfer of technology claims. Thread rolling after heat treatment, induction hardening, multi-station cold forming, SPC, optical sorting, and eddy-current screening can all be useful, but none automatically applies to every 904L hex bolt. The selected process must be compatible with the material, geometry, required performance, and inspection evidence for the actual project.

Common Failures and Mechanism-Based Root Causes

Verify all parameters against current test reports and applicable standards before use in specifications.

When a fractured bolt submitted without its mating parts, installation record, or preserved fracture surface, I would preserve the assembly before cleaning or disassembly. Bearing marks, thread position, fretting, corrosion deposits, fracture orientation, tool records, and neighboring fastener condition can distinguish the initiating mechanism from the final overload. A replacement with a larger or nominally stronger bolt may shift the damage elsewhere if the true cause is misalignment, prying, settlement, galling, or an unverified mating thread.

Root cause should be written as a physical chain. “Poor quality” is not enough; “a folded surface created during preforming remained at the under-head transition and initiated a cyclic crack after joint separation introduced bending” is testable. The evidence plan can then confirm or reject each link in the chain.

Engineering Specification Checklist

Load and Geometry Definition

• Model unknown service loading that must be inferred from fracture and joint evidence through the real stack used in renewable-energy, automotive, and infrastructure investigations.

• Select one geometry within M3–M160 and define every functional datum, transition, thread, and contact face.

• Require current finished-lot evidence for stainless steel 904L; do not accept a generic stainless description.

• Set project values for strength, proof behavior, hardness, fatigue, stripping, and deformation because the appendix supplies none.

Controls Derived From the Failure Review

• Evidence loss: verify whether Parts are cleaned or mixed before documentation; require the production or design control to Preserve and map the complete assembly.

• Fatigue miscalled overload: verify whether Only the final ligament is examined; require the production or design control to Review the whole fracture and joint.

• Corrosion misclassified: verify whether Post-fracture rust is confused with pre-existing attack; require the production or design control to Compare protected and exposed surfaces.

• Lot link missing: verify whether Material and process records cannot be recovered; require the production or design control to Maintain genealogy.

• Companion evidence ignored: verify whether Only the broken bolt is submitted; require the production or design control to Inspect neighboring parts and interfaces.

Installation and Service Evidence

• Reproduce the actual mating thread, bearing surface, lubricant state, speed, and joint stack during installation validation.

• Test the effect of handling damage, corrosion, fretting, contamination, and incomplete records instead of assigning durability from the alloy name.

• Define an as-installed baseline, inspection access, interval logic, reuse decision, and response to a failed member of the joint.

Document Control

• Name the exact DIN, ANSI, or GB document and revision, or release a complete non-standard drawing.

• Check Quality Management System certificate LY203E5074Q, issued by Shanghai Liyang Certification Co., Ltd. for the current site, scope, status, and referenced management-system standard.

• Keep all unverified numeric properties out of the specification until a current report is approved.

Share your project parameters for a technical review.

Evaluating Manufacturer Engineering Capability

Ningbo yi teng construction machinery CO,LTD states that it controls raw materials and product quality and offers stainless steel 904L hex bolt in M3–M160 and non-standard forms; the supplied certification is Quality Management System certificate LY203E5074Q, issued by Shanghai Liyang Certification Co., Ltd. The current product page should be checked for the selected drawing, test reports, and exact execution-standard reference before specification.

A credible engineering review separates design responsibility from manufacturing evidence. The designer defines load, environment, joint geometry, and acceptance intent; the manufacturer demonstrates that its route can repeatedly achieve the controlled characteristics. Any assumption between those two roles should be made explicit before production.

I also check whether inspection methods match the defect mechanism. Optical sorting cannot validate internal grain flow, and a hardness reading cannot prove dimensional conformity. Multiple methods should be combined only where each has a defined purpose and verified detection boundary.

For bolt failure analysis, the audit should follow one real lot. Select a finished container and trace backward through release, inspection, process settings, tool identity, material receipt, and drawing approval. Then select one recorded process alarm or nonconformance and trace forward through containment, correction, verification, and disposition. That two-direction review tests whether the system works under normal and abnormal conditions.

Frequently Asked Questions About bolt failure analysis

What evidence should be preserved before removing a failed bolt?

Start with the physical possibility of Parts are cleaned or mixed before documentation. In renewable-energy, automotive, and infrastructure investigations, a valid answer requires a trial or calculation that reproduces unknown service loading that must be inferred from fracture and joint evidence, followed by inspection of the feature linked to Evidence loss. The supplied product facts contain no numeric limit for this decision.

How does a final overload zone differ from the root cause?

Use the exact controlled drawing and name the applicable DIN, ANSI, GB, or approved non-standard requirement. The concern is that Only the final ligament is examined, which means an isolated catalogue value or generic gauge result cannot settle the question. Evidence should demonstrate how to Review the whole fracture and joint.

Why must mating parts accompany the fracture sample?

Look for the initiating evidence before interpreting the final symptom. If Post-fracture rust is confused with pre-existing attack, the expected engineering consequence is Timing of damage is misread. Material, process, installation, and lot records should be compared with physical witness marks before corrective action is selected.

Which records are needed to test a manufacturing-defect hypothesis?

Treat the condition as a defined edge case. The stated M3–M160 range and 904L material do not establish performance when Material and process records cannot be recovered. The drawing and validation plan must show how the design will Maintain genealogy under handling damage, corrosion, fretting, contamination, and incomplete records.

Submit the controlled drawing, joint stack, mating-thread details, service loads, environment, and installation method for an engineering specification review.
