Non-Standard bolt Drawings: Datums, Tolerances, and Assembly Fit

In failure reviews for custom machinery and infrastructure projects, I often see a Custom Bolt that meets isolated dimensions but fails assembly because datum selection and accumulated tolerance reduce seating contact or thread engagement. The final damage may look like a simple broken fastener, but the engineering sequence begins earlier—with material identity, joint geometry, manufacturing integrity, installation behavior, or a changing service environment. This article develops non-standard bolt drawing from that mechanism rather than from marketing claims.

The verified product data are deliberately narrow: stainless steel 904L Hex bolt, M3–M160, non-standard capability, and execution to DIN, ANSI, GB, or an approved non-standard drawing. No strength class, proof load, tensile value, hardness, torque coefficient, fatigue limit, corrosion-life value, coating, tolerance set, or exact standard number is supplied. Verify every missing parameter against the manufacturer's current test report before specification.

How non-standard bolt drawing Controls the Load Path

Thermal movement alters the elastic balance whenever the bolt and clamped stack have different expansion behavior or temperature gradients. Heating can increase or decrease clamp force depending on relative expansion and stiffness; cooling can reverse the direction. Repeated cycles can combine with embedment, interface creep, or localized yielding to create progressive preload loss.

Environmental exposure also changes mechanics indirectly. Corrosion products can lock threads, deposits can create false seating, and crevice attack can reduce the load-bearing section below a shielded interface. A corrosion-resistant alloy choice is useful only when material identity, joint geometry, stress, temperature, contaminants, and maintenance access are reviewed together.

In the present case, the governing service action is project-specific tension and bending through a geometry unlike a catalogue fastener. I would map that action from the clamped members through the bearing face, head-to-shank transition, shank, engaged threads, and mating component. The map should identify where contact can open, where slip can begin, and where local bending or stress concentration appears. That exercise determines which dimensions and defects are truly critical.

1. Define the unloaded geometry. Record gaps, contact faces, thread position, effective engagement, and alignment.

2. Define installation. State how clamp force is created, measured, and retained without assuming torque equals preload.

3. Apply service actions. Include project-specific tension and bending through a geometry unlike a catalogue fastener and any redistribution among neighboring fasteners.

4. Evaluate degradation. Consider drawing revision, gauge correlation, secondary machining, and stack-up variation as changes to mechanics, material condition, and inspectability.

5. Link evidence to decisions. Assign a drawing control or test to every credible failure mechanism.

Quality Management System certificate LY203E5074Q, issued by Shanghai Liyang Certification Co., Ltd. is the only supplied certification evidence. It indicates certification of a quality management system; current validity, site, scope, and the management-system standard referenced by the certificate must be verified before the document is used in a technical file.

Critical Features and Engineering Functions

The relevant “components” include geometric zones and mating interfaces because a bolt cannot be validated in isolation. For custom machinery and infrastructure projects, the critical set is determined by the route through which project-specific tension and bending through a geometry unlike a catalogue fastener enters the assembly. The table separates verified information from project definitions so an engineer can see where evidence is still missing.

Verify all parameters against current test reports and applicable standards before use in specifications.

A nominal material and diameter do not resolve transition geometry, thread tolerance, bearing-face relationship, or mating-thread behavior. Those features should be controlled on one drawing hierarchy with clear precedence. When a standard family is invoked, any non-standard departure must be visible rather than hidden in a general note.

Performance Parameters and Verification Evidence

I use an evidence matrix rather than a generic inspection list. Each row must state the characteristic, why it matters to non-standard bolt drawing, the production stage that creates it, the verification method, acceptance rule, sampling or screening frequency, reaction plan, and retained record. Values absent from the appendix remain open; they must not be completed from memory or from another fastener grade.

Verify all parameters against current test reports and applicable standards before use in specifications.

DIN, ANSI, and GB are standard families, not complete product definitions. The engineer must identify the exact document, revision, product style, thread system, tolerance class, mechanical-property requirement, and test method actually intended. An approved non-standard drawing must carry those requirements itself. “Equivalent” should not be accepted without a documented comparison of every functionally relevant clause.

For non-standard bolt drawing, acceptance ranges should be derived from the validated load path and assembly. If the project requires preload, fatigue, corrosion, stripPing, hardness, case depth, optical resolution, eddy-current limits, or capability targets, those numbers require current evidence. The supplied material and dimensional range cannot substitute for them.

Converting Functional Intent Into Inspectable Geometry

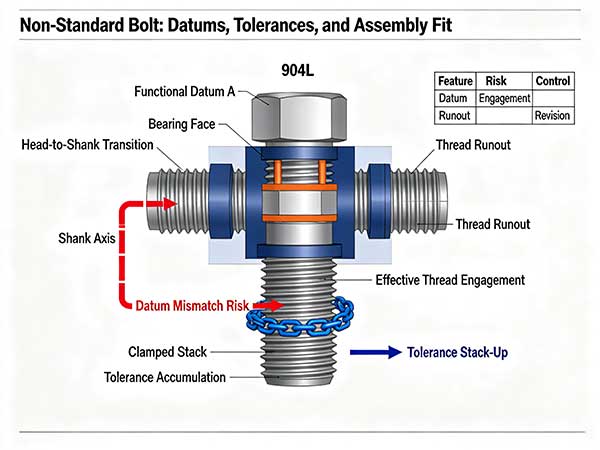

A non-standard drawing should begin with the functional interfaces: bearing face, shank location, thread engagement, drive access, and transition clearances. Datums must reproduce those interfaces during inspection. If a head dimension is measured from a convenient but functionally unrelated surface, a compliant report may still miss assembly misalignment.

Tolerance chains should be calculated across the complete joint. Grip length, washer thickness, member stack, thread start, runout, chamfer, and internal-thread depth determine effective engagement. The verified M3–M160 range does not guarantee feasibility for every length and geometry combination; forming, handling, straightness, and inspection access require review.

Drawing notes must name the exact DIN, ANSI, or GB document and revision where used. Any departure should be explicit. “Non-standard” is not an acceptance criterion; it means the controlled drawing carries the requirements that a standard would otherwise define.

Datum mismatch as a design condition. In custom machinery and infrastructure projects, the initiating mechanism is Inspection setup does not represent assembly interfaces. I would reproduce project-specific tension and bending through a geometry unlike a catalogue fastener while holding the mating geometry and installation state constant, then examine the feature before and after loading. The engineering consequence is Reported dimensions do not predict fit. A useful validation record must show why the proposed control—Use function-based datums—interrupts that physical chain rather than merely detecting the final damage.

Evidence needed for Tolerance stack loss. The investigation should search specifically for evidence of Individually acceptable dimensions accumulate unfavorably. Relevant observations may include asymmetric contact, dimensional movement, surface transfer, a localized fracture origin, or a process record that changed before the affected lot. Because Engagement or seating falls below design intent, acceptance should be based on a project-defined functional test and a feature-level inspection. The preventive requirement is to Calculate worst-case and statistical stack as appropriate.

Boundary case: Uncontrolled runout. This mode becomes important when normal production or service variation moves the assembly toward Thread termination is omitted from the drawing. The review should test the least favorable credible combination of geometry, material state, friction, and drawing revision, gauge correlation, secondary machining, and stack-up variation. If the mechanism is active, A stress concentration or interference occurs. The specification should therefore require evidence to Define runout and transition and should define containment when that evidence fails.

Inspection logic for Revision mix. Final visual appearance alone cannot confirm whether Production and inspection use different drawing issues. I would select an inspection method that observes the initiating feature, a process signal that identifies when it can be created, and a lot record that limits exposure. The reason is direct: Parts are accepted to obsolete requirements. The control plan should state how to Control revision across all records, who reacts, and which product remains on hold.

Field interpretation of Uninspectable feature. When the assembly is returned from service, the analyst should compare the damaged part with unused parts from the same lot and with neighboring fasteners. The working hypothesis is Tolerance is tighter than method access or gauge capability; the expected consequence is Results become inconsistent. Installation records, contact marks, fracture location, material evidence, and process genealogy should either support or reject that hypothesis. Corrective action must Align tolerance with verified measurement capability.

Thread rolling displaces material between dies and can create a smooth work-hardened surface with favorable grain flow. The outcome depends on blank diameter, die match, penetration, alignment, lubrication, material state, rolling speed, and tool wear. Incorrect blank size can overfill the crest or leave incomplete flanks; misalignment can produce lead error and uneven flank contact.

If rolling is proposed after heat treatment for a high-strength part, hardness and remaining ductility require explicit verification. Beneficial root compression is possible, but hard material, damaged dies, excessive penetration, surface decarburization from an earlier operation, or poor lubrication can generate cracks. That process claim cannot be transferred automatically to the verified 904L product.

Traceability should connect finished containers to raw material, drawing revision, machine, tool set, operator or program, secondary-operation lot, inspection equipment, time window, and release record. A label that identifies only the shipping date is not enough for mechanism-based containment. The required granularity should reflect the consequence of failure and the speed at which process conditions can change.

Change control completes the loop. A different wire source, lubricant, die repair, thread sequence, heat-treatment route, cleaning chemistry, camera algorithm, gauge, or packaging method may affect performance. The manufacturer should define which changes require notification, first-article evidence, renewed capability study, or functional revalidation.

Project-Specific Validation Sequence for non-standard bolt drawing

1. Stage 1 — Datum mismatch: prepare an assembly or production sample in which Inspection setup does not represent assembly interfaces. Apply or simulate project-specific tension and bending through a geometry unlike a catalogue fastener, then document whether Reported dimensions do not predict fit. Release the stage only when the evidence shows that the design or process will Use function-based datums.

2. Stage 2 — Tolerance stack loss: prepare an assembly or production sample in which Individually acceptable dimensions accumulate unfavorably. Apply or simulate project-specific tension and bending through a geometry unlike a catalogue fastener, then document whether Engagement or seating falls below design intent. Release the stage only when the evidence shows that the design or process will Calculate worst-case and statistical stack as appropriate.

3. Stage 3 — Uncontrolled runout: prepare an assembly or production sample in which Thread termination is omitted from the drawing. Apply or simulate project-specific tension and bending through a geometry unlike a catalogue fastener, then document whether A stress concentration or interference occurs. Release the stage only when the evidence shows that the design or process will Define runout and transition.

4. Stage 4 — Revision mix: prepare an assembly or production sample in which Production and inspection use different drawing issues. Apply or simulate project-specific tension and bending through a geometry unlike a catalogue fastener, then document whether Parts are accepted to obsolete requirements. Release the stage only when the evidence shows that the design or process will Control revision across all records.

5. Stage 5 — Uninspectable feature: prepare an assembly or production sample in which Tolerance is tighter than method access or gauge capability. Apply or simulate project-specific tension and bending through a geometry unlike a catalogue fastener, then document whether Results become inconsistent. Release the stage only when the evidence shows that the design or process will Align tolerance with verified measurement capability.

This sequence should use the selected size, actual mating components, production surface state, and the environmental condition described as drawing revision, gauge correlation, secondary machining, and stack-up variation. It is not a substitute for required project standards; it is the mechanism map used to choose the correct verified methods. Acceptance values remain project-specific wherever the supplied appendix is silent.

The manufacturing and inspection layers must be connected. A forming simulation predicts risk but does not release product; sectioning proves selected samples but does not screen an entire lot; process monitoring detects signal changes but requires defect correlation; optical and eddy-current sorting each have limited detection mechanisms. The control plan should combine them only where each layer has a defined question and a validated boundary.

These distinctions also prevent invalid transfer of technology claims. Thread rolling after heat treatment, induction hardening, multi-station cold forming, SPC, optical sorting, and eddy-current screening can all be useful, but none automatically applies to every 904L hex bolt. The selected process must be compatible with the material, geometry, required performance, and inspection evidence for the actual project.

Common Failures and Mechanism-Based Root Causes

Verify all parameters against current test reports and applicable standards before use in specifications.

When a custom bolt that meets isolated dimensions but fails assembly because datum selection and accumulated tolerance reduce seating contact or thread engagement, I would preserve the assembly before cleaning or disassembly. Bearing marks, thread position, fretting, corrosion deposits, fracture orientation, tool records, and neighboring fastener condition can distinguish the initiating mechanism from the final overload. A replacement with a larger or nominally stronger bolt may shift the damage elsewhere if the true cause is misalignment, prying, settlement, galling, or an unverified mating thread.

Root cause should be written as a physical chain. “Poor quality” is not enough; “a folded surface created during preforming remained at the under-head transition and initiated a cyclic crack after joint separation introduced bending” is testable. The evidence plan can then confirm or reject each link in the chain.

Engineering Specification Checklist

Load and Geometry Definition

• Model project-specific tension and bending through a geometry unlike a catalogue fastener through the real stack used in custom machinery and infrastructure projects.

• Select one geometry within M3–M160 and define every functional datum, transition, thread, and contact face.

• Require current finished-lot evidence for stainless steel 904L; do not accept a generic stainless description.

• Set project values for strength, proof behavior, hardness, fatigue, stripping, and deformation because the appendix supplies none.

Controls Derived From the Failure Review

• Datum mismatch: verify whether Inspection setup does not represent assembly interfaces; require the production or design control to Use function-based datums.

• Tolerance stack loss: verify whether Individually acceptable dimensions accumulate unfavorably; require the production or design control to Calculate worst-case and statistical stack as appropriate.

• Uncontrolled runout: verify whether Thread termination is omitted from the drawing; require the production or design control to Define runout and transition.

• Revision mix: verify whether Production and inspection use different drawing issues; require the production or design control to Control revision across all records.

• Uninspectable feature: verify whether Tolerance is tighter than method access or gauge capability; require the production or design control to Align tolerance with verified measurement capability.

Installation and Service Evidence

• Reproduce the actual mating thread, bearing surface, lubricant state, speed, and joint stack during installation validation.

• Test the effect of drawing revision, gauge correlation, secondary machining, and stack-up variation instead of assigning durability from the alloy name.

• Define an as-installed baseline, inspection access, interval logic, reuse decision, and response to a failed member of the joint.

Document Control

• Name the exact DIN, ANSI, or GB document and revision, or release a complete non-standard drawing.

• Check Quality Management System certificate LY203E5074Q, issued by Shanghai Liyang Certification Co., Ltd. for the current site, scope, status, and referenced management-system standard.

• Keep all unverified numeric properties out of the specification until a current report is approved.

Share your project parameters for a technical review.

Evaluating Manufacturer Engineering Capability

Ningbo yi teng construction machinery CO,LTD states that it controls raw materials and product quality and offers stainless steel 904L hex bolt in M3–M160 and non-standard forms; the supplied certification is Quality Management System certificate LY203E5074Q, issued by Shanghai Liyang Certification Co., Ltd. The current product page should be checked for the selected drawing, test reports, and exact execution-standard reference before specification.

Manufacturer capability should be assessed with representative records. I would review a controlled process flow, first-article report, material evidence, gauge studies for critical characteristics, control charts with actual reaction examples, sorting validation, and a closed corrective-action case. These records show whether the system responds to variation rather than merely documenting it.
