Stainless bolt Galling: Friction, Surface Damage, and Preload

In failure reviews for stainless mechanical assemblies, I often see a stainless threaded pair that seizes before full seating and produces a high torque reading with inadequate clamp force. The final damage may look like a simple broken fastener, but the engineering sequence begins earlier—with material identity, joint geometry, manufacturing integrity, installation behavior, or a changing service environment. This article develops stainless bolt galling from that mechanism rather than from marketing claims.

The verified product data are deliberately narrow: stainless steel 904L Hex bolt, M3–M160, non-standard capability, and execution to DIN, ANSI, GB, or an approved non-standard drawing. No strength class, proof load, tensile value, hardness, torque coefficient, fatigue limit, corrosion-life value, coating, tolerance set, or exact standard number is supplied. Verify every missing parameter against the manufacturer's current test report before specification.

How stainless bolt galling Controls the Load Path

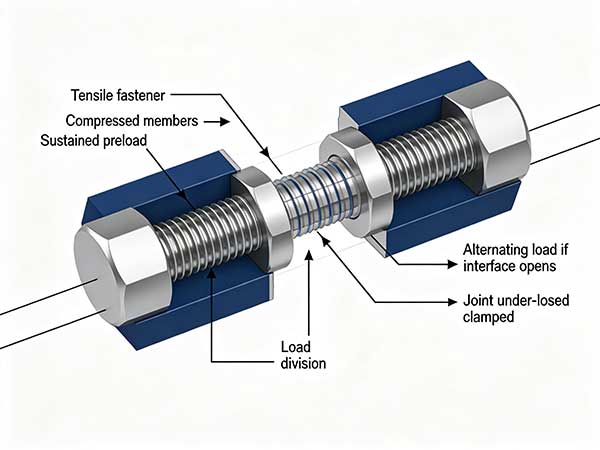

I model the joint as two elastic systems: a tensile fastener and compressed members. Tightening moves both systems away from their unloaded state. A later separating force first releases member compression and only partly increases fastener tension while the interface stays closed. If the interface opens, that beneficial load division collapses. The bolt then receives a larger alternating load and usually a bending component that was absent from the nominal calculation.

This model explains why nominal diameter is never a complete design input. Grip length, member stiffness, bearing-face compliance, thread engagement, interface coatings, washers, and load eccentricity determine how external force is divided. Any review that treats the fastener as an isolated tensile bar misses the dominant joint mechanics.

In the present case, the governing service action is high flank contact pressure during installation followed by sustained preload. I would map that action from the clamped members through the bearing face, head-to-shank transition, shank, engaged threads, and mating component. The map should identify where contact can open, where slip can begin, and where local bending or stress concentration appears. That exercise determines which dimensions and defects are truly critical.

1. Define the unloaded geometry. Record gaps, contact faces, thread position, effective engagement, and alignment.

2. Define installation. State how clamp force is created, measured, and retained without assuming torque equals preload.

3. Apply service actions. Include high flank contact pressure during installation followed by sustained preload and any redistribution among neighboring fasteners.

4. Evaluate degradation. Consider clean or contaminated threads, installation speed, surface finish, and mating-material similarity as changes to mechanics, material condition, and inspectability.

5. Link evidence to decisions. Assign a drawing control or test to every credible failure mechanism.

Quality Management System certificate LY203E5074Q, issued by Shanghai Liyang Certification Co., Ltd. is the only supplied certification evidence. It indicates certification of a quality management system; current validity, site, scope, and the management-system standard referenced by the certificate must be verified before the document is used in a technical file.

Critical Features and Engineering Functions

The relevant “components” include geometric zones and mating interfaces because a bolt cannot be validated in isolation. For stainless mechanical assemblies, the critical set is determined by the route through which high flank contact pressure during installation followed by sustained preload enters the assembly. The table separates verified information from project definitions so an engineer can see where evidence is still missing.

Verify all parameters against current test reports and applicable standards before use in specifications.

A nominal material and diameter do not resolve transition geometry, thread tolerance, bearing-face relationship, or mating-thread behavior. Those features should be controlled on one drawing hierarchy with clear precedence. When a standard family is invoked, any non-standard departure must be visible rather than hidden in a general note.

Performance Parameters and Verification Evidence

I use an evidence matrix rather than a generic inspection list. Each row must state the characteristic, why it matters to stainless bolt galling, the production stage that creates it, the verification method, acceptance rule, sampling or screening frequency, reaction plan, and retained record. Values absent from the appendix remain open; they must not be completed from memory or from another fastener grade.

Verify all parameters against current test reports and applicable standards before use in specifications.

DIN, ANSI, and GB are standard families, not complete product definitions. The engineer must identify the exact document, revision, product style, thread system, tolerance class, mechanical-property requirement, and test method actually intended. An approved non-standard drawing must carry those requirements itself. “Equivalent” should not be accepted without a documented comparison of every functionally relevant clause.

For stainless bolt galling, acceptance ranges should be derived from the validated load path and assembly. If the project requires preload, fatigue, corrosion, stripPing, hardness, case depth, optical resolution, eddy-current limits, or capability targets, those numbers require current evidence. The supplied material and dimensional range cannot substitute for them.

Adhesive Contact and the False-Torque Problem

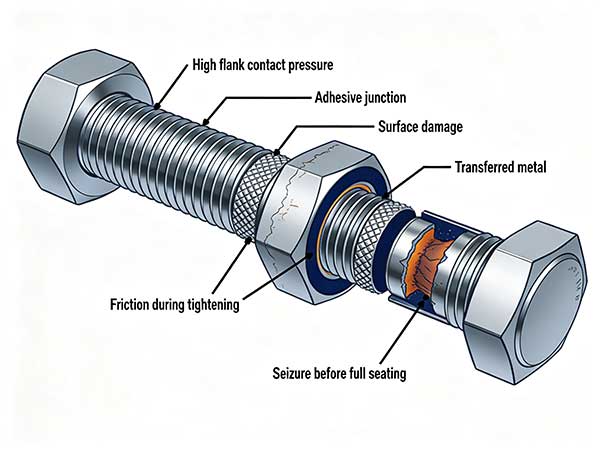

Galling is adhesive damage at contacting asperities. Under high pressure, local junctions form and tear as the threads slide. Similar stainless mating materials, rough or damaged surfaces, contamination, high tightening speed, and an unsuitable lubrication condition can increase risk. The installer may see rising torque and assume preload is increasing even while energy is consumed in surface damage.

Torque–tension validation must use the production bolt, actual mating thread, surface state, lubricant or approved treatment, installation speed, and joint geometry. A value from another alloy or finish is not transferable. The supplied data contain no friction coefficient or torque value, so both remain open.

Prevention and serviceability should be considered together. A process that reaches preload once but destroys the thread during removal may be unacceptable for maintained equipment. Reuse criteria, cleaning, inspection of transferred material, and mating-thread replacement rules should be defined.

Installation seizure as a design condition. In stainless mechanical assemblies, the initiating mechanism is Adhesive junctions grow during thread sliding. I would reproduce high flank contact pressure during installation followed by sustained preload while holding the mating geometry and installation state constant, then examine the feature before and after loading. The engineering consequence is Torque rises without intended preload. A useful validation record must show why the proposed control—Validate material pair, surface, lubrication, and speed—interrupts that physical chain rather than merely detecting the final damage.

Evidence needed for Transferred metal. The investigation should search specifically for evidence of Thread surfaces tear and deposit material. Relevant observations may include asymmetric contact, dimensional movement, surface transfer, a localized fracture origin, or a process record that changed before the affected lot. Because Later assembly becomes rough and unpredictable, acceptance should be based on a project-defined functional test and a feature-level inspection. The preventive requirement is to Inspect both mating threads.

Boundary case: False seating. This mode becomes important when normal production or service variation moves the assembly toward Friction spike is mistaken for bearing-face contact. The review should test the least favorable credible combination of geometry, material state, friction, and clean or contaminated threads, installation speed, surface finish, and mating-material similarity. If the mechanism is active, Joint remains under-clamped. The specification should therefore require evidence to Use a validated preload method and should define containment when that evidence fails.

Inspection logic for Removal failure. Final visual appearance alone cannot confirm whether Service exposure and previous damage lock the threads. I would select an inspection method that observes the initiating feature, a process signal that identifies when it can be created, and a lot record that limits exposure. The reason is direct: Maintenance requires destructive removal. The control plan should state how to Define service and reuse controls, who reacts, and which product remains on hold.

Field interpretation of Lubricant inconsistency. When the assembly is returned from service, the analyst should compare the damaged part with unused parts from the same lot and with neighboring fasteners. The working hypothesis is Application amount or chemistry varies; the expected consequence is Torque–tension scatter widens. Installation records, contact marks, fracture location, material evidence, and process genealogy should either support or reject that hypothesis. Corrective action must Control lubricant identity and application.

Selective induction hardening uses localized electromagnetic heating followed by quenching and tempering. A complete process definition includes coil geometry, coupling distance, frequency, delivered power, heating time or traverse speed, quench timing, quench distribution, temper condition, and part orientation. These variables control the surface-to-core thermal path and therefore the hardness gradient, case shape, distortion, and transition microstructure.

A single surface-hardness reading does not validate the process. A sectioned hardness traverse, declared case-depth criterion, metallography, crack inspection, dimensional comparison, and core-property evidence are needed. Material suitability must be confirmed before induction hardening is specified; no such process or hardness values are supplied for the verified 904L hex bolt.

Eddy-current sorting compares electromagnetic response and can screen some differences in material state, heat-treatment condition, geometry, or discontinuity. It is not a universal crack detector and does not directly report hardness depth. Frequency, coil configuration, lift-off, part temperature, orientation, phase window, amplitude window, and calibration samples determine sensitivity.

Reference parts should represent proven acceptable product and physically characterized reject conditions. Periodic destructive correlation is needed where the signal is used to infer a metallurgical state. Drift, coil wear, mixed geometry, or temperature change can otherwise create false acceptance or excessive rejection.

Project-Specific Validation Sequence for stainless bolt galling

1. Stage 1 — Installation seizure: prepare an assembly or production sample in which Adhesive junctions grow during thread sliding. Apply or simulate high flank contact pressure during installation followed by sustained preload, then document whether Torque rises without intended preload. Release the stage only when the evidence shows that the design or process will Validate material pair, surface, lubrication, and speed.

2. Stage 2 — Transferred metal: prepare an assembly or production sample in which Thread surfaces tear and deposit material. Apply or simulate high flank contact pressure during installation followed by sustained preload, then document whether Later assembly becomes rough and unpredictable. Release the stage only when the evidence shows that the design or process will Inspect both mating threads.

3. Stage 3 — False seating: prepare an assembly or production sample in which Friction spike is mistaken for bearing-face contact. Apply or simulate high flank contact pressure during installation followed by sustained preload, then document whether Joint remains under-clamped. Release the stage only when the evidence shows that the design or process will Use a validated preload method.

4. Stage 4 — Removal failure: prepare an assembly or production sample in which Service exposure and previous damage lock the threads. Apply or simulate high flank contact pressure during installation followed by sustained preload, then document whether Maintenance requires destructive removal. Release the stage only when the evidence shows that the design or process will Define service and reuse controls.

5. Stage 5 — Lubricant inconsistency: prepare an assembly or production sample in which Application amount or chemistry varies. Apply or simulate high flank contact pressure during installation followed by sustained preload, then document whether Torque–tension scatter widens. Release the stage only when the evidence shows that the design or process will Control lubricant identity and application.

This sequence should use the selected size, actual mating components, production surface state, and the environmental condition described as clean or contaminated threads, installation speed, surface finish, and mating-material similarity. It is not a substitute for required project standards; it is the mechanism map used to choose the correct verified methods. Acceptance values remain project-specific wherever the supplied appendix is silent.

The manufacturing and inspection layers must be connected. A forming simulation predicts risk but does not release product; sectioning proves selected samples but does not screen an entire lot; process monitoring detects signal changes but requires defect correlation; optical and eddy-current sorting each have limited detection mechanisms. The control plan should combine them only where each layer has a defined question and a validated boundary.

These distinctions also prevent invalid transfer of technology claims. Thread rolling after heat treatment, induction hardening, multi-station cold forming, SPC, optical sorting, and eddy-current screening can all be useful, but none automatically applies to every 904L hex bolt. The selected process must be compatible with the material, geometry, required performance, and inspection evidence for the actual project.

Common Failures and Mechanism-Based Root Causes

Verify all parameters against current test reports and applicable standards before use in specifications.

When a stainless threaded pair that seizes before full seating and produces a high torque reading with inadequate clamp force, I would preserve the assembly before cleaning or disassembly. Bearing marks, thread position, fretting, corrosion deposits, fracture orientation, tool records, and neighboring fastener condition can distinguish the initiating mechanism from the final overload. A replacement with a larger or nominally stronger bolt may shift the damage elsewhere if the true cause is misalignment, prying, settlement, galling, or an unverified mating thread.

Root cause should be written as a physical chain. “Poor quality” is not enough; “a folded surface created during preforming remained at the under-head transition and initiated a cyclic crack after joint separation introduced bending” is testable. The evidence plan can then confirm or reject each link in the chain.

Engineering Specification Checklist

Load and Geometry Definition

• Model high flank contact pressure during installation followed by sustained preload through the real stack used in stainless mechanical assemblies.

• Select one geometry within M3–M160 and define every functional datum, transition, thread, and contact face.

• Require current finished-lot evidence for stainless steel 904L; do not accept a generic stainless description.

• Set project values for strength, proof behavior, hardness, fatigue, stripping, and deformation because the appendix supplies none.

Controls Derived From the Failure Review

• Installation seizure: verify whether Adhesive junctions grow during thread sliding; require the production or design control to Validate material pair, surface, lubrication, and speed.

• Transferred metal: verify whether Thread surfaces tear and deposit material; require the production or design control to Inspect both mating threads.

• False seating: verify whether Friction spike is mistaken for bearing-face contact; require the production or design control to Use a validated preload method.

• Removal failure: verify whether Service exposure and previous damage lock the threads; require the production or design control to Define service and reuse controls.

• Lubricant inconsistency: verify whether Application amount or chemistry varies; require the production or design control to Control lubricant identity and application.

Installation and Service Evidence

• Reproduce the actual mating thread, bearing surface, lubricant state, speed, and joint stack during installation validation.

• Test the effect of clean or contaminated threads, installation speed, surface finish, and mating-material similarity instead of assigning durability from the alloy name.

• Define an as-installed baseline, inspection access, interval logic, reuse decision, and response to a failed member of the joint.

Document Control

• Name the exact DIN, ANSI, or GB document and revision, or release a complete non-standard drawing.

• Check Quality Management System certificate LY203E5074Q, issued by Shanghai Liyang Certification Co., Ltd. for the current site, scope, status, and referenced management-system standard.

• Keep all unverified numeric properties out of the specification until a current report is approved.

Share your project parameters for a technical review.

Evaluating Manufacturer Engineering Capability

Ningbo yi teng construction machinery CO,LTD states that it controls raw materials and product quality and offers stainless steel 904L hex bolt in M3–M160 and non-standard forms; the supplied certification is Quality Management System certificate LY203E5074Q, issued by Shanghai Liyang Certification Co., Ltd. The current product page should be checked for the selected drawing, test reports, and exact execution-standard reference before specification.

A credible engineering review separates design responsibility from manufacturing evidence. The designer defines load, environment, joint geometry, and acceptance intent; the manufacturer demonstrates that its route can repeatedly achieve the controlled characteristics. Any assumption between those two roles should be made explicit before production.

I also check whether inspection methods match the defect mechanism. Optical sorting cannot validate internal grain flow, and a hardness reading cannot prove dimensional conformity. Multiple methods should be combined only where each has a defined purpose and verified detection boundary.

For stainless bolt galling, the audit should follow one real lot. Select a finished container and trace backward through release, inspection, process settings, tool identity, material receipt, and drawing approval. Then select one recorded process alarm or nonconformance and trace forward through containment, correction, verification, and disposition. That two-direction review tests whether the system works under normal and abnormal conditions.

Frequently Asked Questions About stainless bolt galling

Why can a seized stainless bolt show high torque but low preload?

Start with the physical possibility of Adhesive junctions grow during thread sliding. In stainless mechanical assemblies, a valid answer requires a trial or calculation that reproduces high flank contact pressure during installation followed by sustained preload, followed by inspection of the feature linked to Installation seizure. The supplied product facts contain no numeric limit for this decision.

Which variables must a galling test reproduce?

Use the exact controlled drawing and name the applicable DIN, ANSI, GB, or approved non-standard requirement. The concern is that Thread surfaces tear and deposit material, which means an isolated catalogue value or generic gauge result cannot settle the question. Evidence should demonstrate how to Inspect both mating threads.

Can 904L material identity determine tightening torque?

Look for the initiating evidence before interpreting the final symptom. If Friction spike is mistaken for bearing-face contact, the expected engineering consequence is Joint remains under-clamped. Material, process, installation, and lot records should be compared with physical witness marks before corrective action is selected.

What should a reuse inspection look for after disassembly?

Treat the condition as a defined edge case. The stated M3–M160 range and 904L material do not establish performance when Service exposure and previous damage lock the threads. The drawing and validation plan must show how the design will Define service and reuse controls under clean or contaminated threads, installation speed, surface finish, and mating-material similarity.

Submit the controlled drawing, joint stack, mating-thread details, service loads, environment, and installation method for an engineering specification review.
